HVAC Control Module Connector End View

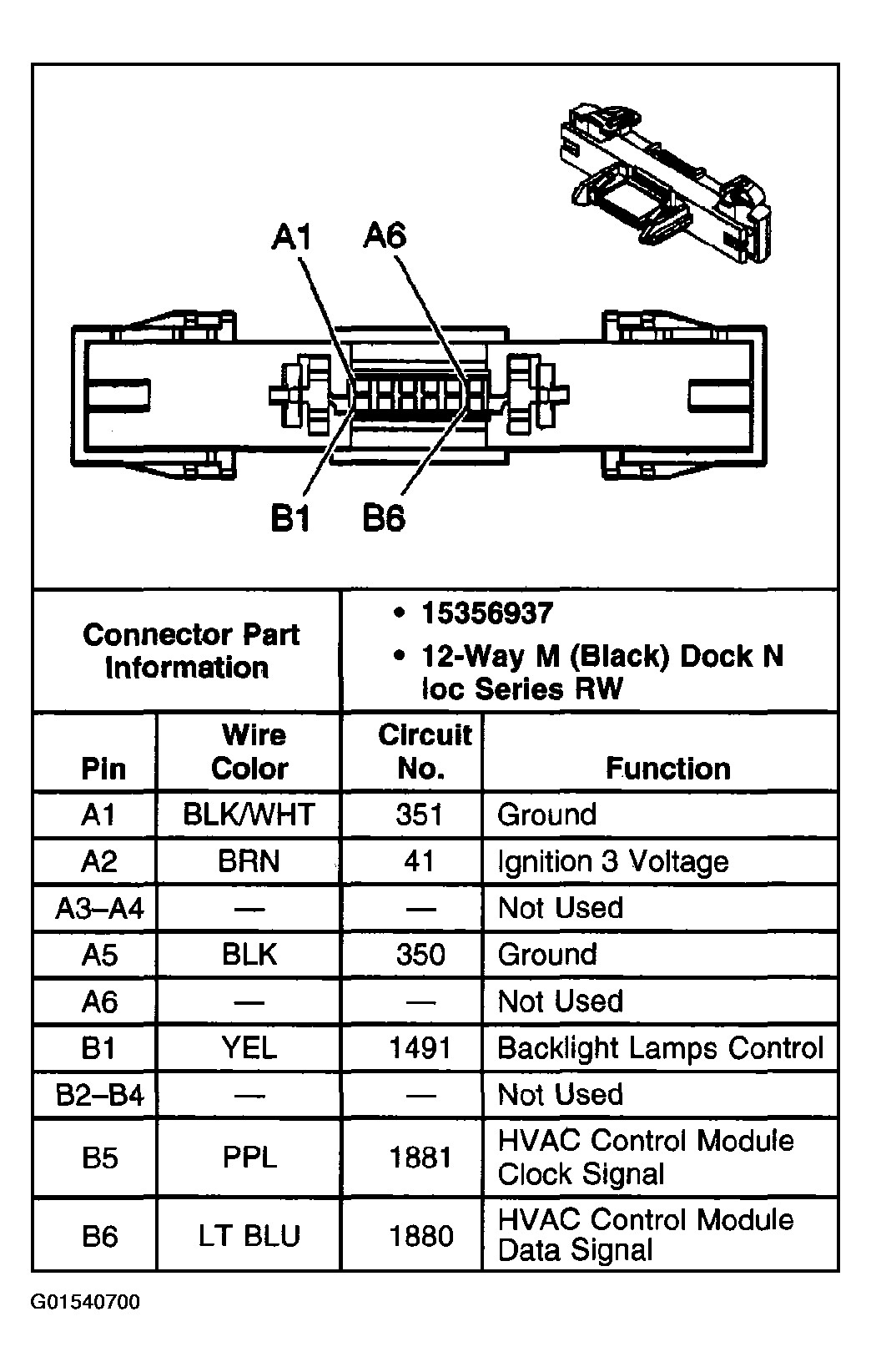

Fig 1: HVAC Control Module (w/CJ2)

G01540700

Courtesy of GENERAL MOTORS CORP.
