Installation Procedure

  1. Install the 3-way catalytic converter pipe hangers.

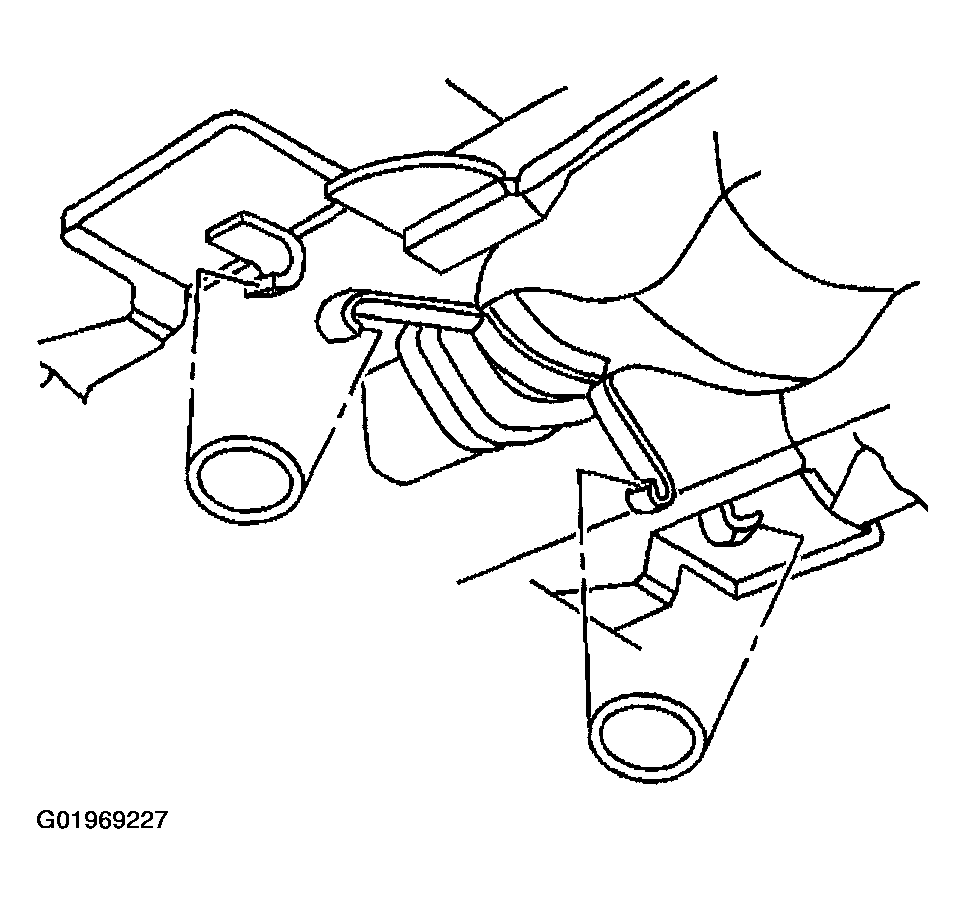

    Fig 1: Installing Catalytic Converter Pipe Hangers
    G01969227Courtesy of GENERAL MOTORS CORP.
  2. Remove the support from the exhaust system and the vehicle.
  3. Inspect the exhaust system for underbody contact.
  4. Lower the vehicle.
