Installation Procedure

  1. Connect the electrical connector from the lighted rearview mirror, if equipped.

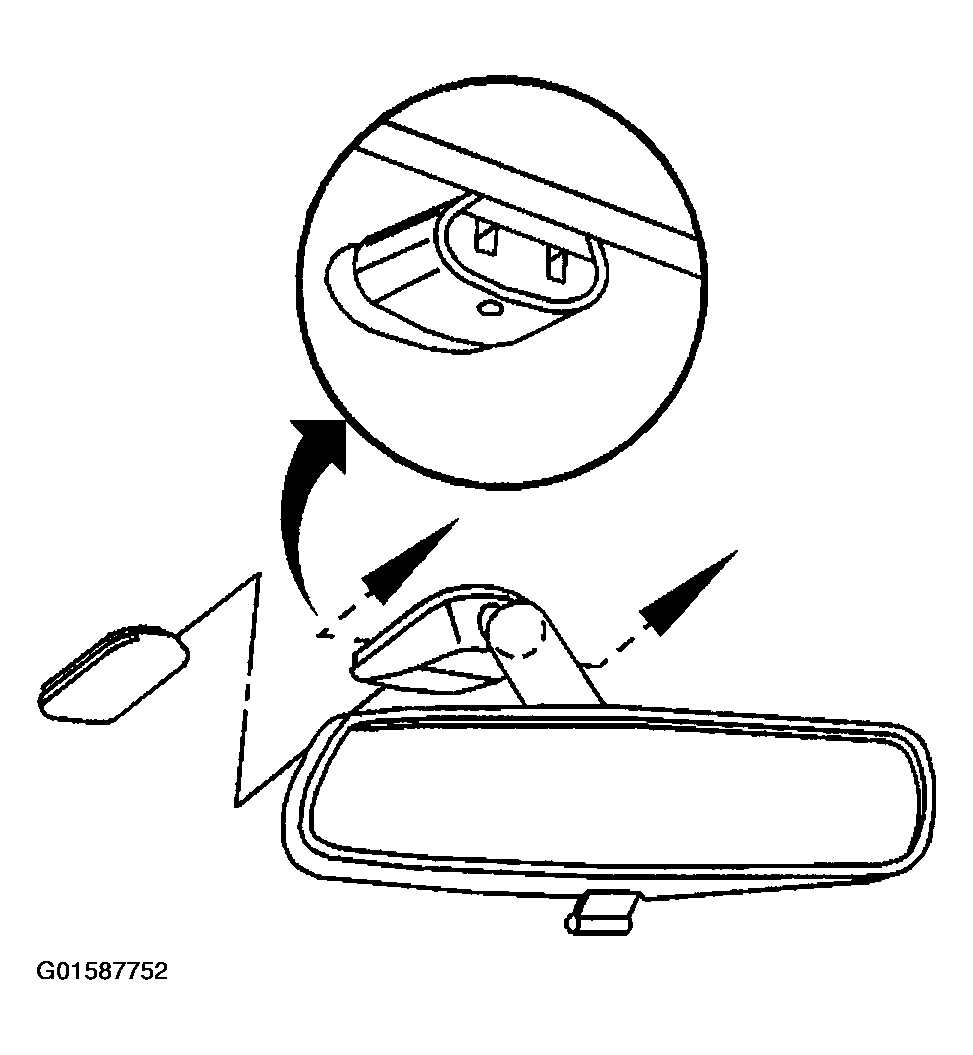

    2. Fig 1: Connecting Electrical Connector
    G01587752Courtesy of GENERAL MOTORS CORP.
  2. Snap the rearview mirror into the rearview mirror support. Ensure that the mirror is fully seated.
  3. Install the wire harness cover to the lighted rearview mirror, if equipped.

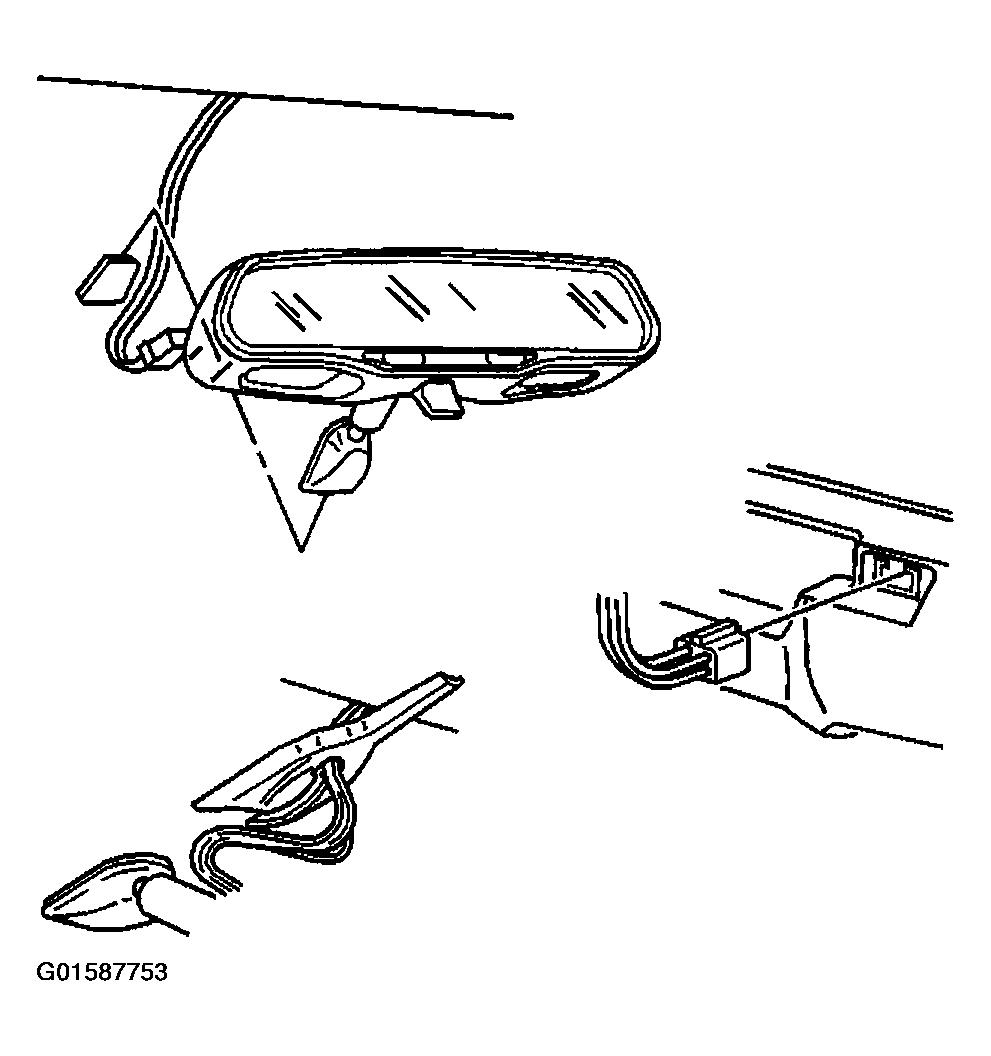

    4. Fig 2: Installing Rearview Mirror Into Rearview Mirror Support
    G01587753Courtesy of GENERAL MOTORS CORP.
