ABS Schematics

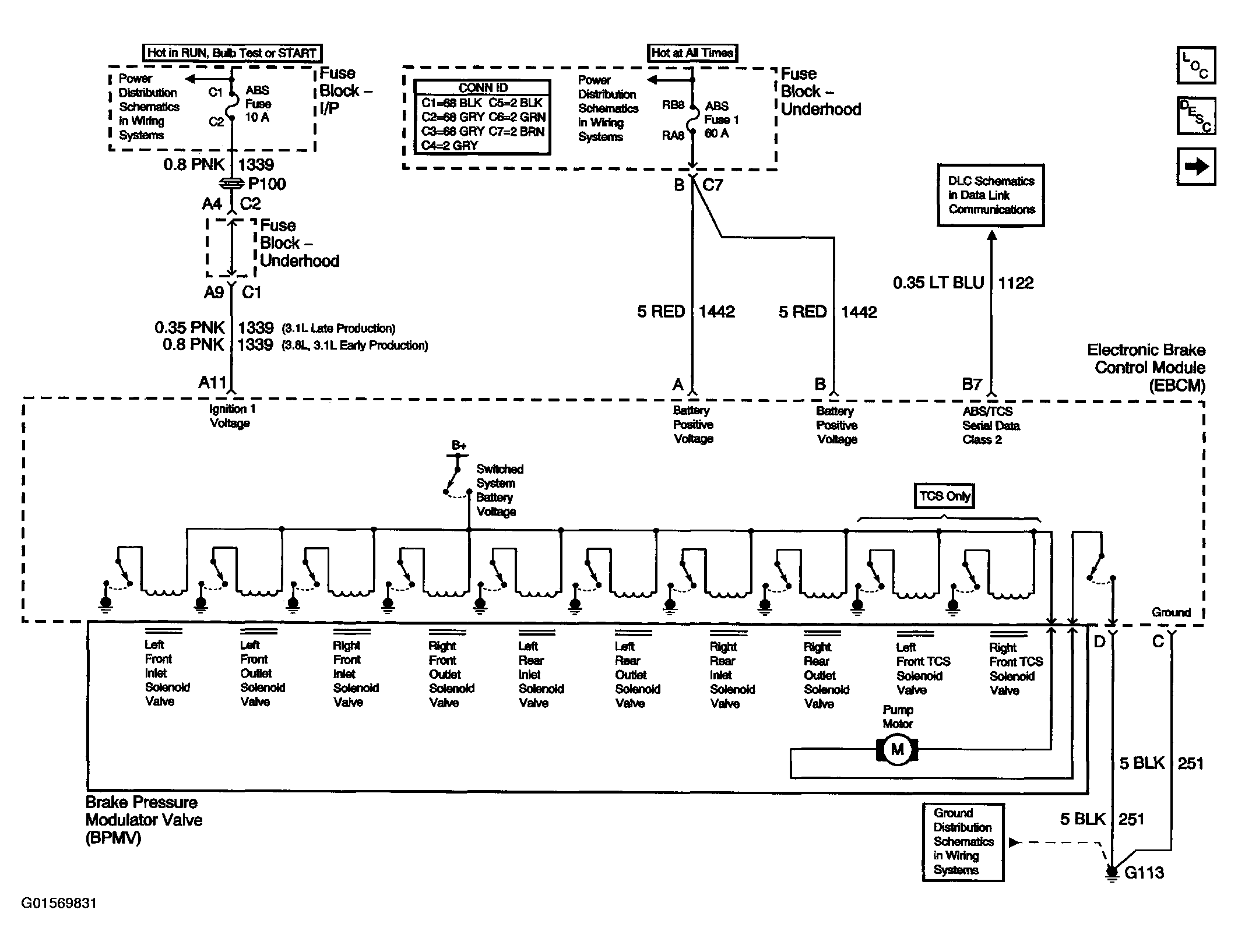

Fig 1: ABS Schematics (Power, Ground, and Serial Data)
G01569831Courtesy of GENERAL MOTORS CORP.

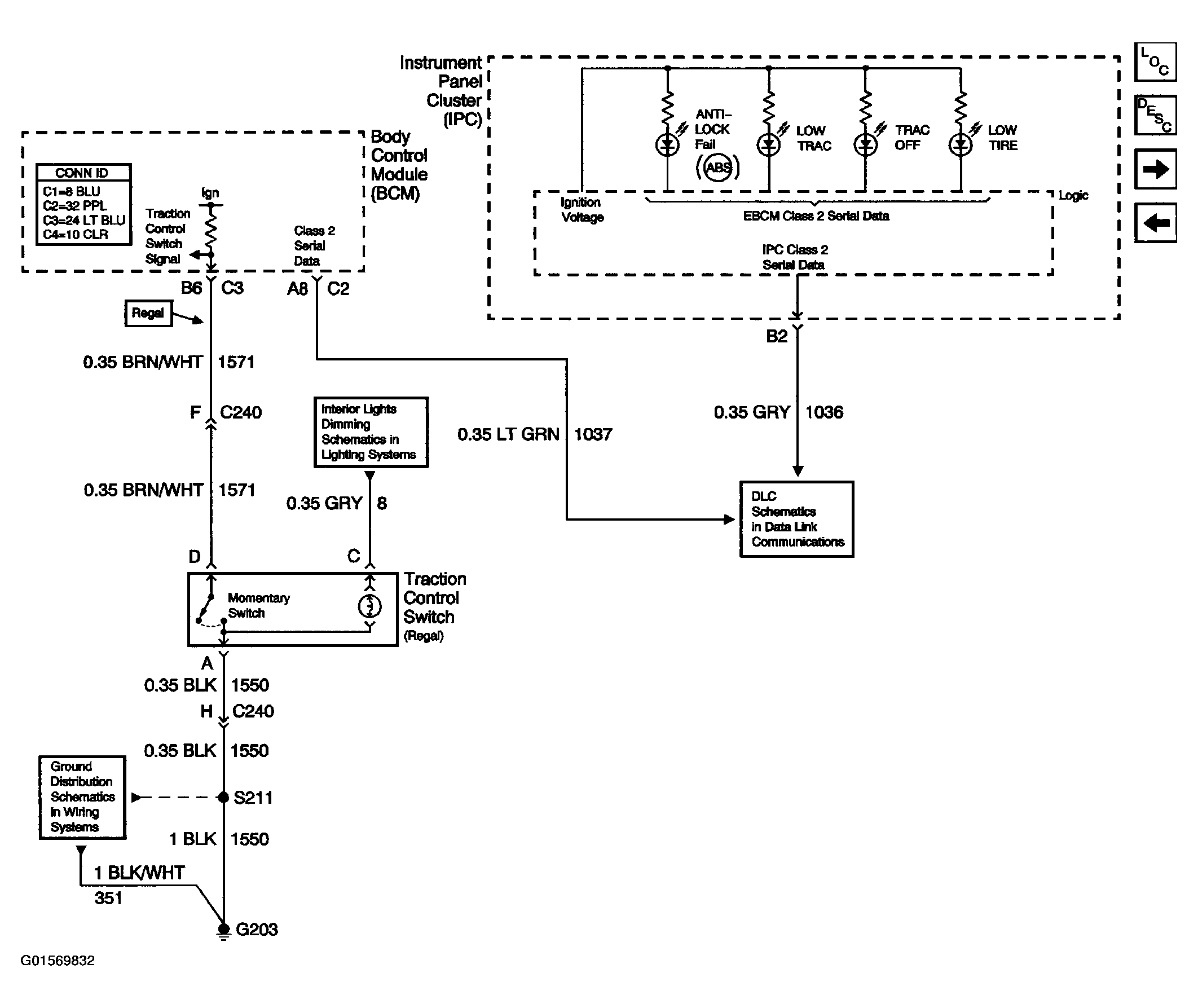

Fig 2: ABS Schematics (Indicators)
G01569832Courtesy of GENERAL MOTORS CORP.

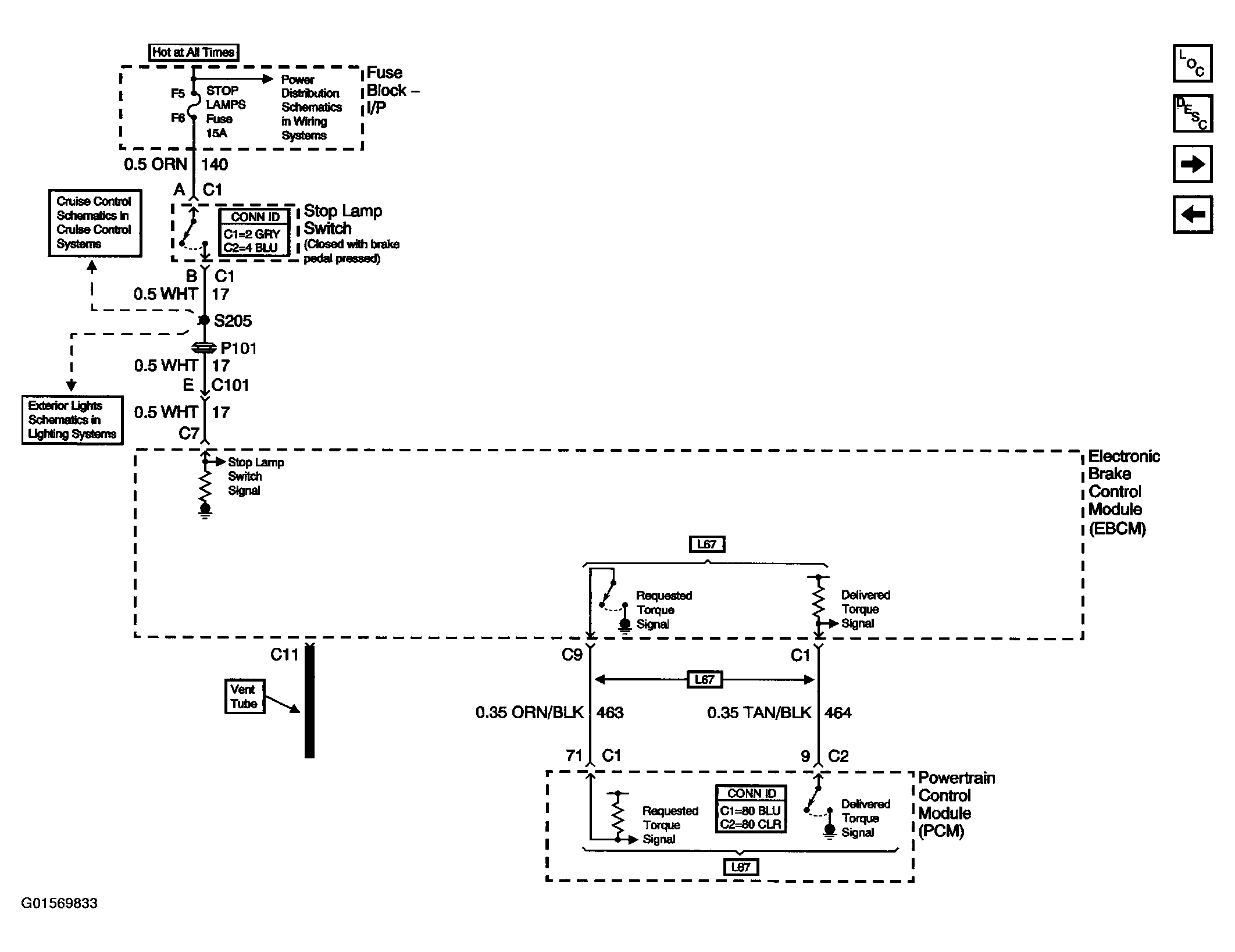

Fig 3: ABS Schematics (Stop Lamp and Torque Signals)
G01569833Courtesy of GENERAL MOTORS CORP.

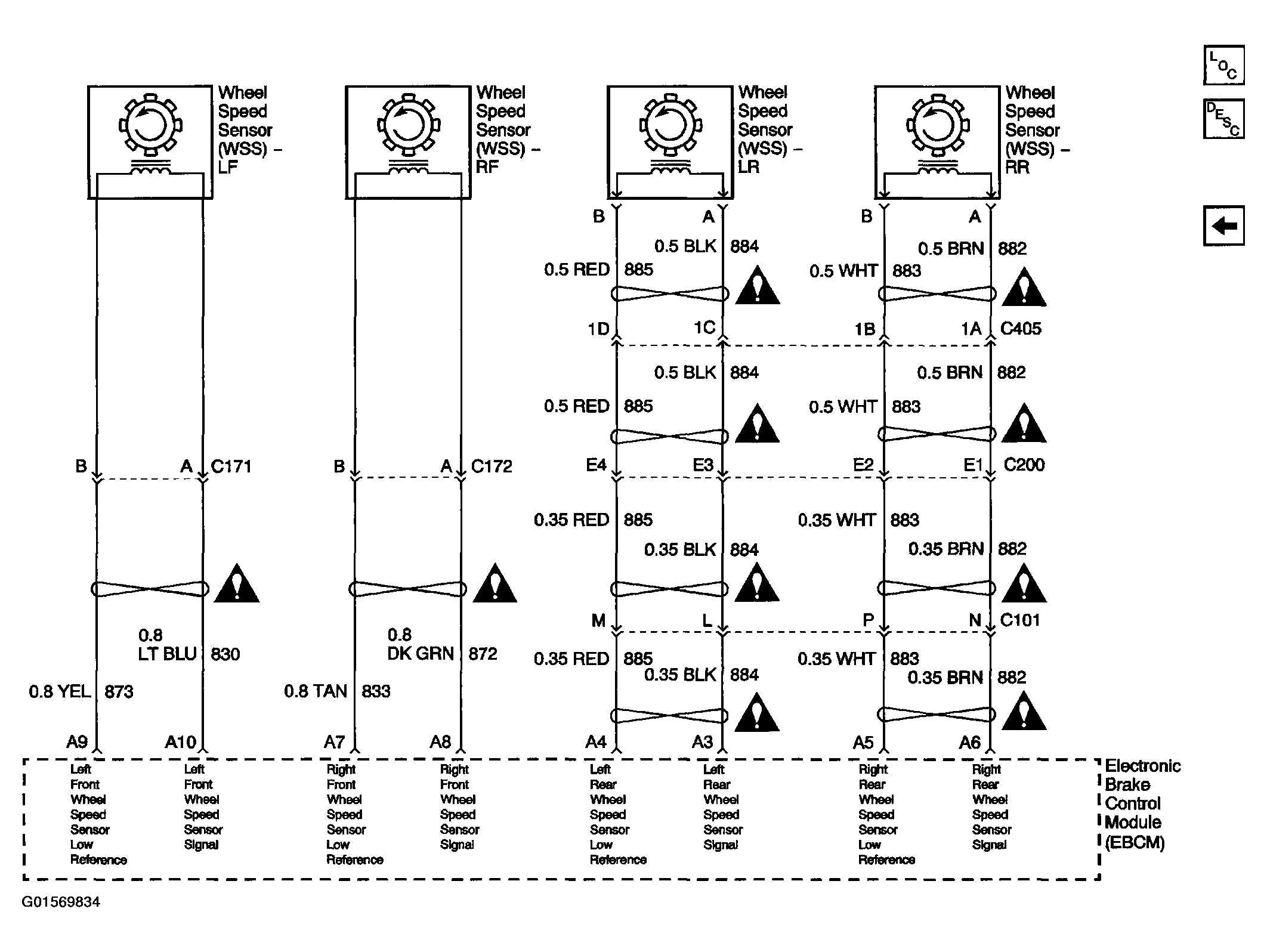

Fig 4: ABS Schematics (Wheel Speed Sensors)
G01569834Courtesy of GENERAL MOTORS CORP.
