Installation Procedure

  1. Install the hub and bearing assembly (1) to the vehicle. Refer to Wheel Bearing/Hub Replacement - Rear (Disc Brakes) or Wheel Bearing/Hub Replacement - Rear (Drum Brakes) in Rear.

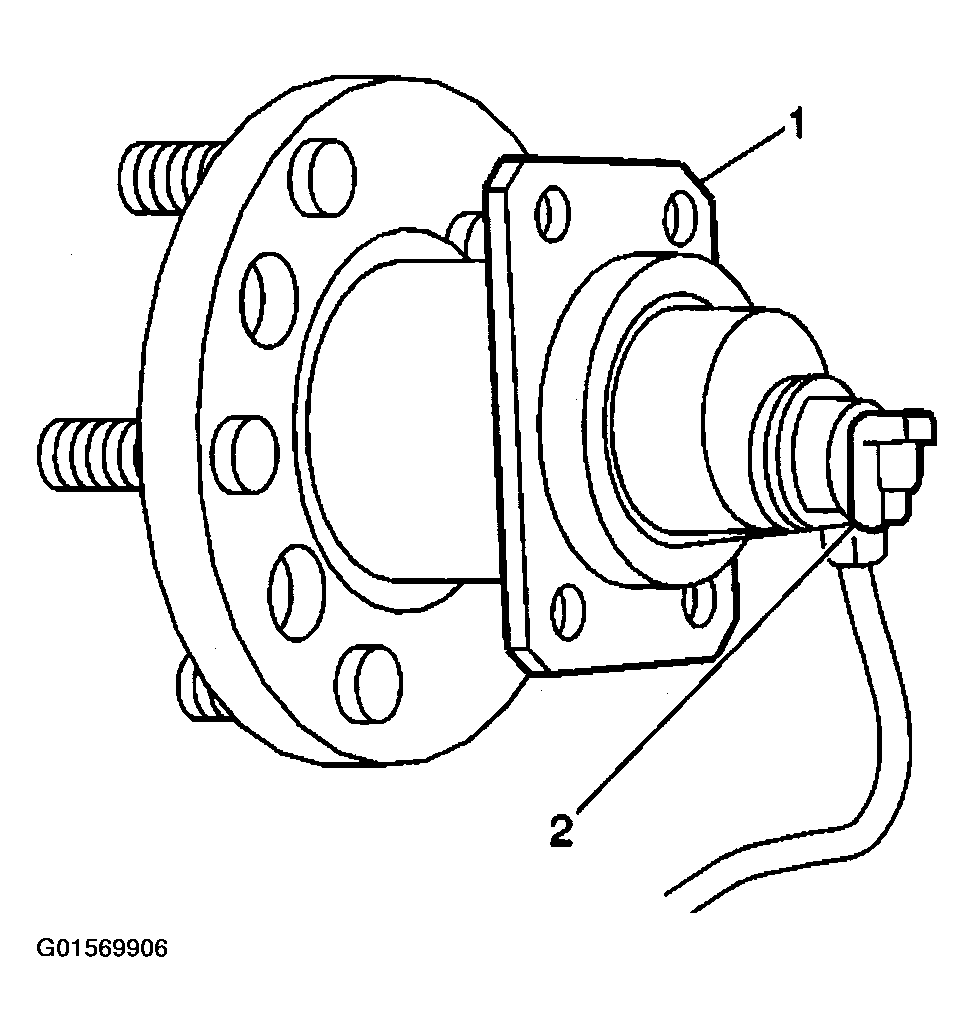

    Fig 1: View Of Hub And Bearing Assembly
    G01569906Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the rear wheel speed sensor.

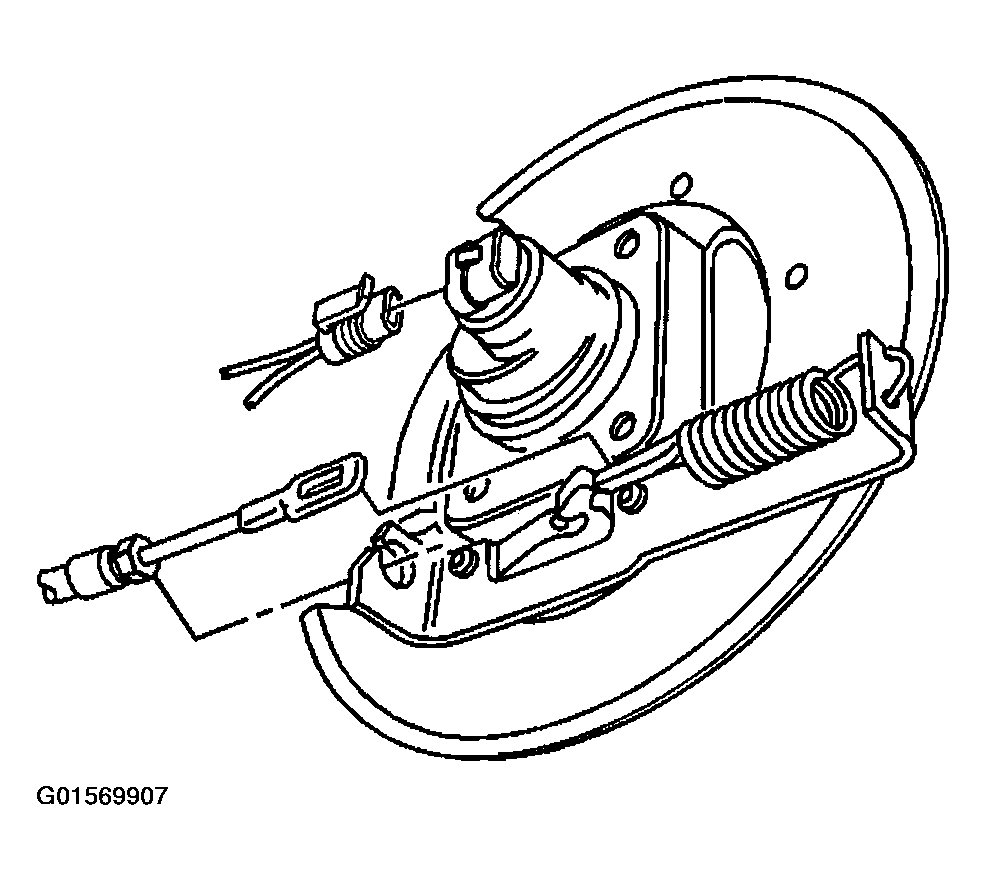

    Fig 2: Connecting Electrical Connector To Rear Wheel Speed Sensor
    G01569907Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Lower the vehicle.
  5. Turn the ignition switch to the ON position, with the engine off.
  6. Perform the DIAGNOSTIC SYSTEM CHECK - ABS  .
