Scan Tool Data List

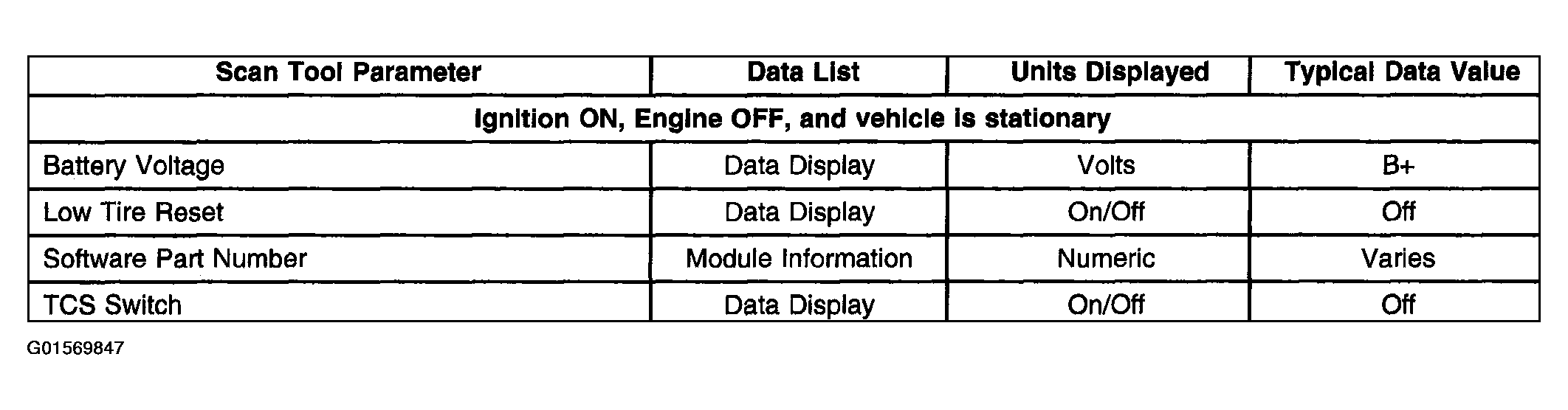

Fig 1: Body Control Module (BCM)
G01569847Courtesy of GENERAL MOTORS CORP.

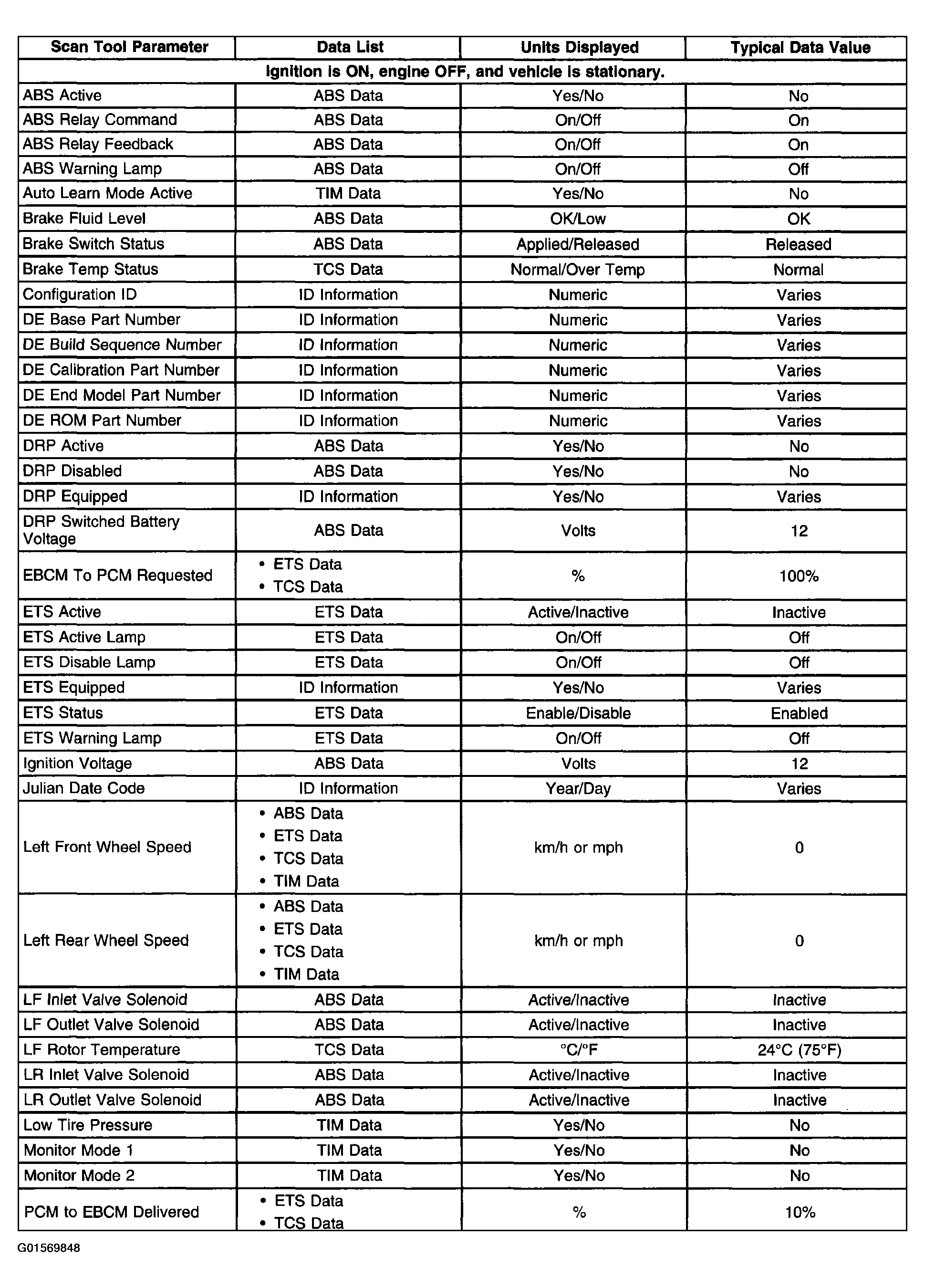

Fig 2: Electronic Brake Control Module (EBCM) - (1 Of 2)
G01569848Courtesy of GENERAL MOTORS CORP.

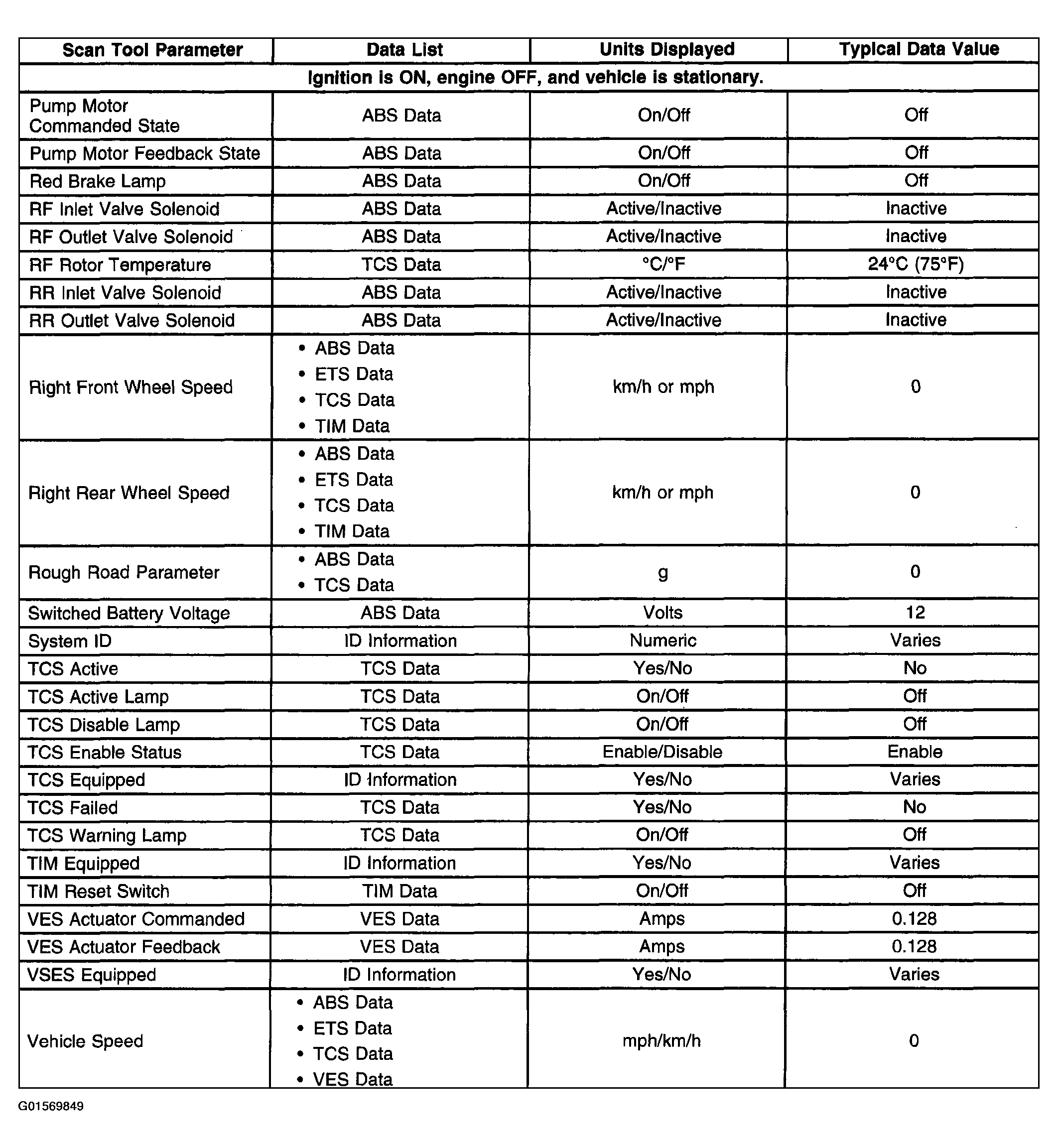

Fig 3: Electronic Brake Control Module (EBCM) - (2 Of 2)
G01569849Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel Cluster (IPC)
G01569850Courtesy of GENERAL MOTORS CORP.

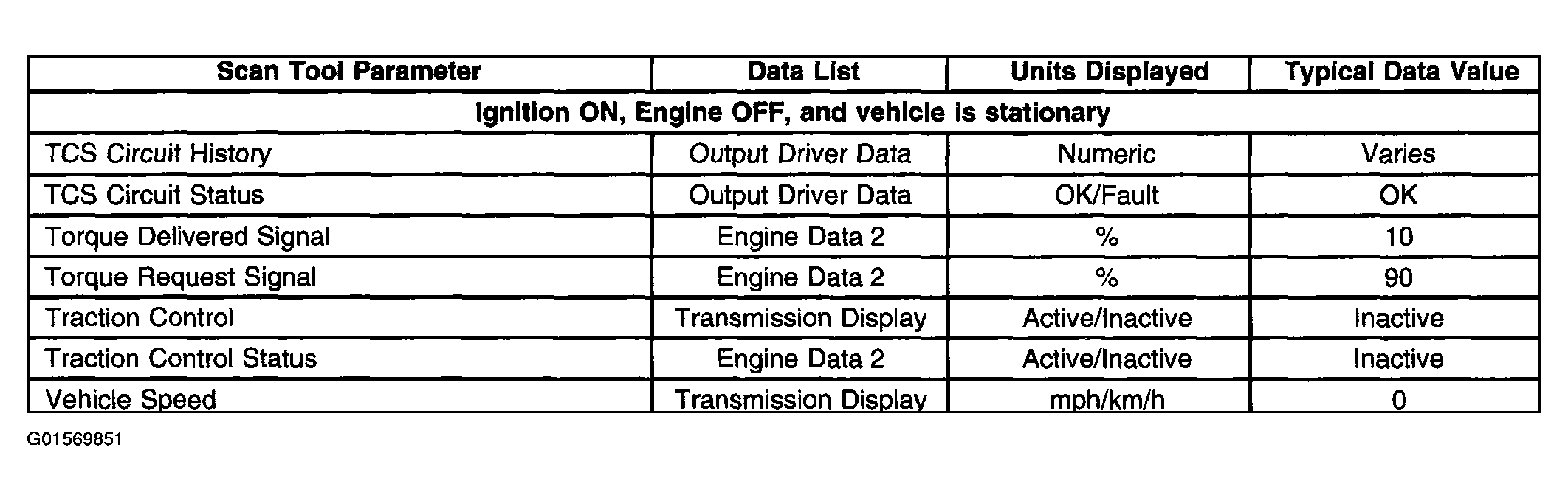

Fig 5: Powertrain Control Module (PCM)
G01569851Courtesy of GENERAL MOTORS CORP.
