Lock System Does Not Lock

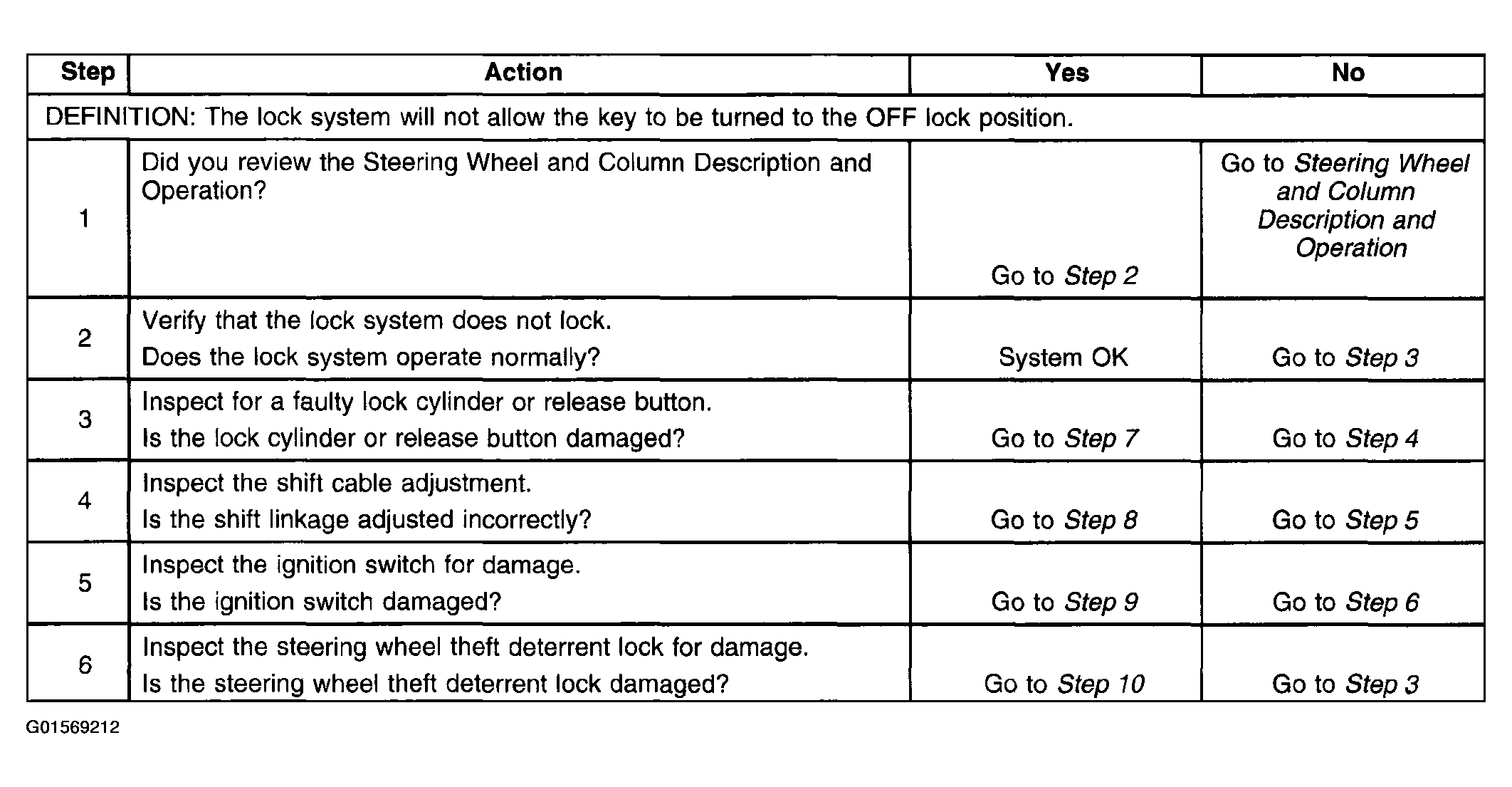

Fig 1: Lock System Does Not Lock (Steps 1-6)

G01569212

Courtesy of GENERAL MOTORS CORP.

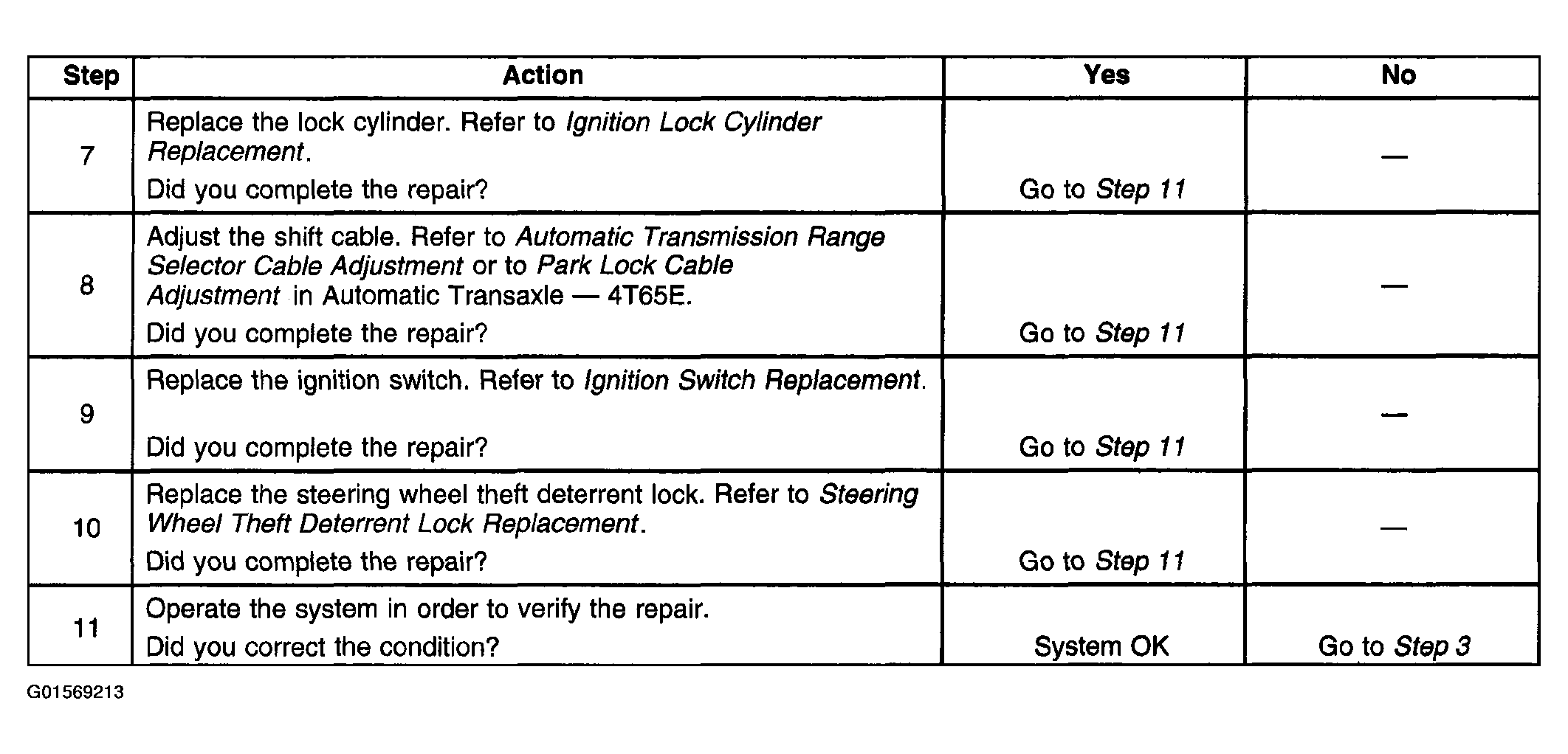

Fig 2: Lock System Does Not Lock (Steps 7-11)

G01569213

Courtesy of GENERAL MOTORS CORP.
