Power Steering Pump Disassembled View (CB Series Pump)
Power Steering Pump Disassembled View (CB Series Pump)

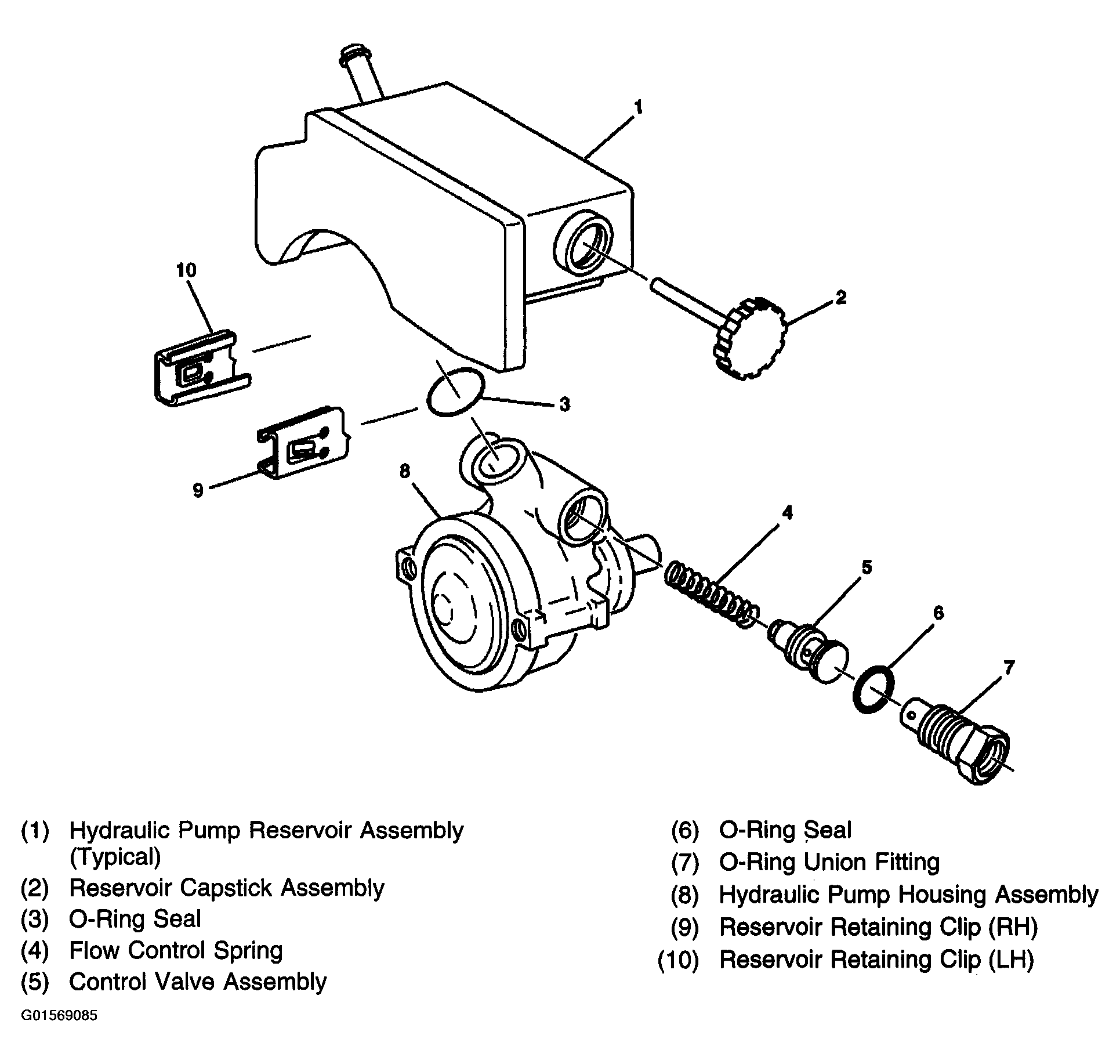

Fig 1: Exploded View Of Power Steering Pump Assembly-CB Series
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
