Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille Panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.

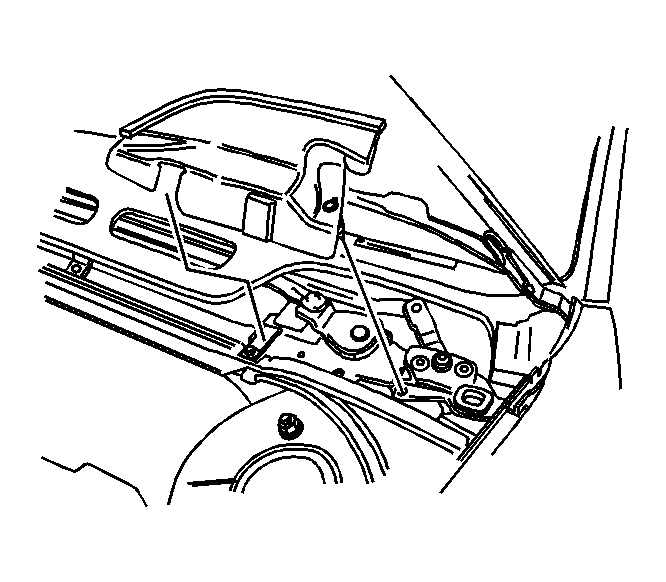

    2. Fig 1: Wiper Motor Water Deflector At Wiper Drive System Module
    GM815219Courtesy of GENERAL MOTORS CORP.
  2. Using the J 38778  , remove the wiper motor water deflector push-in retainer.
  3. Remove the wiper motor water deflector from the wiper drive system module.
