Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

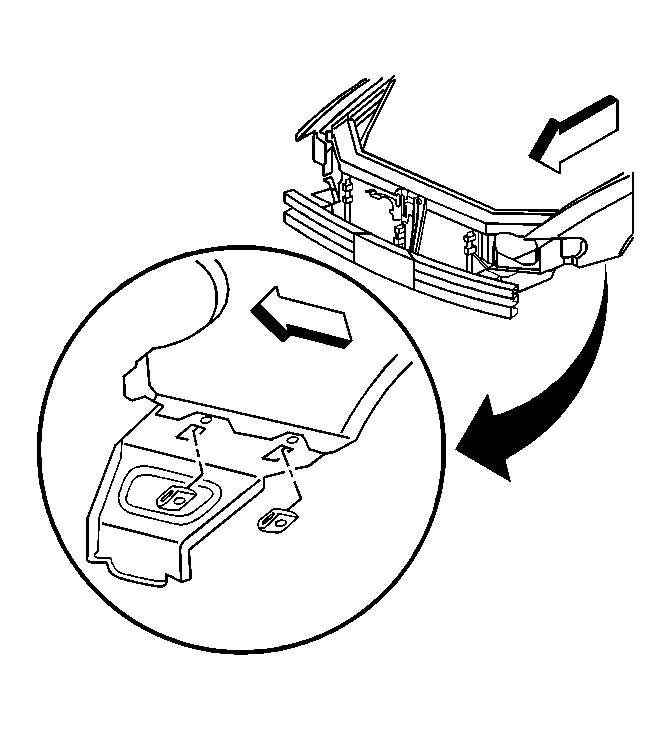

    Fig 1: Front Bumper Fascia Support
    GM428418Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper fascia side supports to the front bumper fascia.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the front bumper fascia side support to radiator support bolts.

    Tighten:  Tighten the bolts to 10 N.m (88 lb in).

  3. Install the bolts from the front bumper fascia side support to the bottom of the fender.

    Tighten:  Tighten the bolts to 10 N.m (88 lb in).

  4. Install the front fender liners. Refer to Front Fender Liner Replacement in Body Front End.
