Schematic and Routing Diagrams

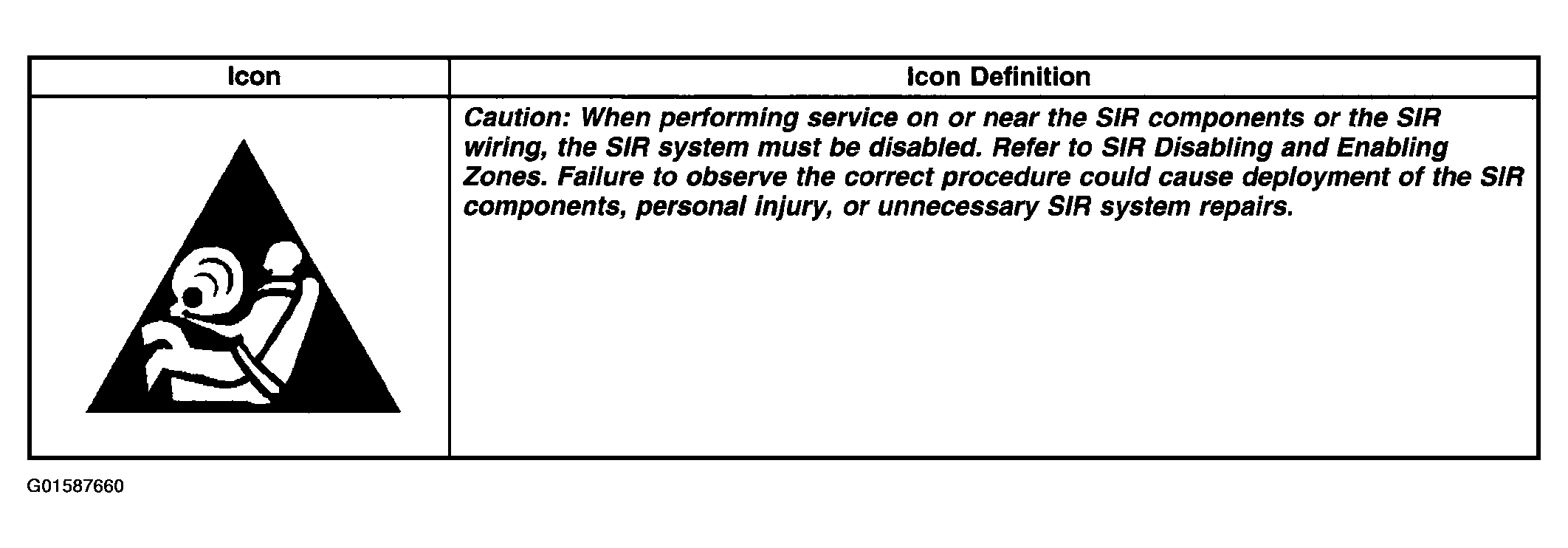

Fig 1: Retained Accessory Power (RAP) Schematic Icons

G01587660

Courtesy of GENERAL MOTORS CORP.

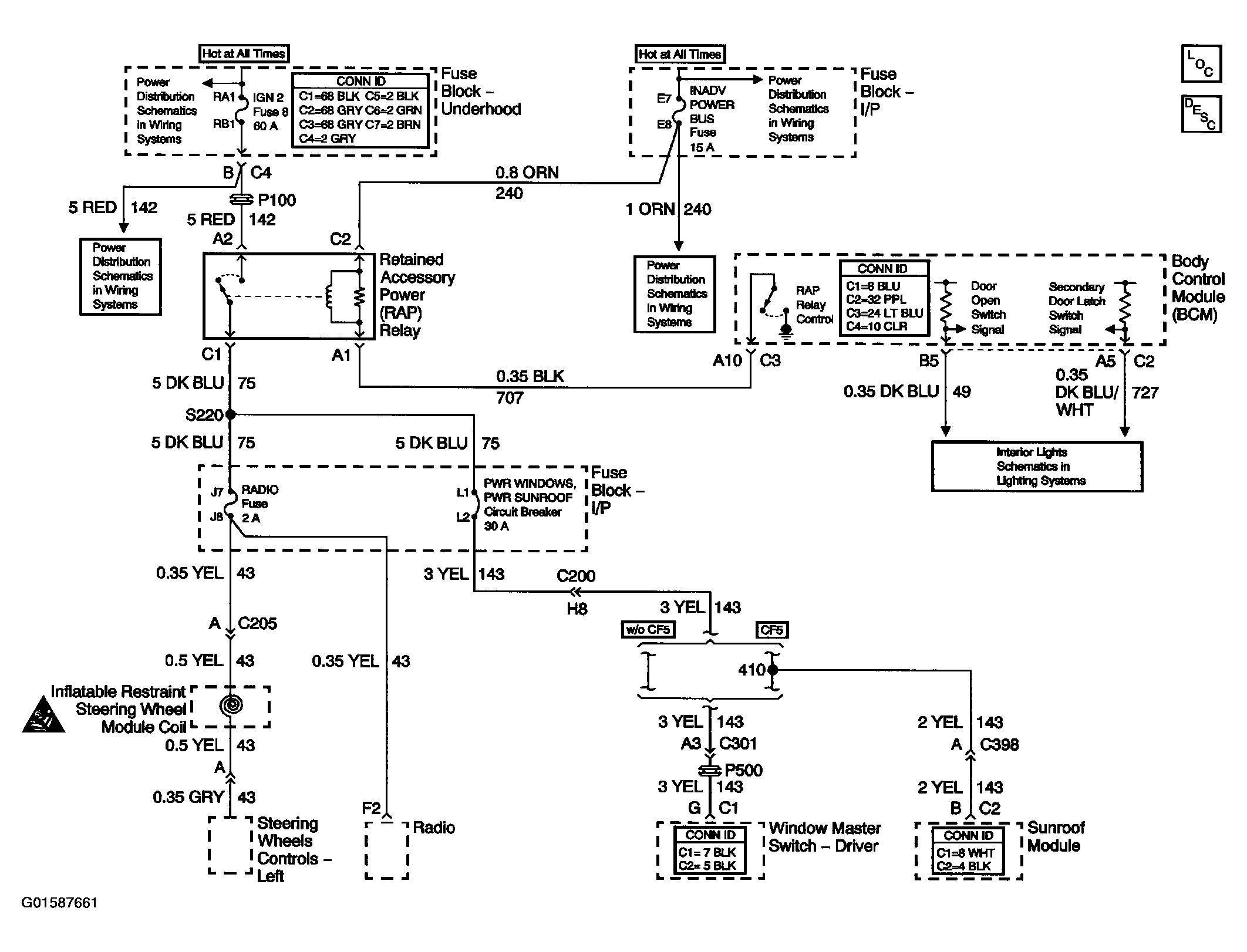

Fig 2: Retained Accessory Power (RAP) Schematics

G01587661

Courtesy of GENERAL MOTORS CORP.
