PID Value Charts: 3.8L

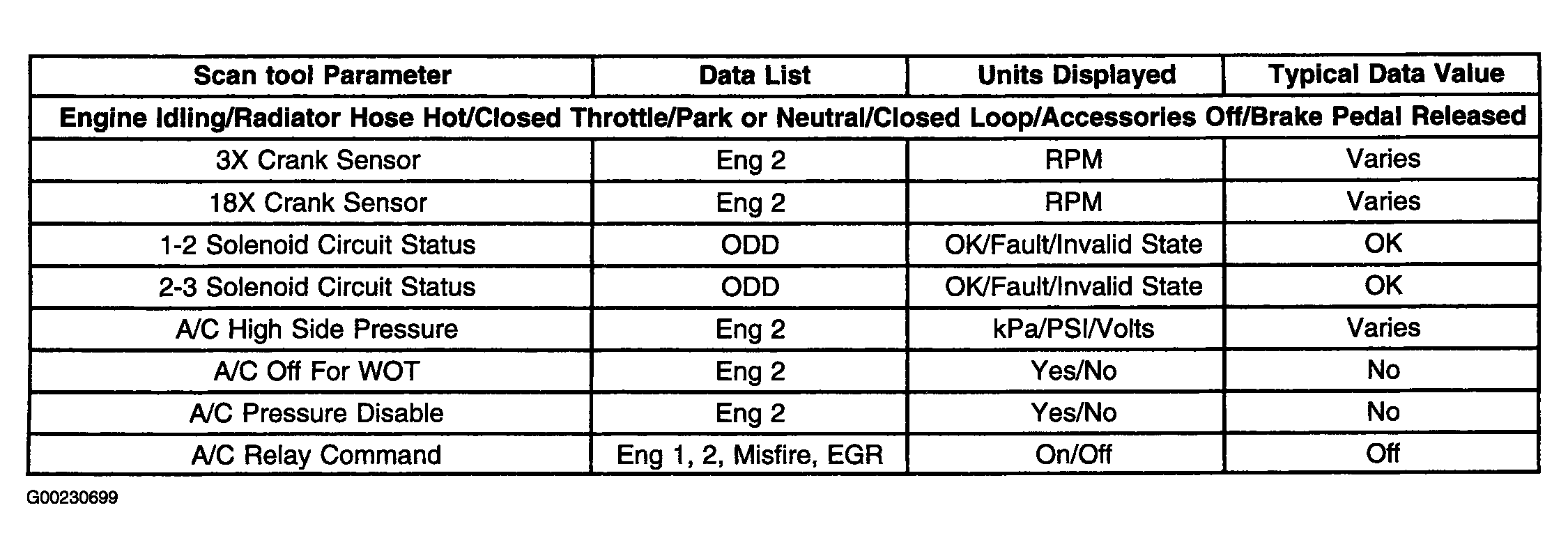

Fig 1: PID Values - 3.8L (1 Of 4)
G00230699Courtesy of GENERAL MOTORS CORP.

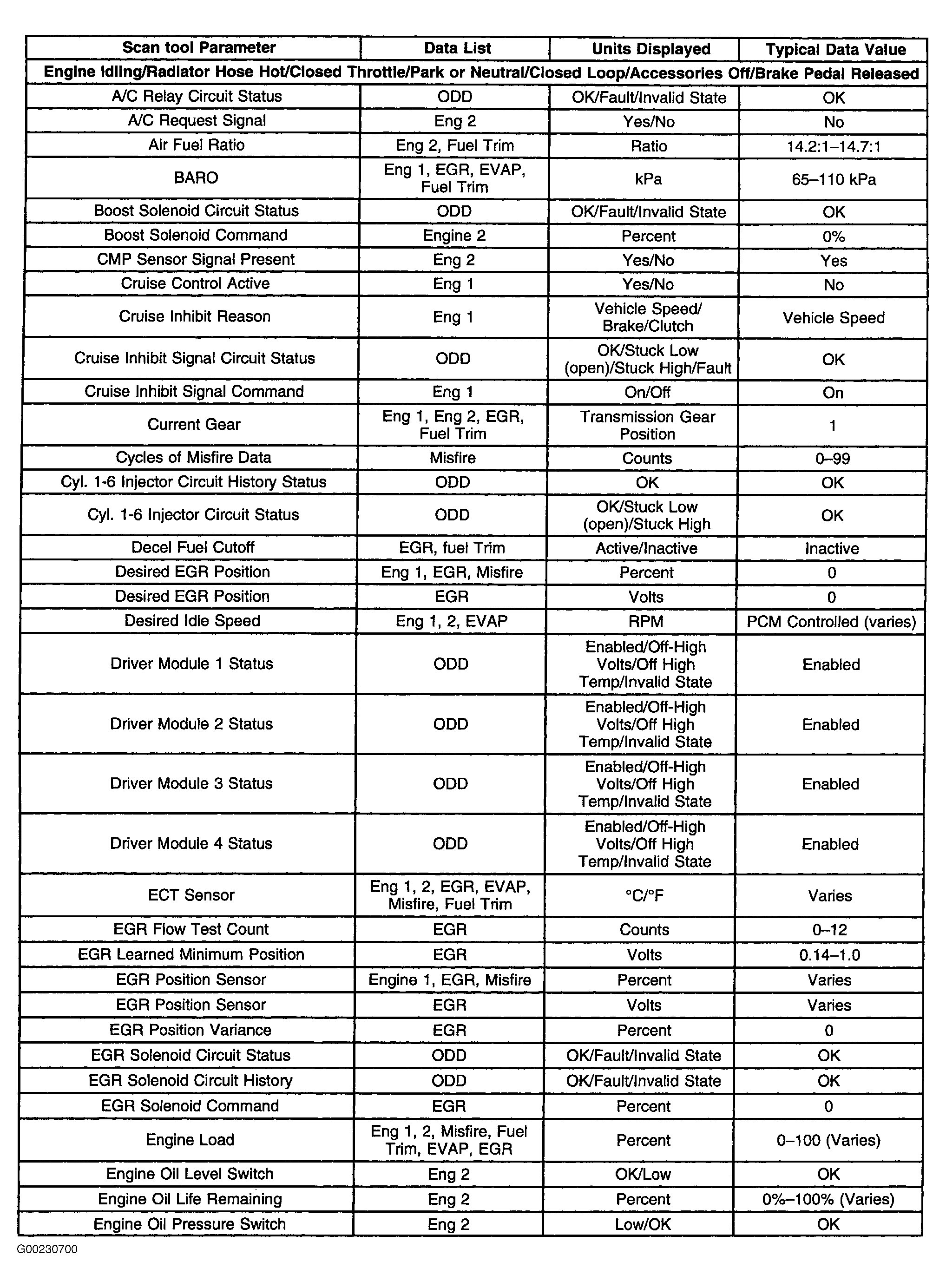

Fig 2: PID Values - 3.8L (2 Of 4)
G00230700Courtesy of GENERAL MOTORS CORP.

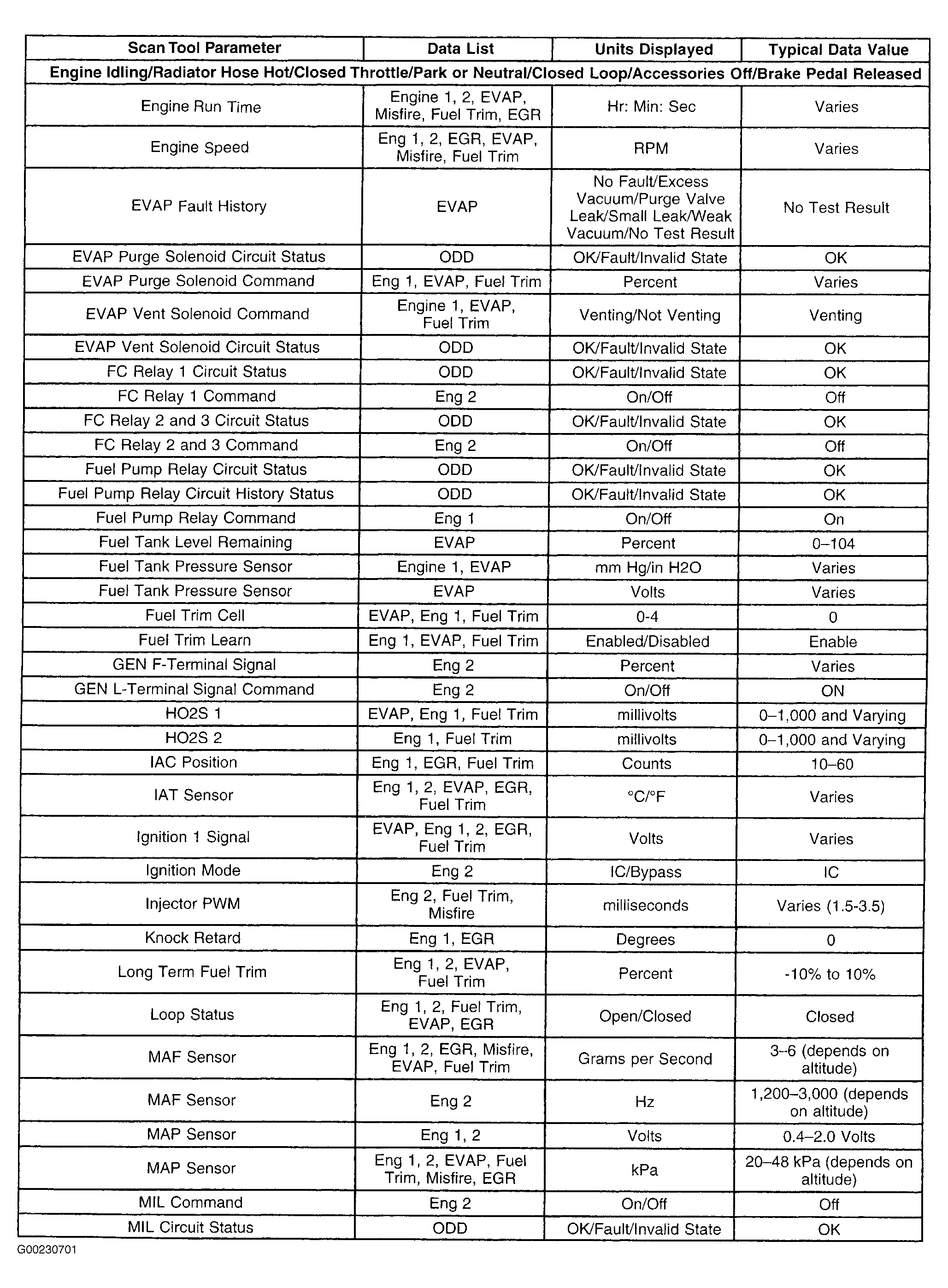

Fig 3: PID Values - 3.8L (3 Of 4)
G00230701Courtesy of GENERAL MOTORS CORP.

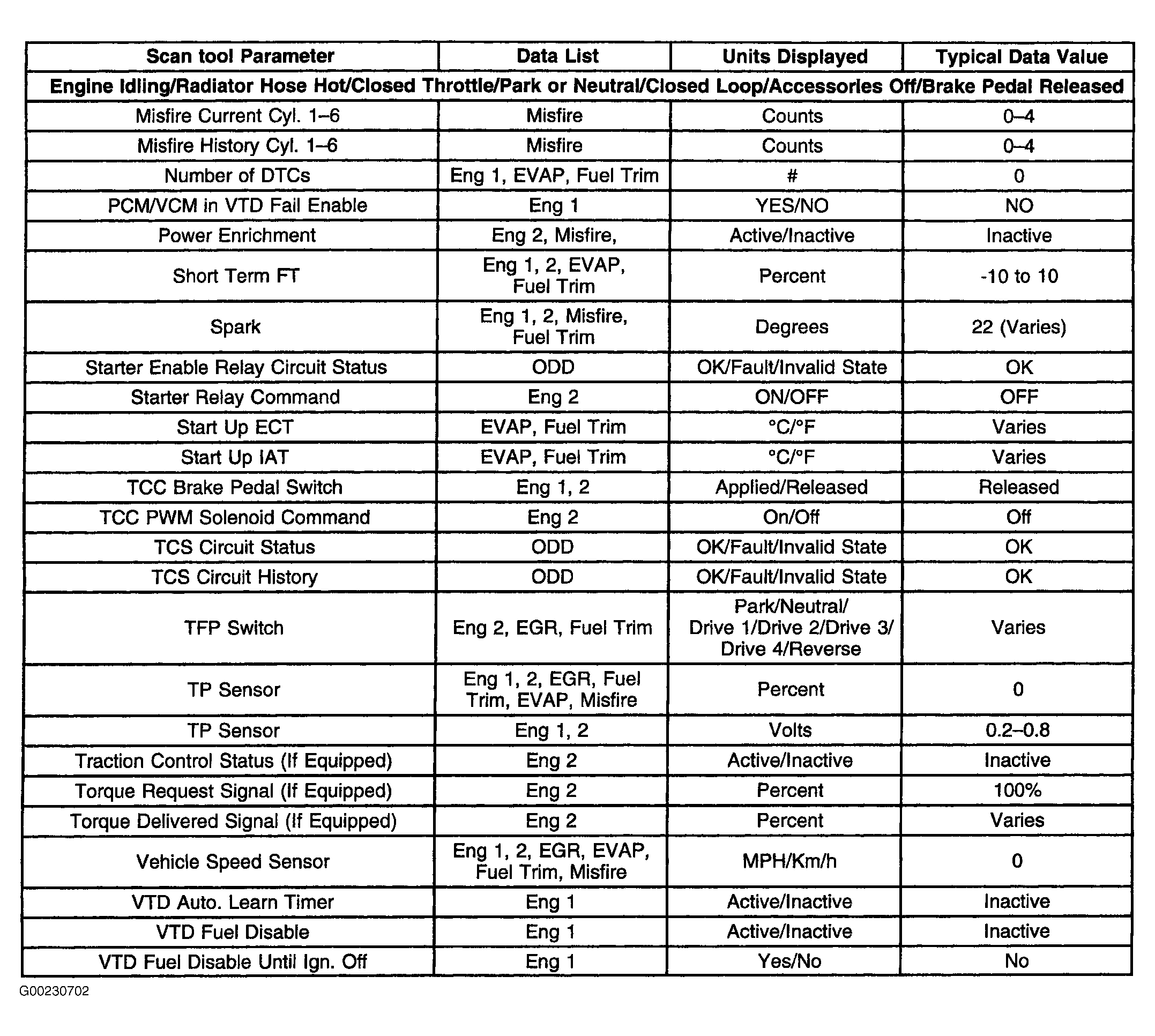

Fig 4: PID Values - 3.8L (4 Of 4)
G00230702Courtesy of GENERAL MOTORS CORP.
