PID Value Charts: 3.1L

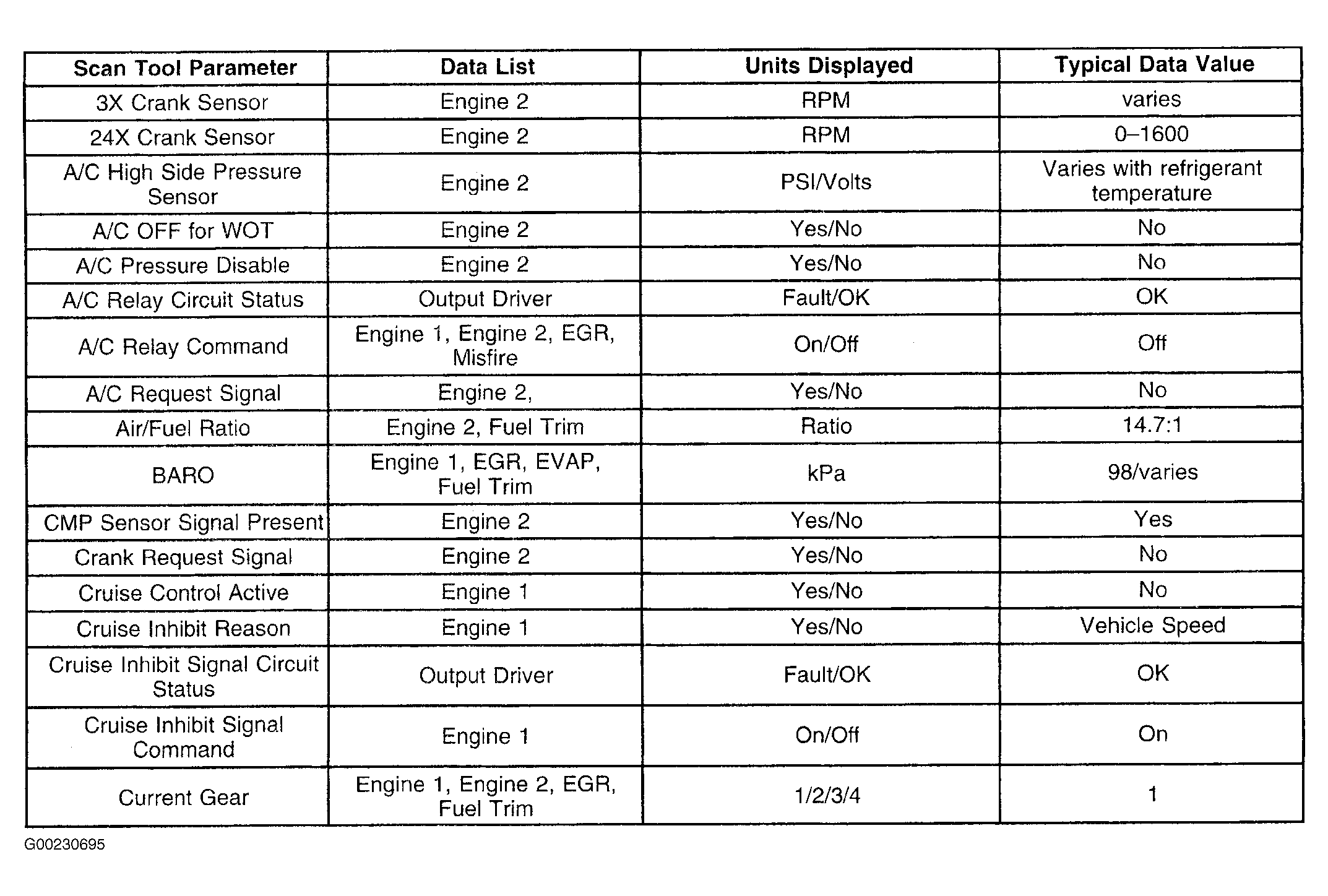

Fig 1: PID Values - 3.1L (1 Of 4)
G00230695Courtesy of GENERAL MOTORS CORP.

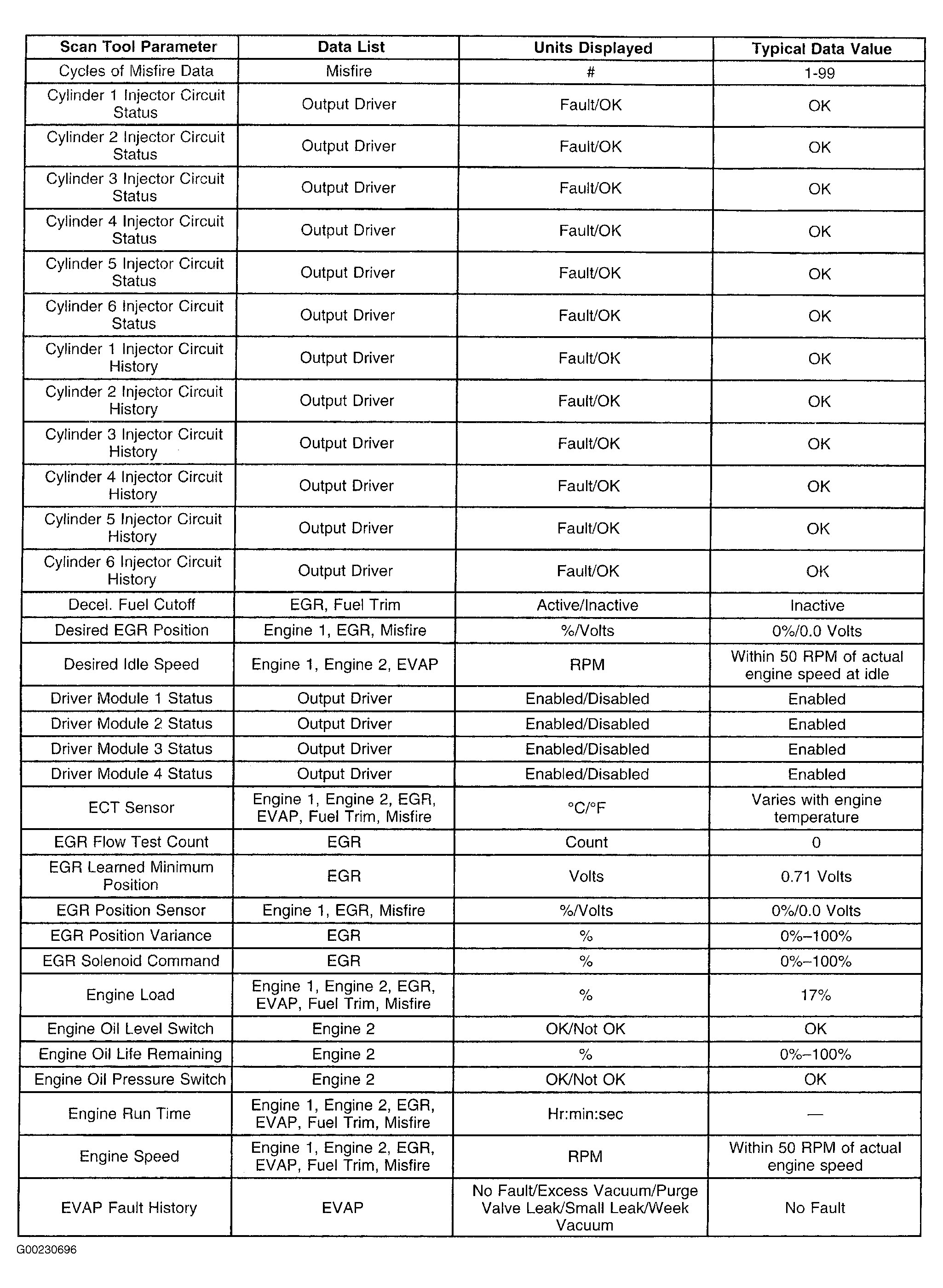

Fig 2: PID Values - 3.1L (2 Of 4)
G00230696Courtesy of GENERAL MOTORS CORP.

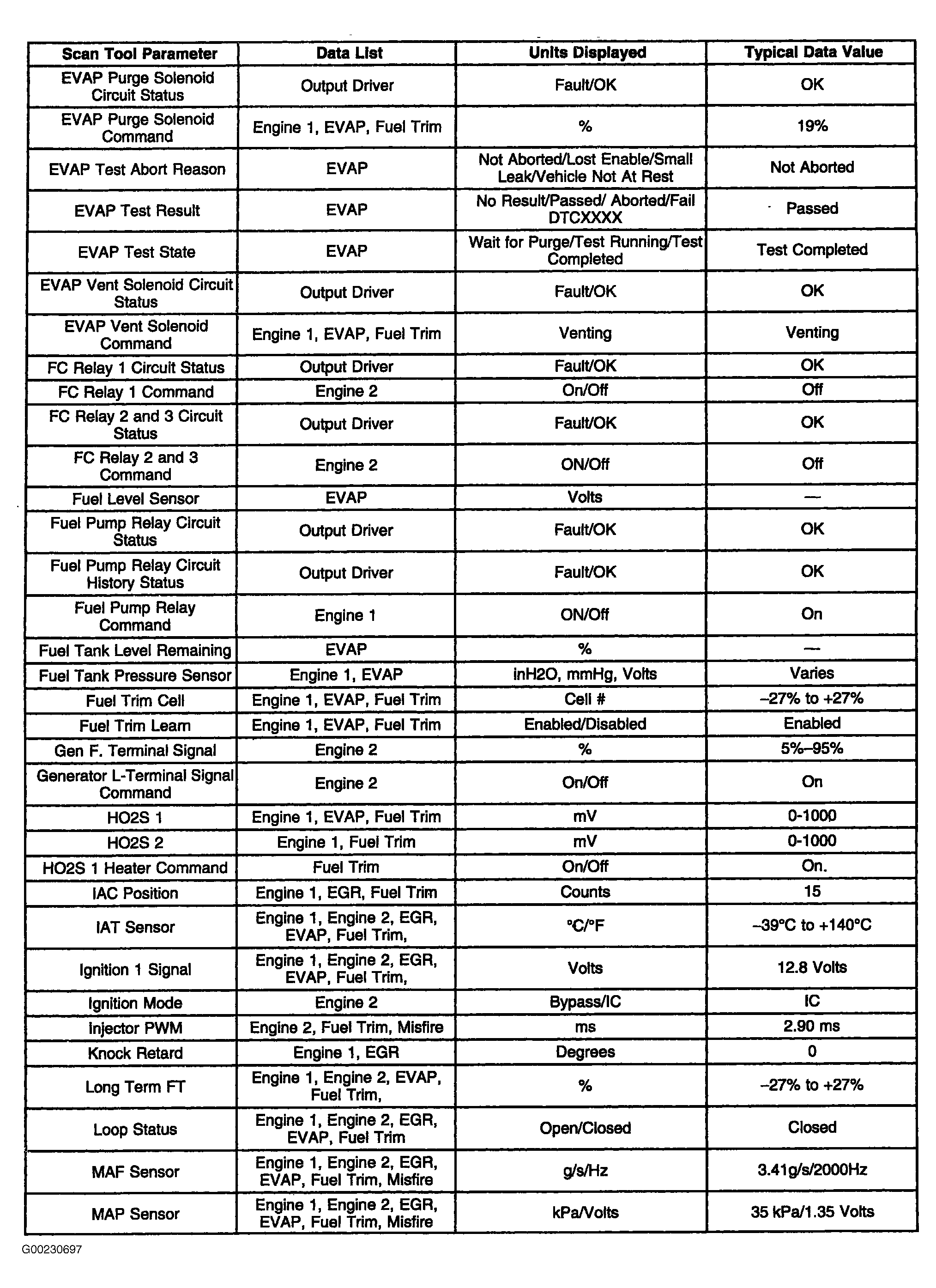

Fig 3: PID Values - 3.1L (3 Of 4)
G00230697Courtesy of GENERAL MOTORS CORP.

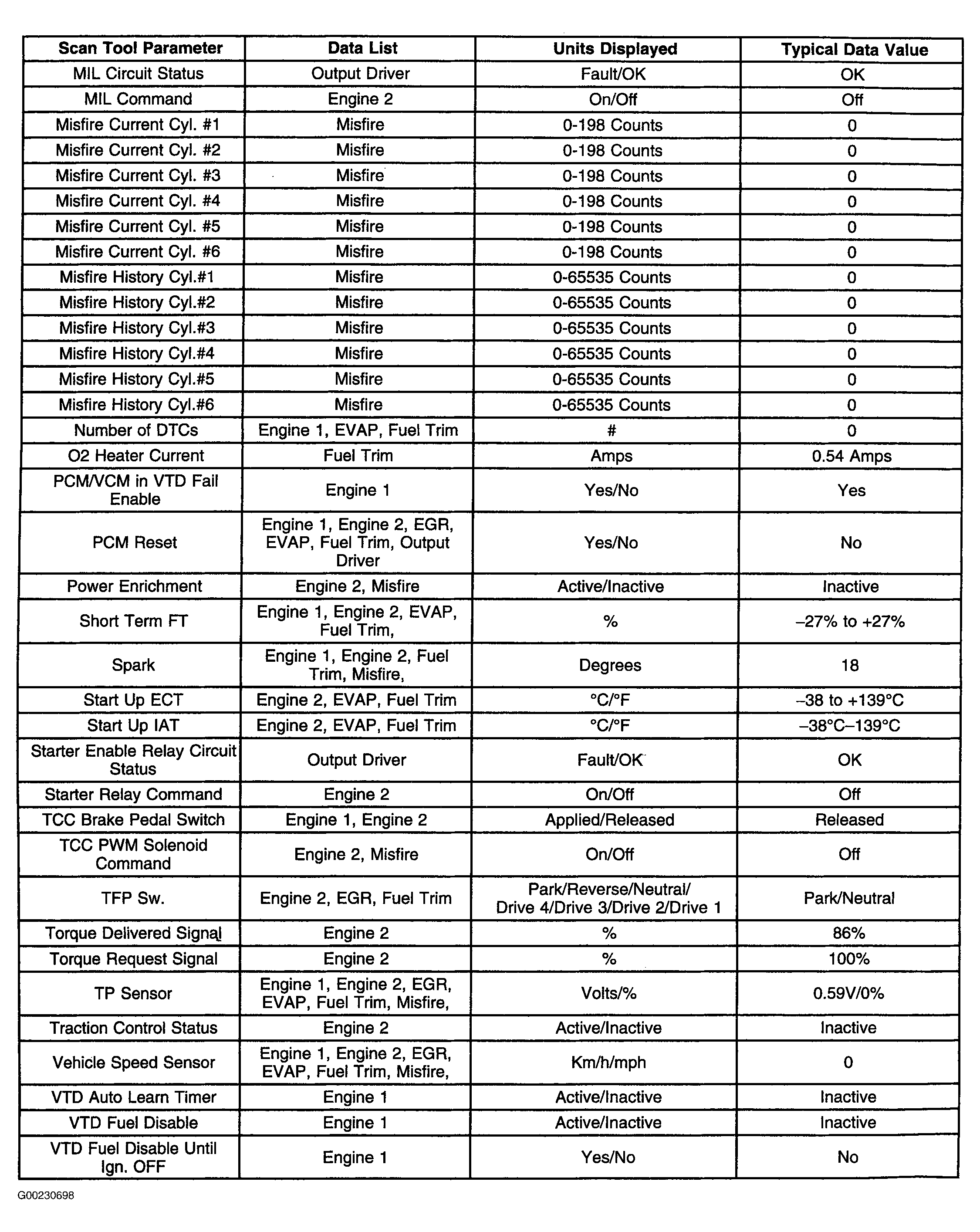

Fig 4: PID Values - 3.1L (4 Of 4)
G00230698Courtesy of GENERAL MOTORS CORP.
