Home >> Buick >> 2003 >> Century Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Battery >> Repair Instructions >> Battery Tray Replacement >> Removal Procedure

Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Remove the battery. Refer to BATTERY REPLACEMENT  .
  3. Remove the battery tray bolts.

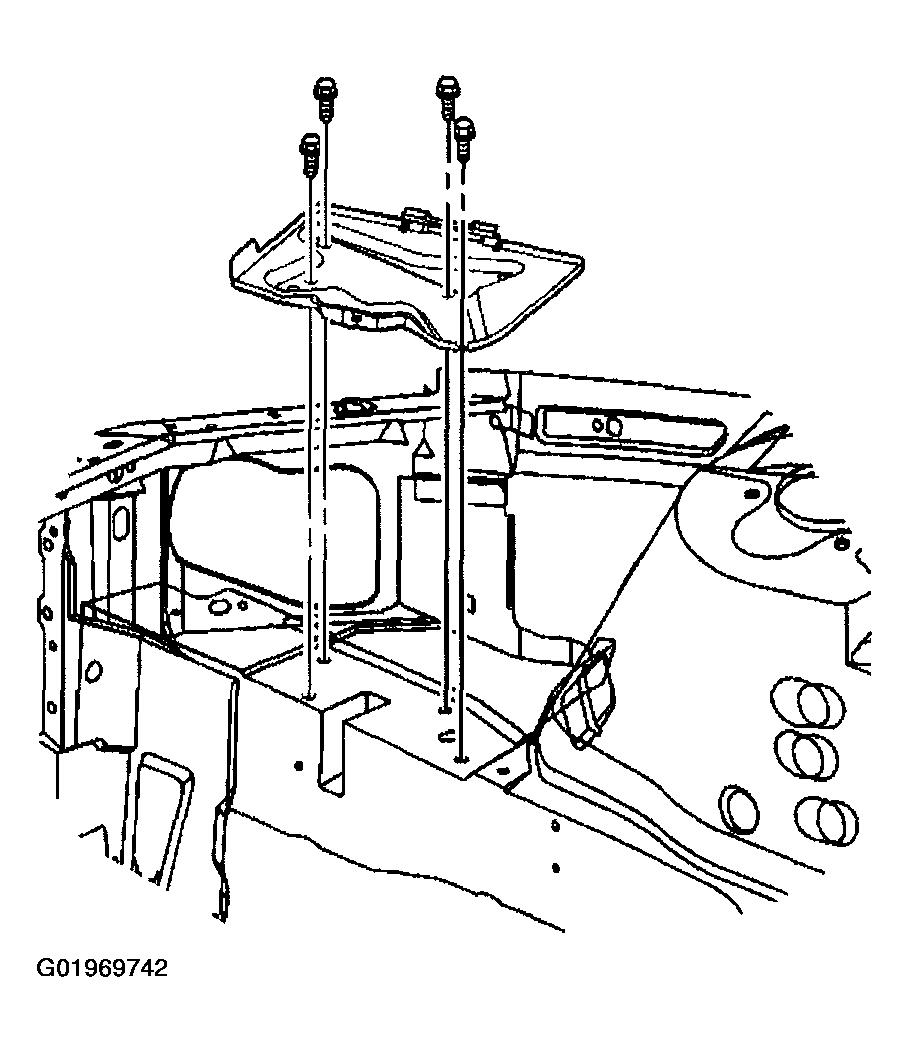

    Fig 1: Removing Battery Tray & Bolts
    G01969742Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray.
