Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 5 N.m (44 lb in).

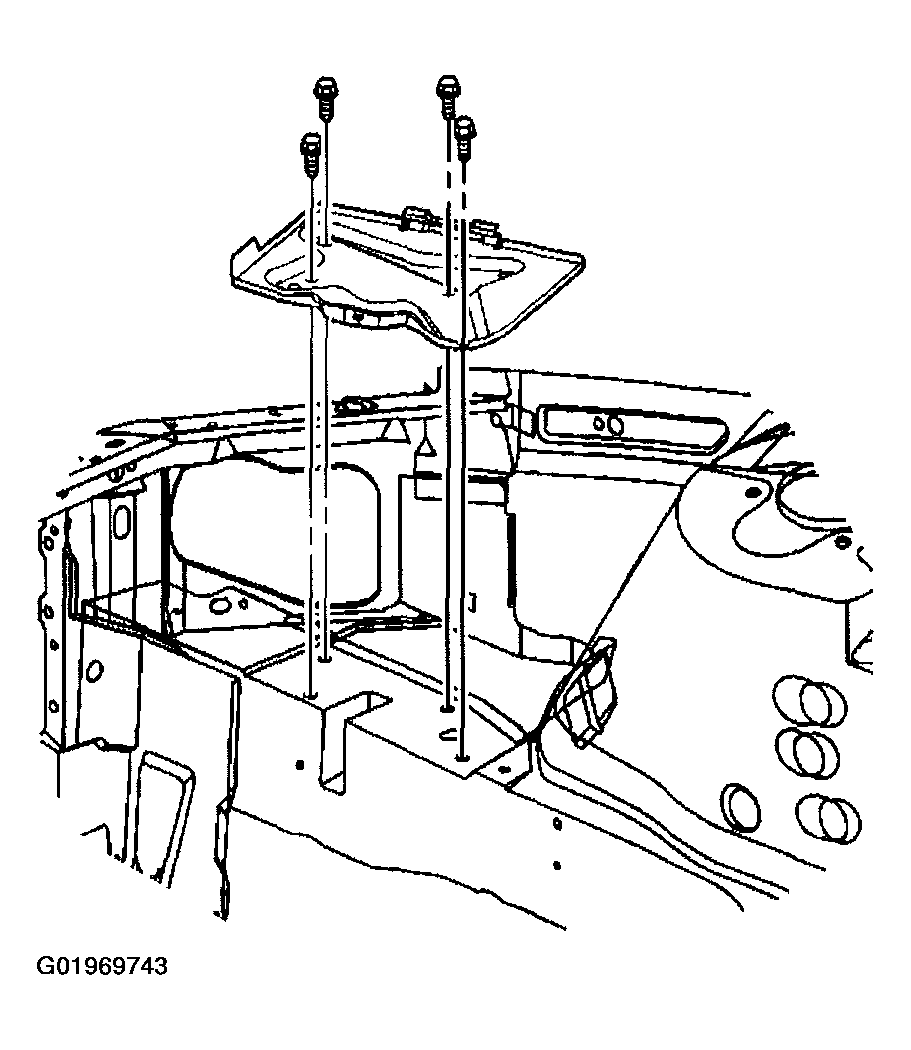

    Fig 1: Installing Battery Tray & Bolts
    G01969743Courtesy of GENERAL MOTORS CORP.
  3. Install the battery. Refer to BATTERY REPLACEMENT  .
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
