Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

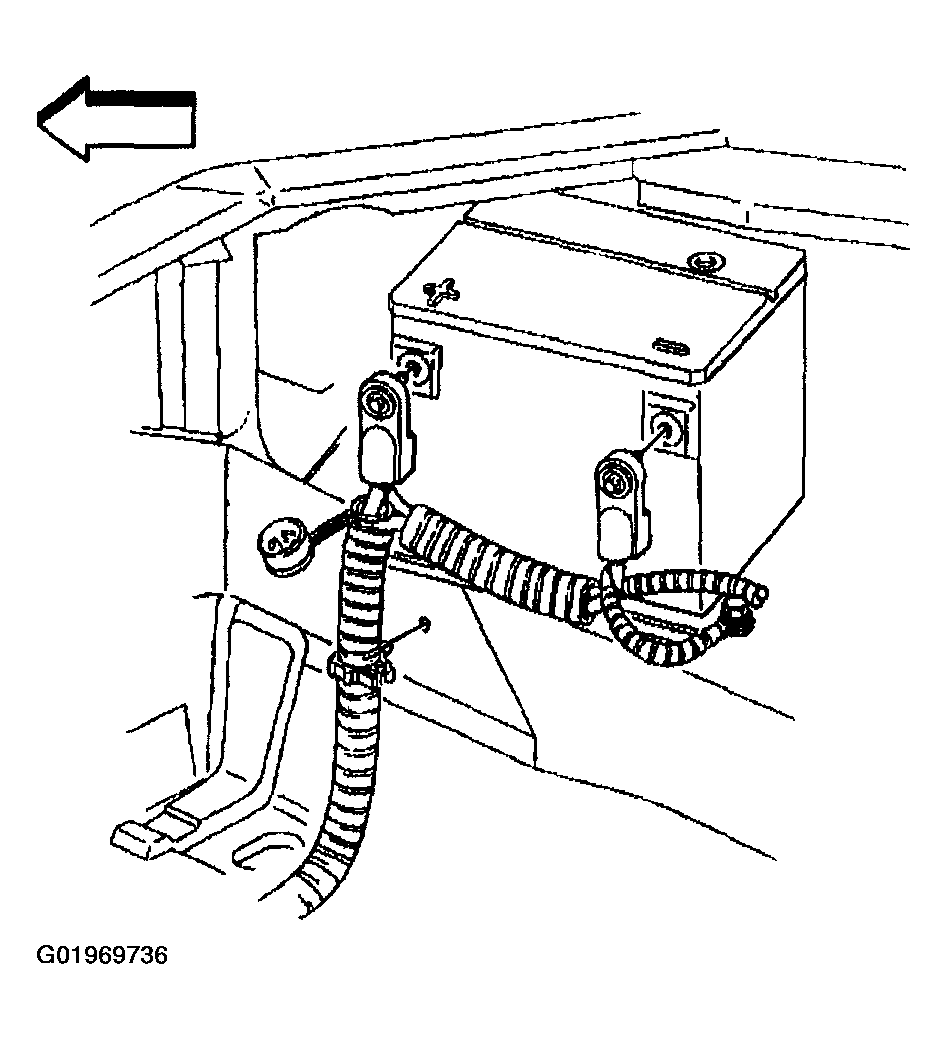

    Fig 1: Disconnecting Positive & Negative Battery Cables
    G01969736Courtesy of GENERAL MOTORS CORP.
  2. Remove the right front diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in Body Front End.
  3. Disconnect the positive battery cable.
  4. Remove the retainer bolt (1) that holds the battery in place.

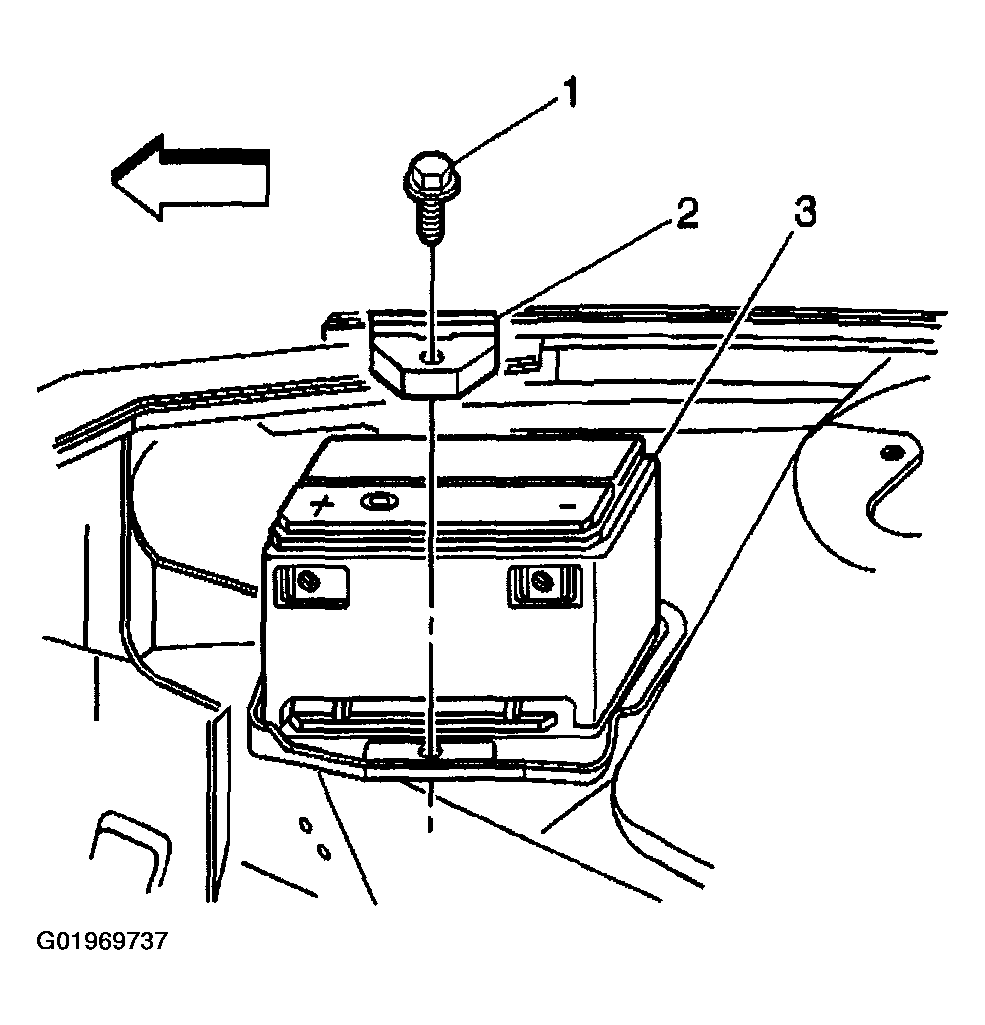

    Fig 2: Removing Battery & Retainer Bolt
    G01969737Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery retainer (2).
    IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  6. Remove the battery (3).
  7. Remove the insulator from the battery.

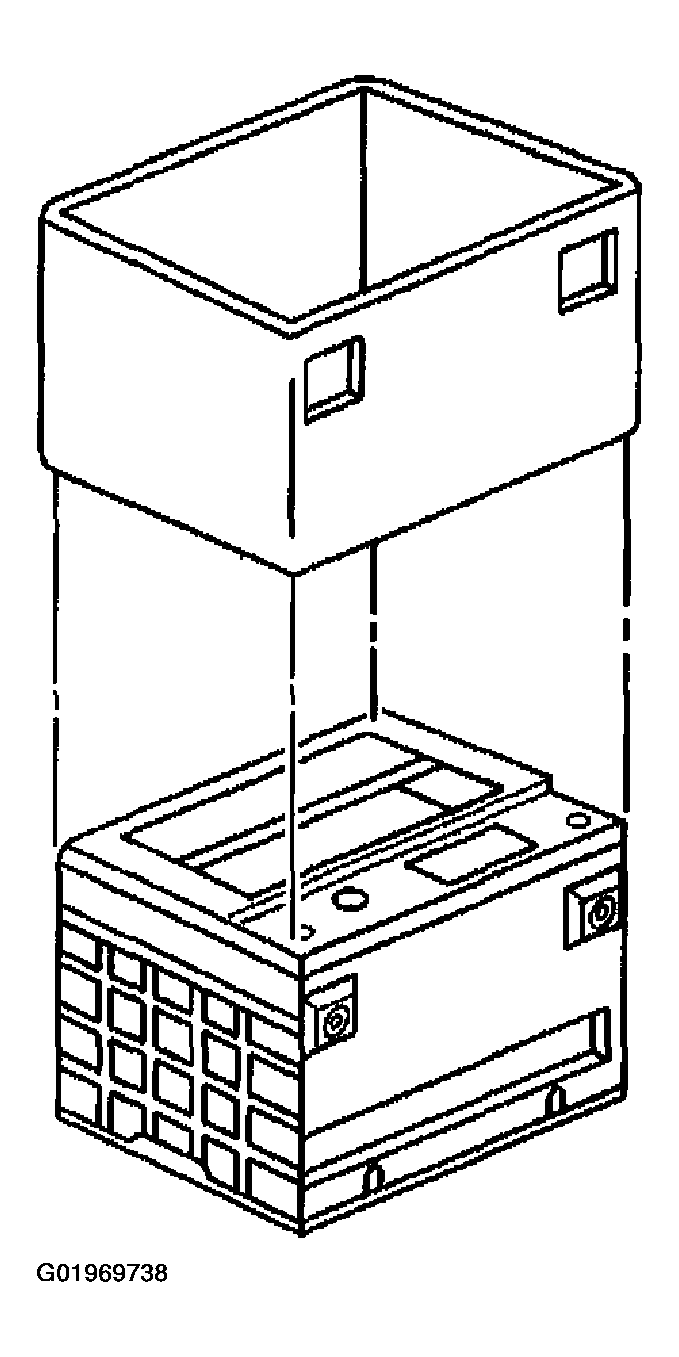

    Fig 3: Removing Insulator From Battery
    G01969738Courtesy of GENERAL MOTORS CORP.
