Power Window Schematics
Power Window Schematics

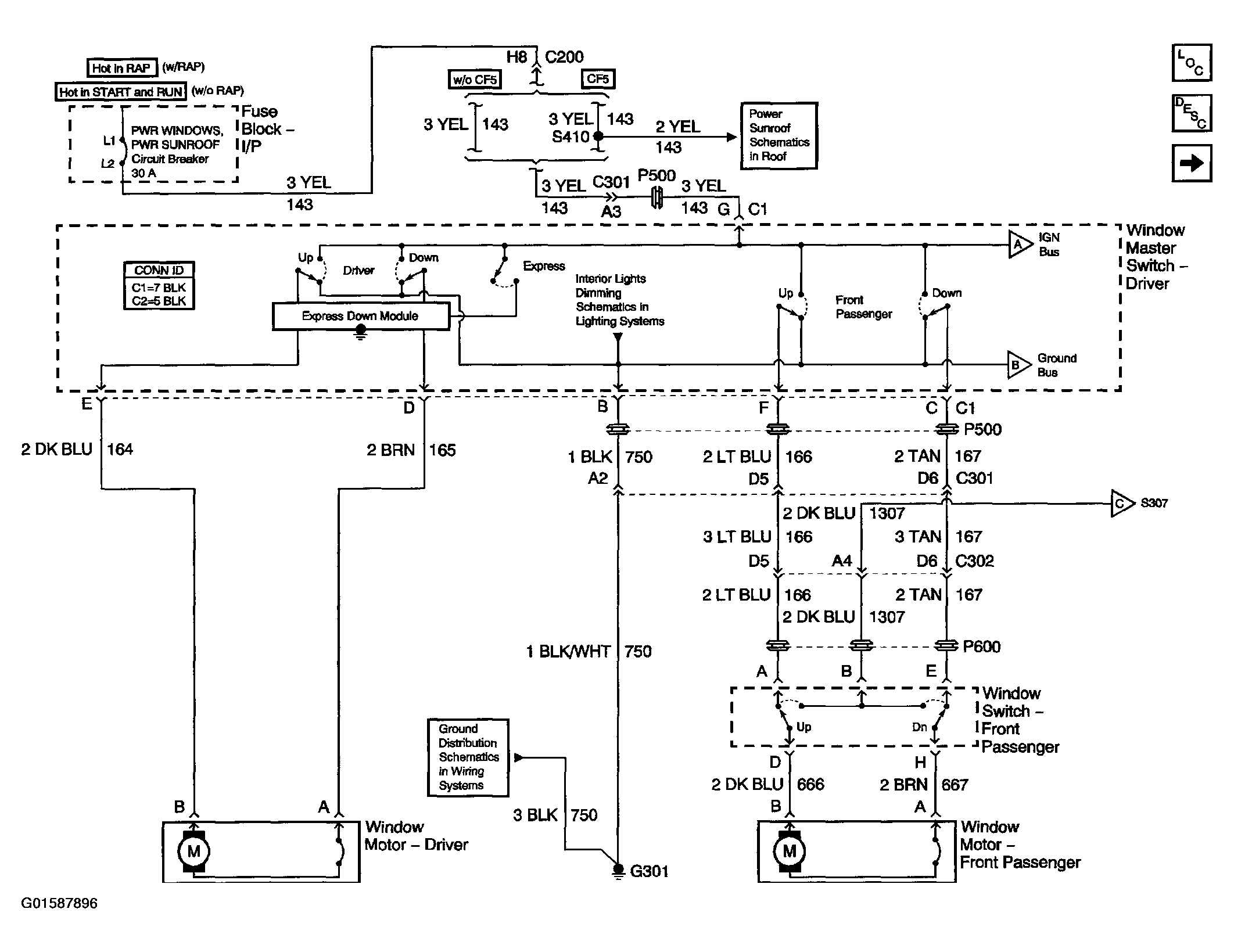

Fig 1: Front Window Diagram
Courtesy of GENERAL MOTORS CORP.

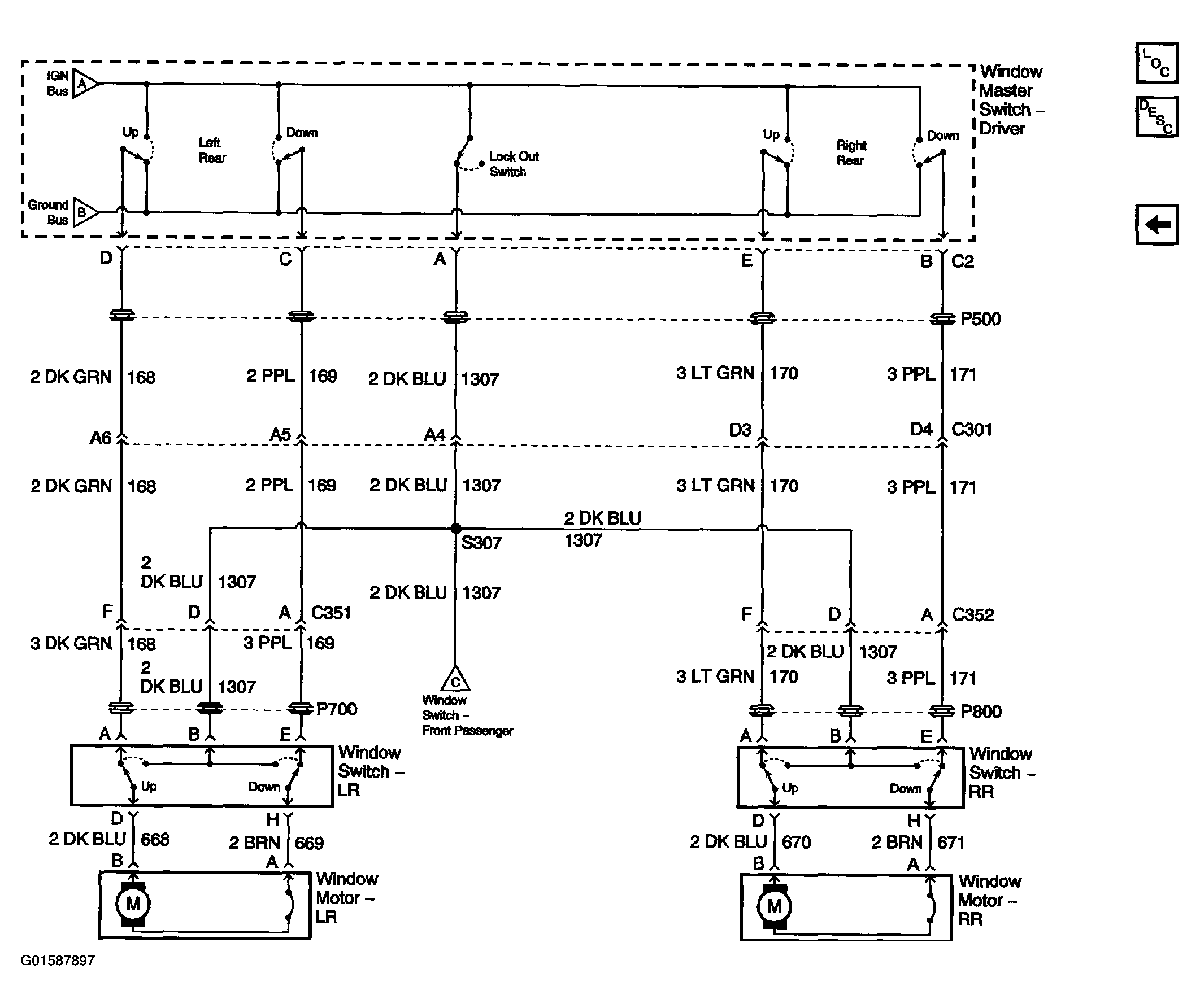

Fig 2: Rear Window Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
