Removal Procedure

  1. Lower the front door window to the half way position to gain access to the front door window bolts.
  2. Remove the front door water deflector. Refer to WINDOW ADJUSTMENT - FRONT DOOR  .
  3. Remove the front door inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  4. Remove the front door window bolts (2).

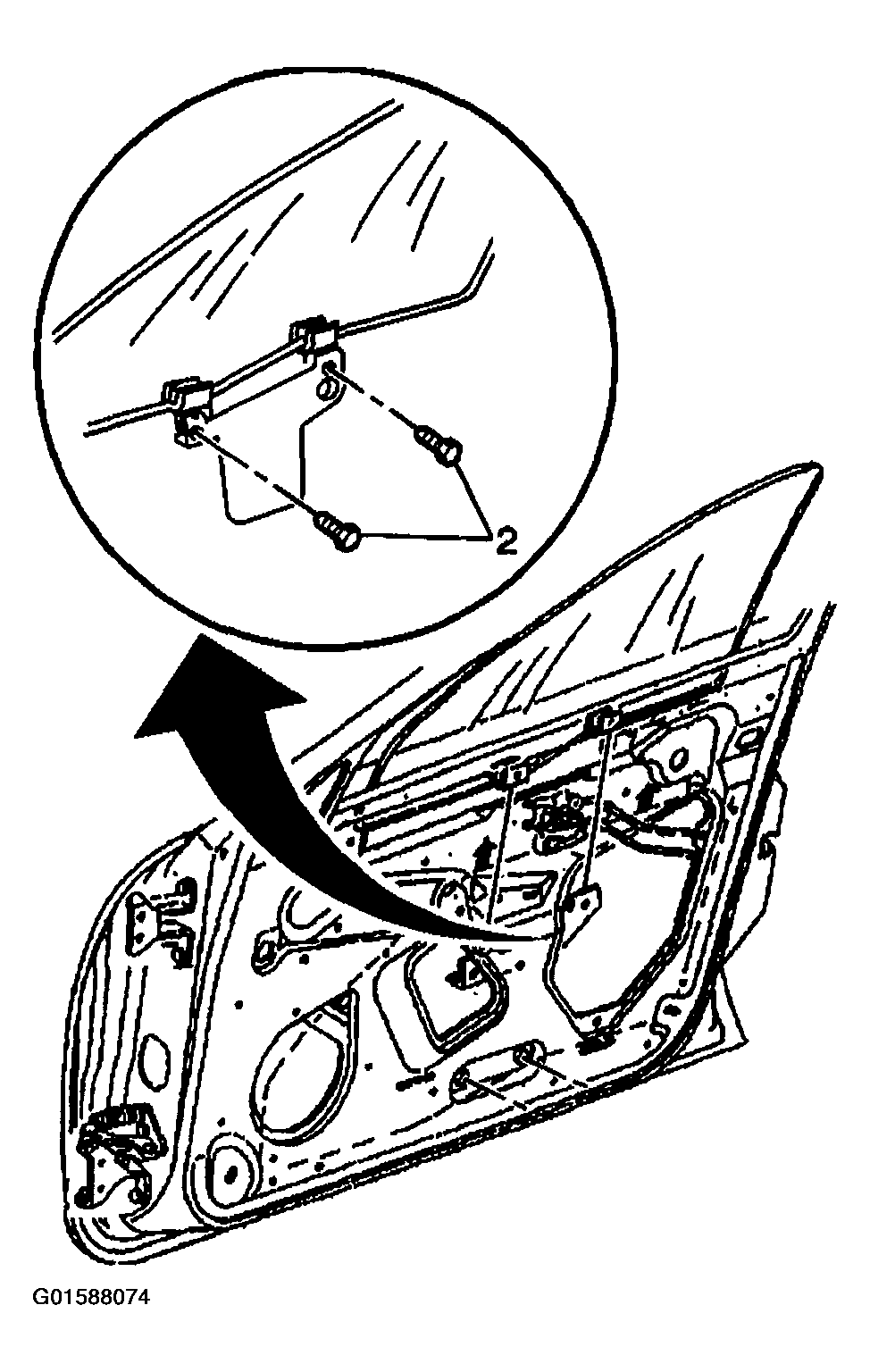

    5. Fig 1: Removing Front Door Window Bolts
    G01588074Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door window from the front door.

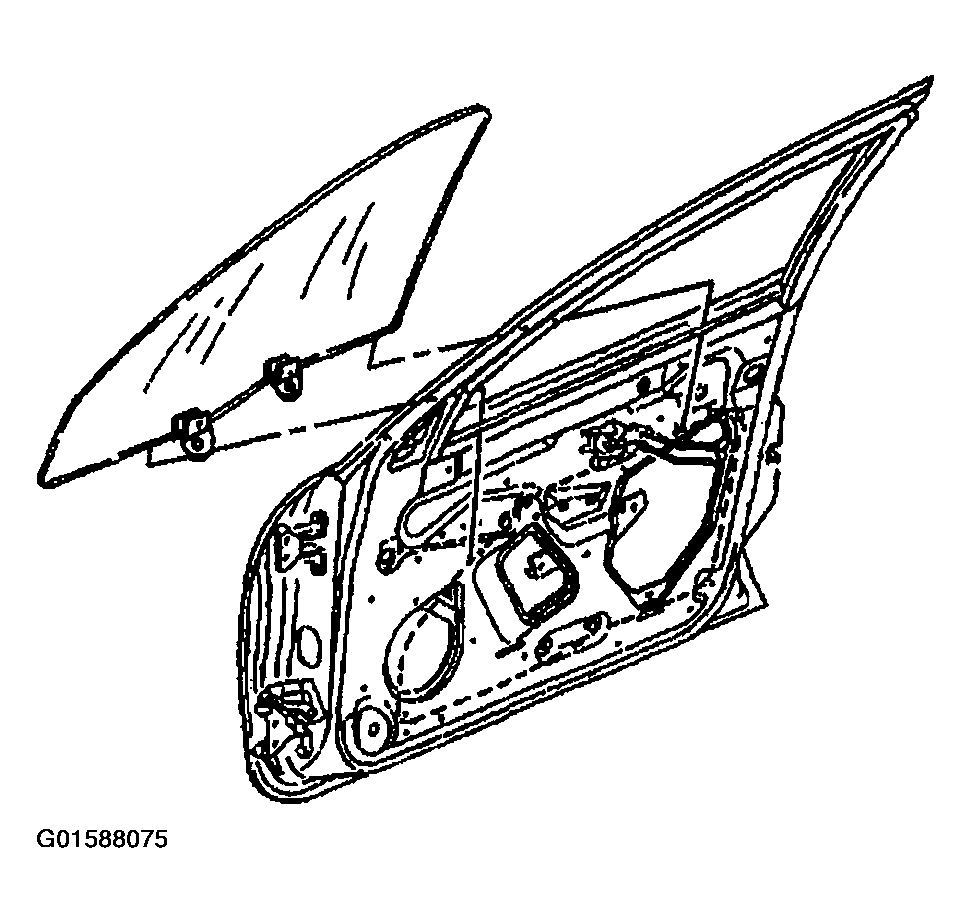

    6. Fig 2: Removing Front Door Window From Front Door
    G01588075Courtesy of GENERAL MOTORS CORP.
