Home >> Buick >> 2003 >> Century Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Reflector Replacement - Front Door Warning >> Removal Procedure

Removal Procedure

  1. Open the door.
  2. Remove the front door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. From inside the trim panel, press the reflector retaining tabs together and push the reflector out.
  4. Remove the warning reflector from the trim panel.

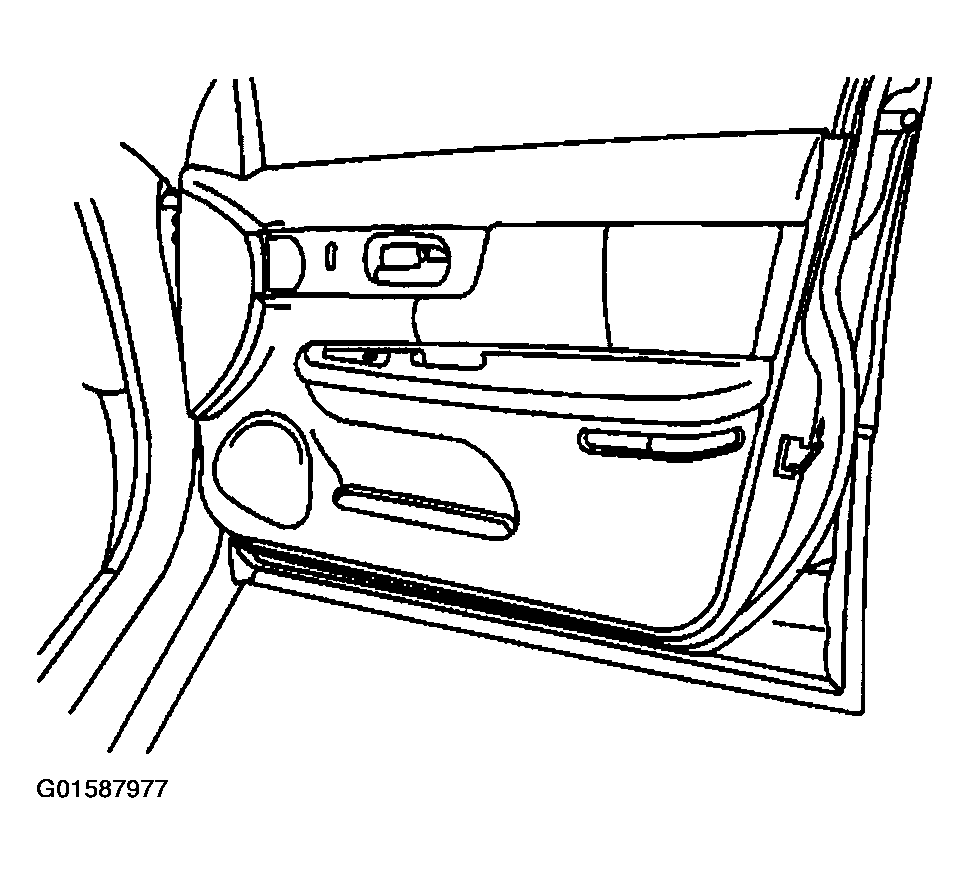

    5. Fig 1: Removing Front Door Warning Reflector
    G01587977Courtesy of GENERAL MOTORS CORP.
