Removal Procedure
CAUTION:
Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.
- Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
- Remove the mirror from the front door. Refer to MIRROR REPLACEMENT - POWER or MIRROR REPLACEMENT - REMOTE .
- Remove the mirror face. Refer to MIRROR FACE REPLACEMENT .

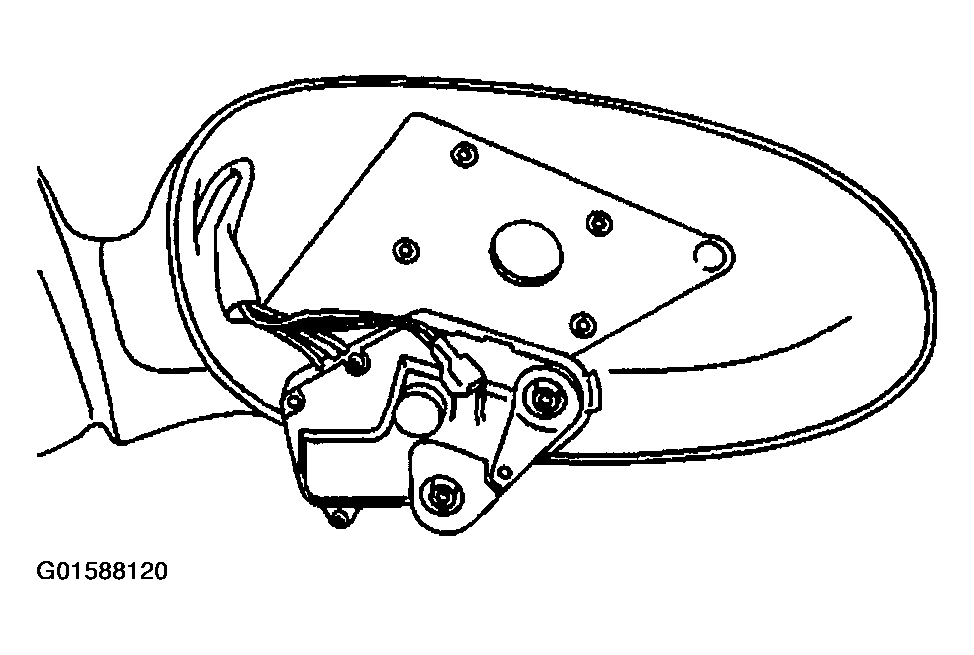

- Remove the mirror motor screws.
- Remove the mirror motor electrical harness through the mirror housing.
- Remove the mirror motor from the mirror housing.
