Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the mirror electrical connectors.
  3. Remove the mirror reinforcement cover.
  4. Remove the mirror nuts.
  5. Remove the mirror from the front door.

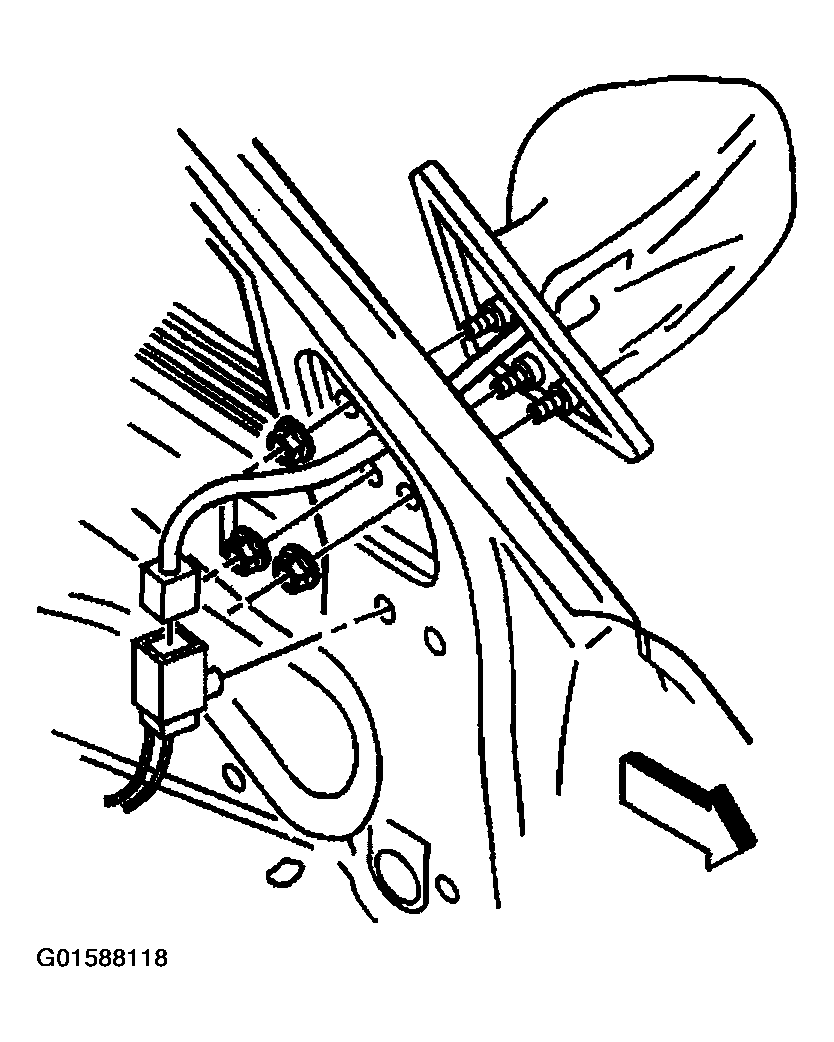

    6. Fig 1: Removing Front Door Power Mirror
    G01588118Courtesy of GENERAL MOTORS CORP.
