Removal Procedure

  1. Remove the lock. Refer to LOCK REPLACEMENT - FRONT DOOR  .
  2. Remove the inside handle rod from the lock.

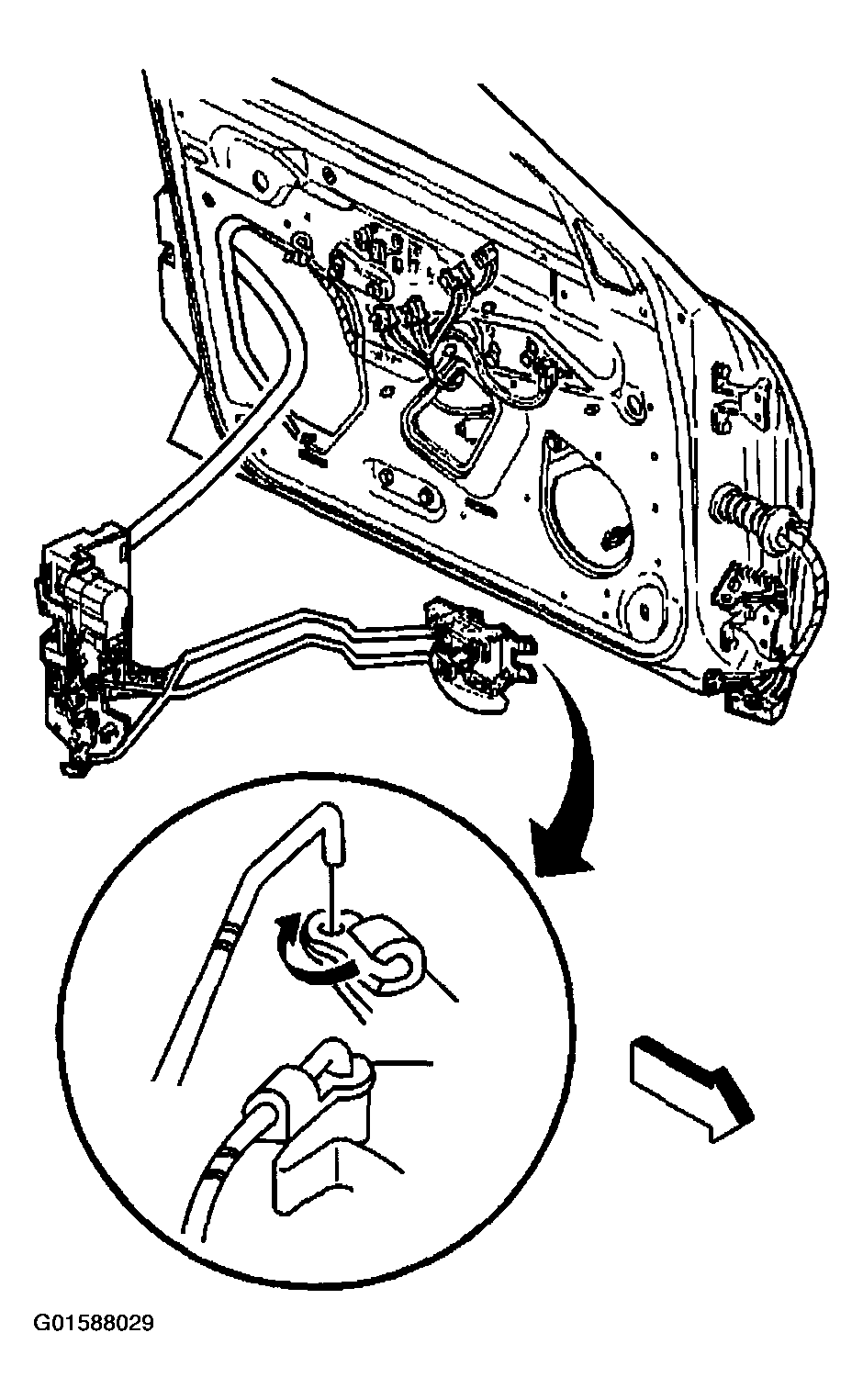

    3. Fig 1: Removing Front Door Inside Handle Rod
    G01588029Courtesy of GENERAL MOTORS CORP.
