Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  3. Remove the armrest bracket screws.
  4. Remove the armrest bracket.

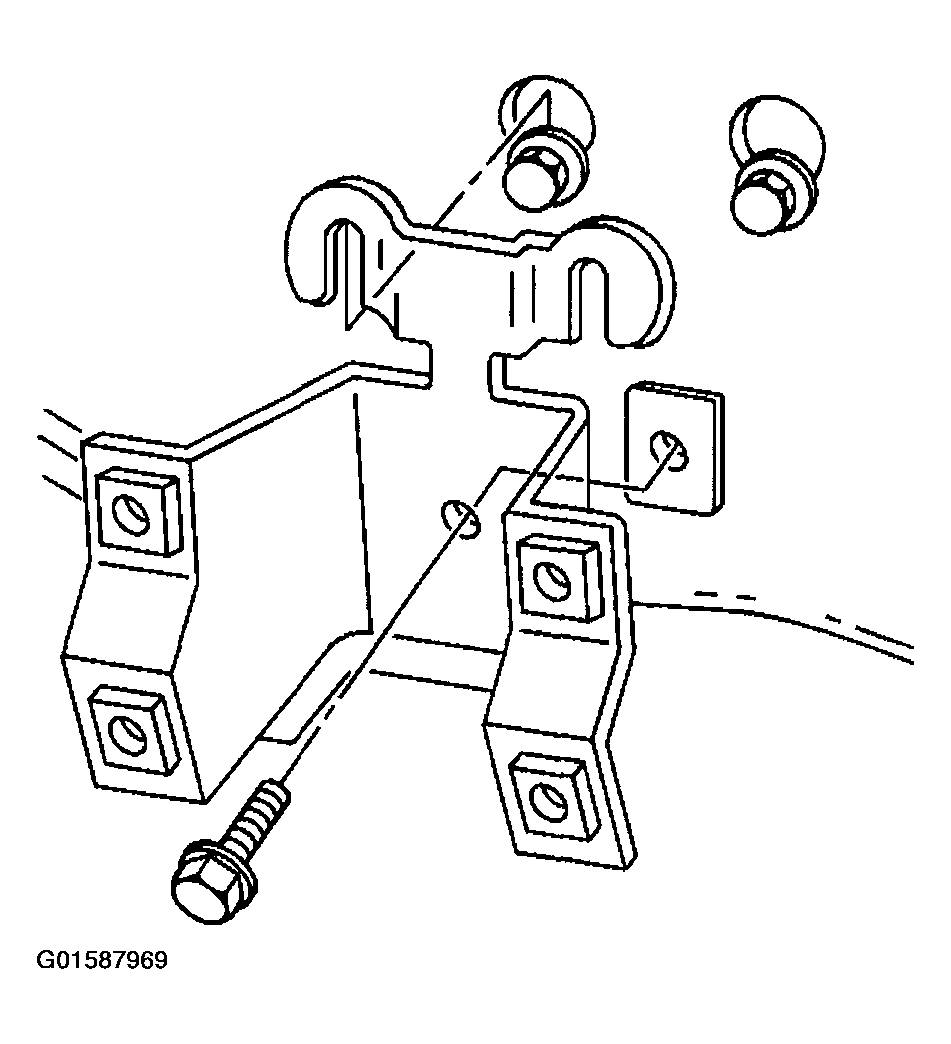

    5. Fig 1: Removing Armrest Bracket
    G01587969Courtesy of GENERAL MOTORS CORP.
