Installation Procedure

  1. Connect the electrical connector to the power front seat switch.

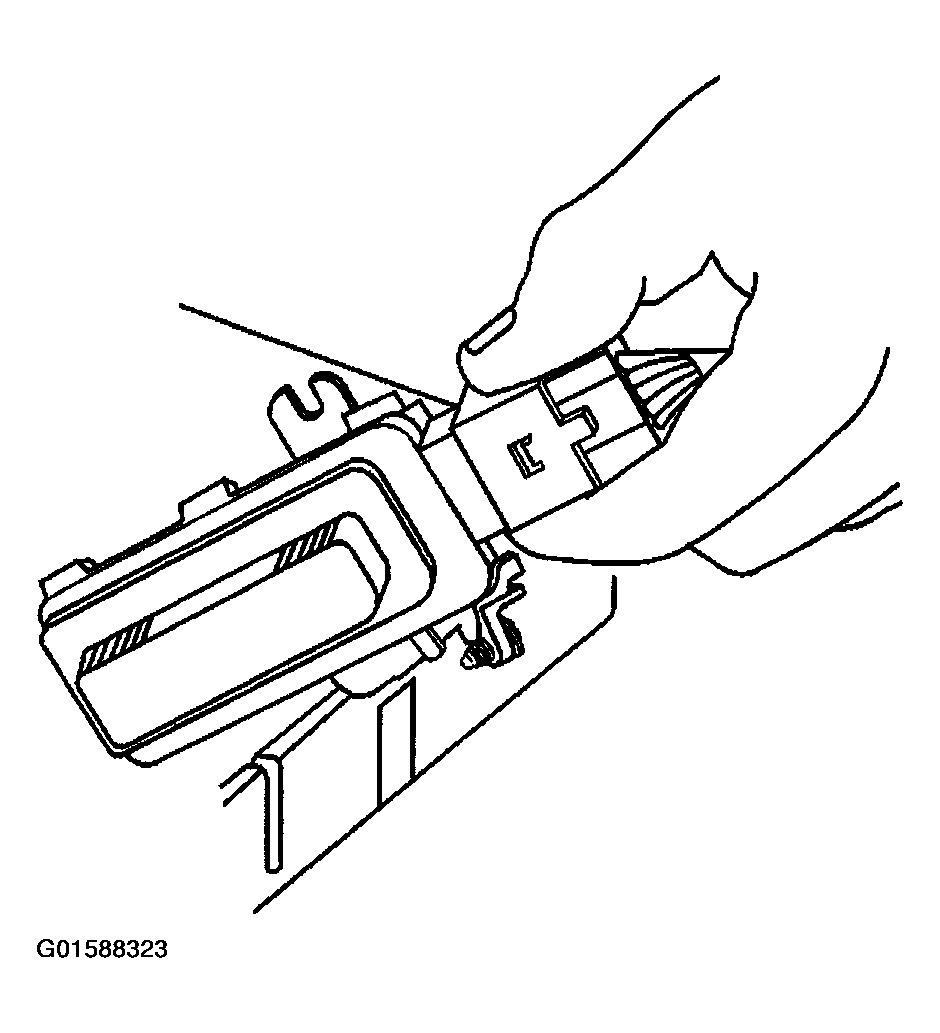

    Fig 1: Connecting Electrical Connector To Power Front Seat Switch
    G01588323Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the screws to the seat switch to the trim panel.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

    3. Fig 2: Installing Front Seat Cushion Outer Trim Panel
    G01588324Courtesy of GENERAL MOTORS CORP.
  3. Install the front seat cushion outer trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
