Installation Procedure

  1. Position the front seat into the vehicle.
  2. Tip the front seat forward to engage the front hook attachments.
  3. Connect the front seat electrical connectors.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

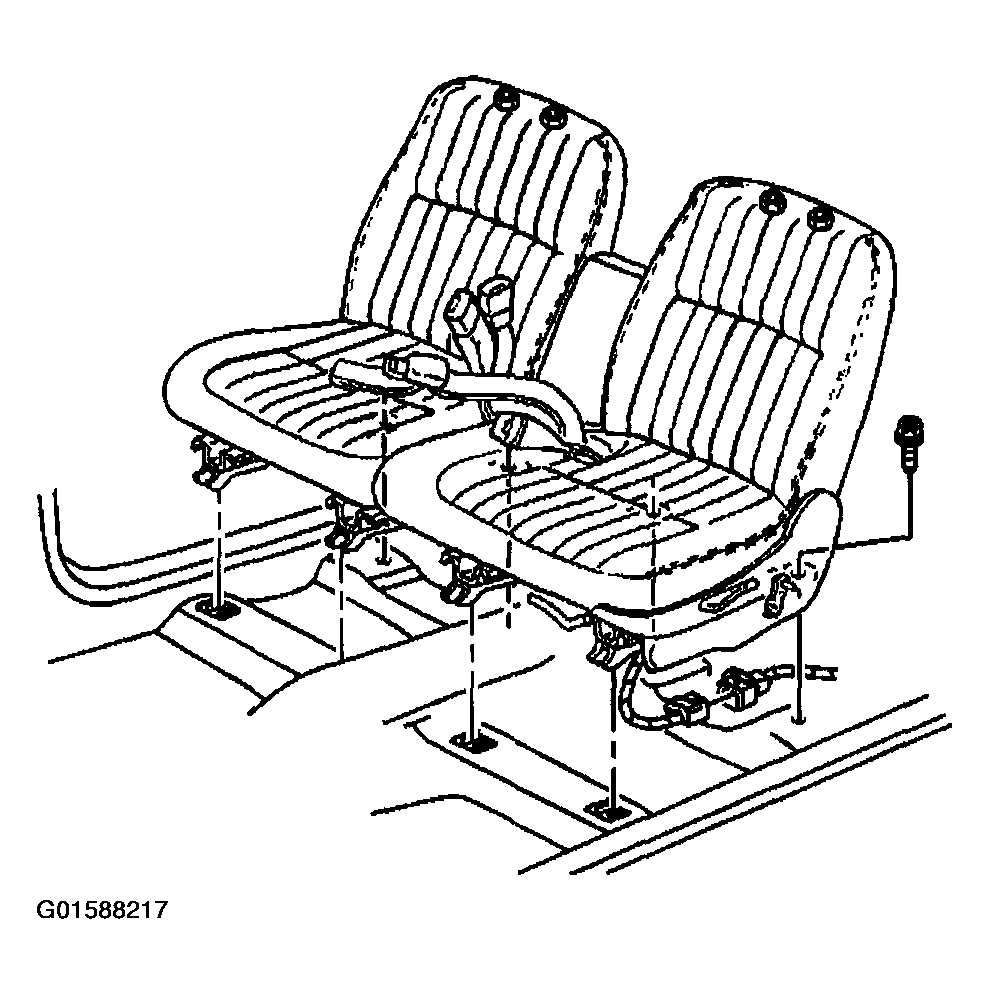

    4. Fig 1: Connecting Front Seat Electrical Connectors
    G01588217Courtesy of GENERAL MOTORS CORP.
  4. Install the bolt which secure the front seat adjuster to the floor pan.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

  5. Reposition the front seat to the full back position.
  6. Install the track adjuster covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT  .
  7. Install the nut to the seat belt anchor plate.

    Tighten

    Tighten the nut to 42 N.m (31 lb ft).

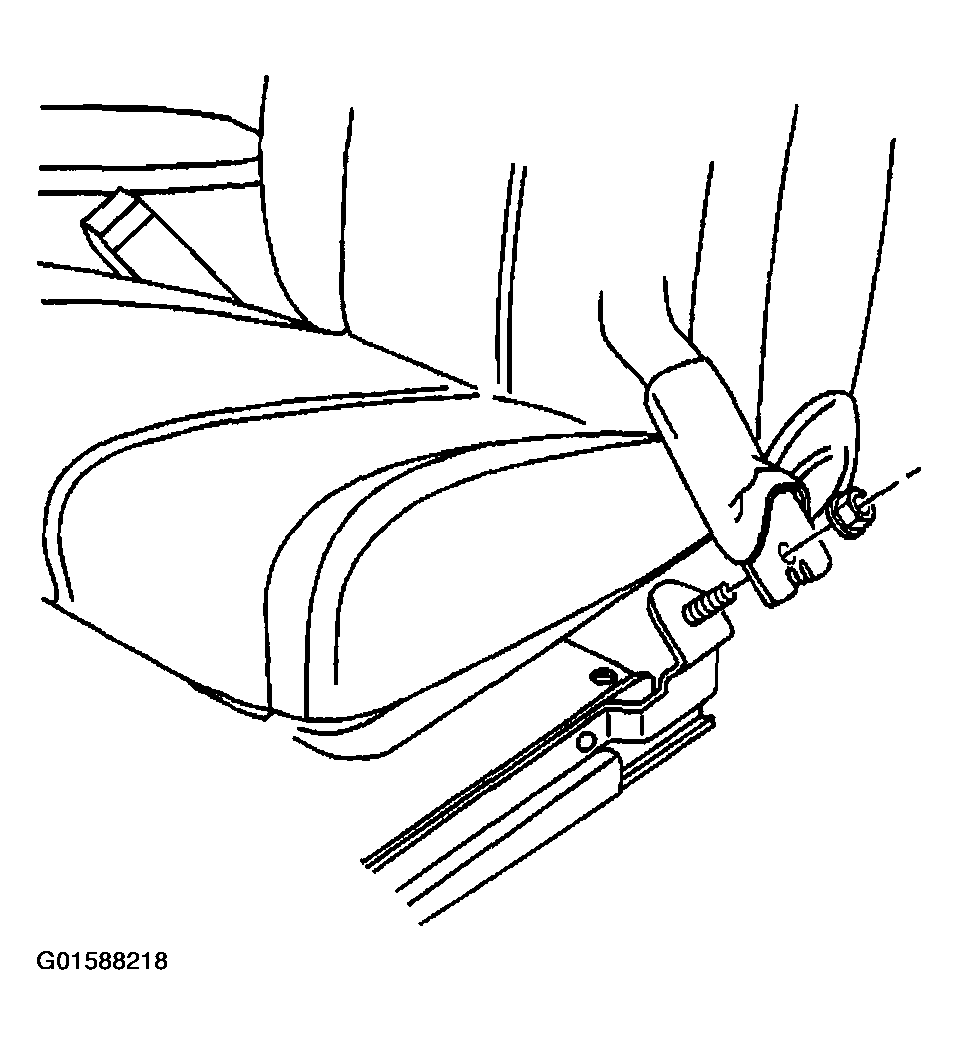

    8. Fig 2: Installing Nut To Seat Belt Anchor Plate
    G01588218Courtesy of GENERAL MOTORS CORP.
  8. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  9. Enable the SIR system if the seat is equipped with an air bag. Refer to ZONE 7 in SIR.
