Removal Procedure

  1. Position the seat to the full-up position.
  2. Remove the bolts that secure the front seat frame to the floor.
  3. Rotate the seat forward to access the heater module.
  4. Disconnect the seat electrical harness connector.
  5. Pinch the retaining pin (2) together and pull the module (1) out from the seat inboard frame.

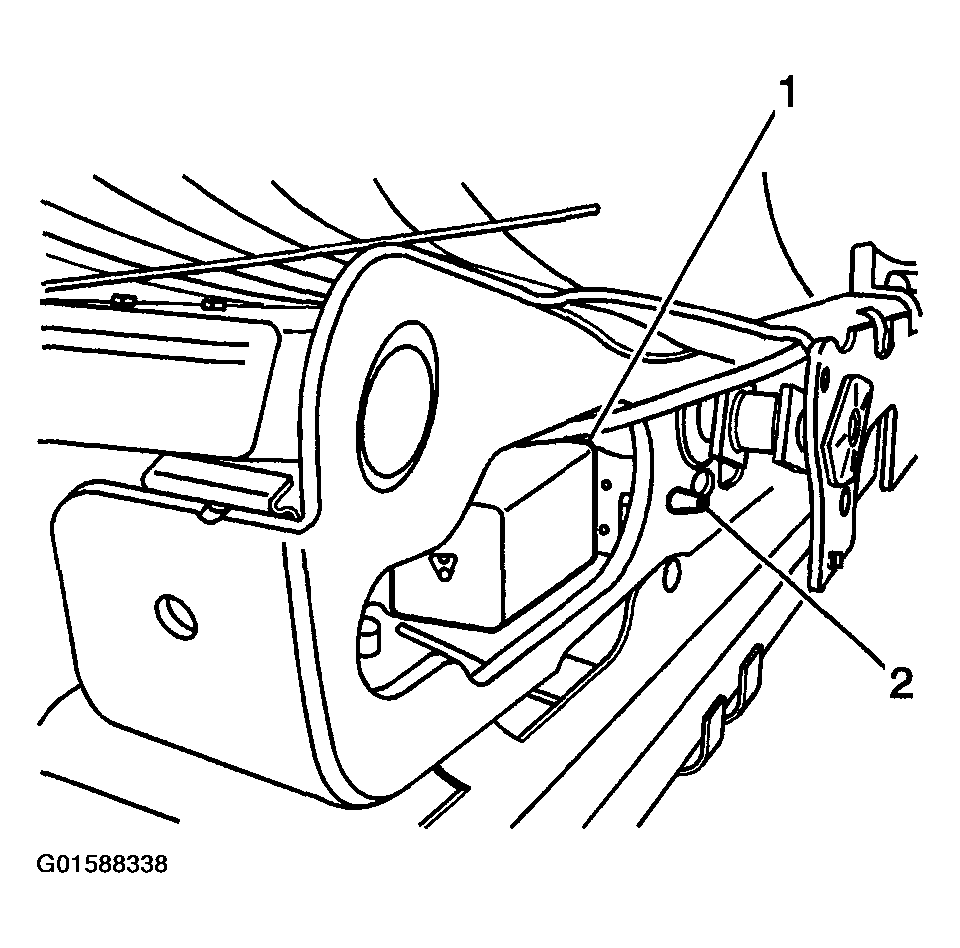

    6. Fig 1: Removing Retaining Pin And Module Out From Seat Inboard Frame
    G01588338Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical harness connector (1) from the heater module (2).
  7. Remove the heater module from the front seat.

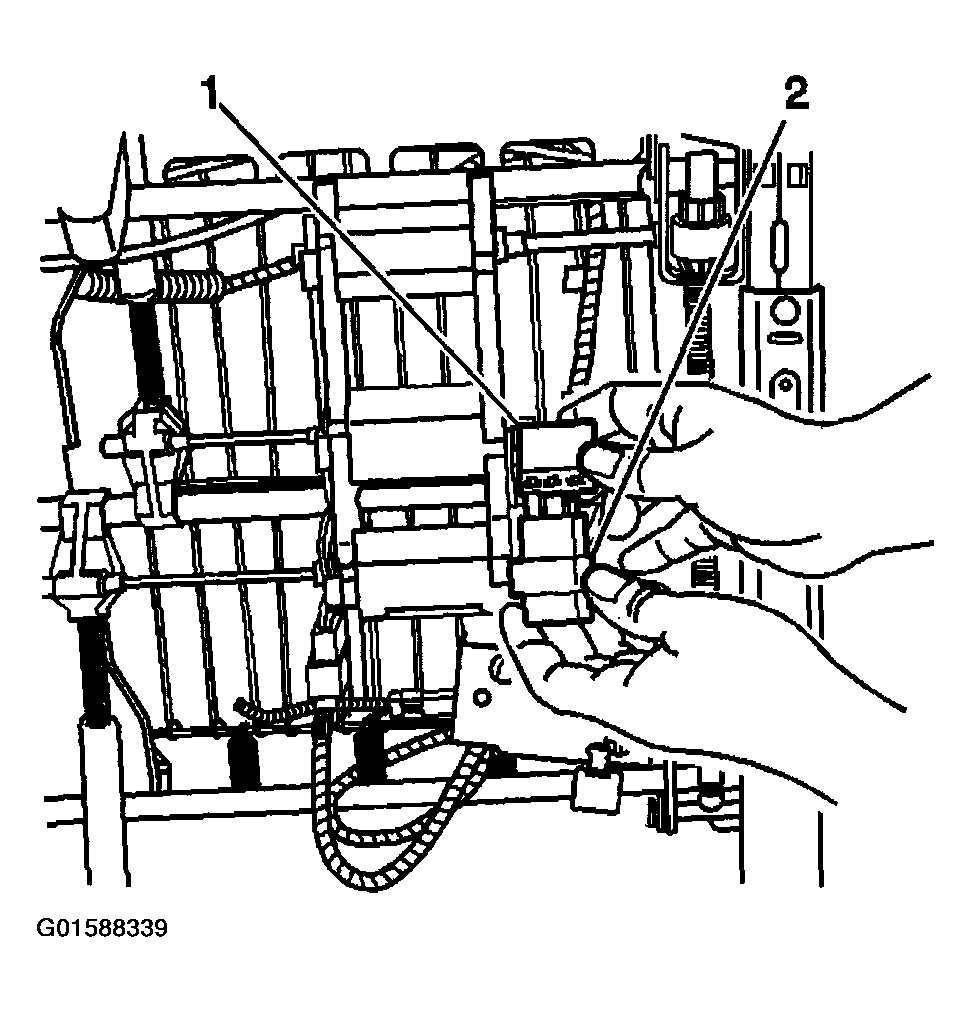

    8. Fig 2: Removing Heater Module From Front Seat
    G01588339Courtesy of GENERAL MOTORS CORP.
