Installation Procedure

  1. Insert the end of one cable (4) into the drive screw (3).

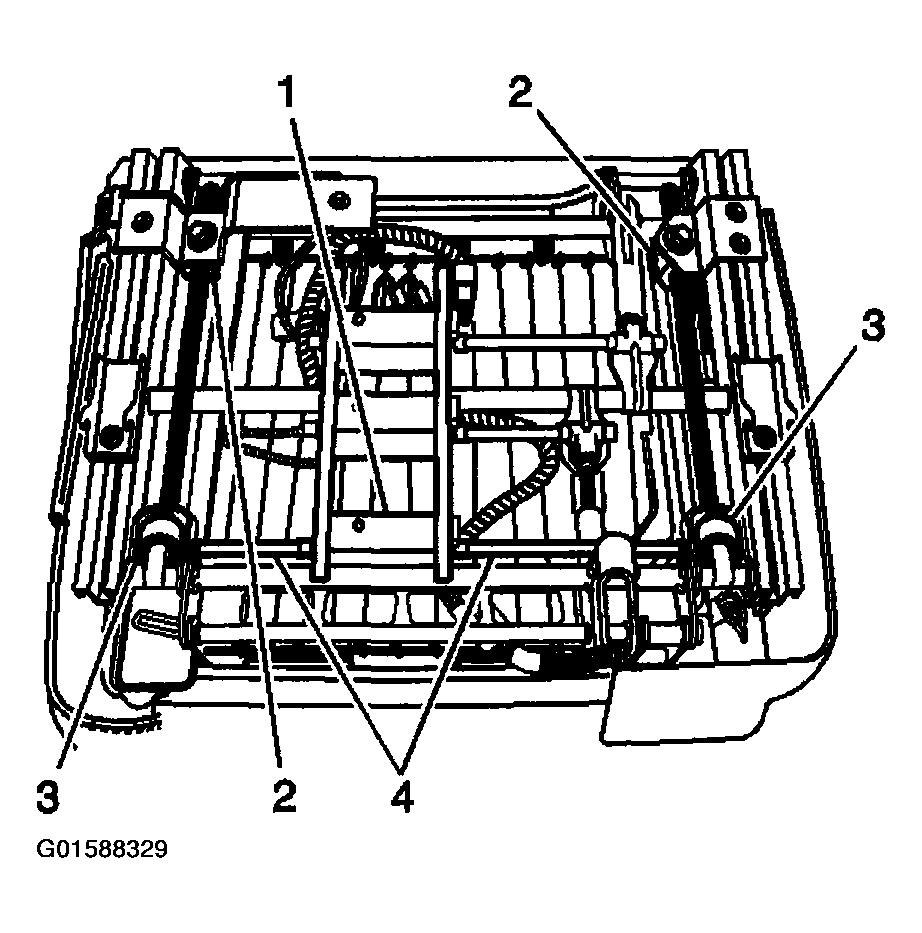

    2. Fig 1: Installing Cable To Vehicle
    G01588329Courtesy of GENERAL MOTORS CORP.
  2. Bend the cable and insert the other end into the motor (1).
    IMPORTANT: Examine all 4 drive cables to ensure that the cables are straight.
  3. Connect the electrical connector to the seat wire harness and test the seat for proper operation.
  4. Examine the horizontal drive cables for synchronization. Refer to SEAT ADJUSTER PHASE ADJUSTMENT - POWER  .
  5. Tip the seat forward and engage the seat hook attachments to the floor pan.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  6. Install the bolts that secure the adjuster to the floor pan.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

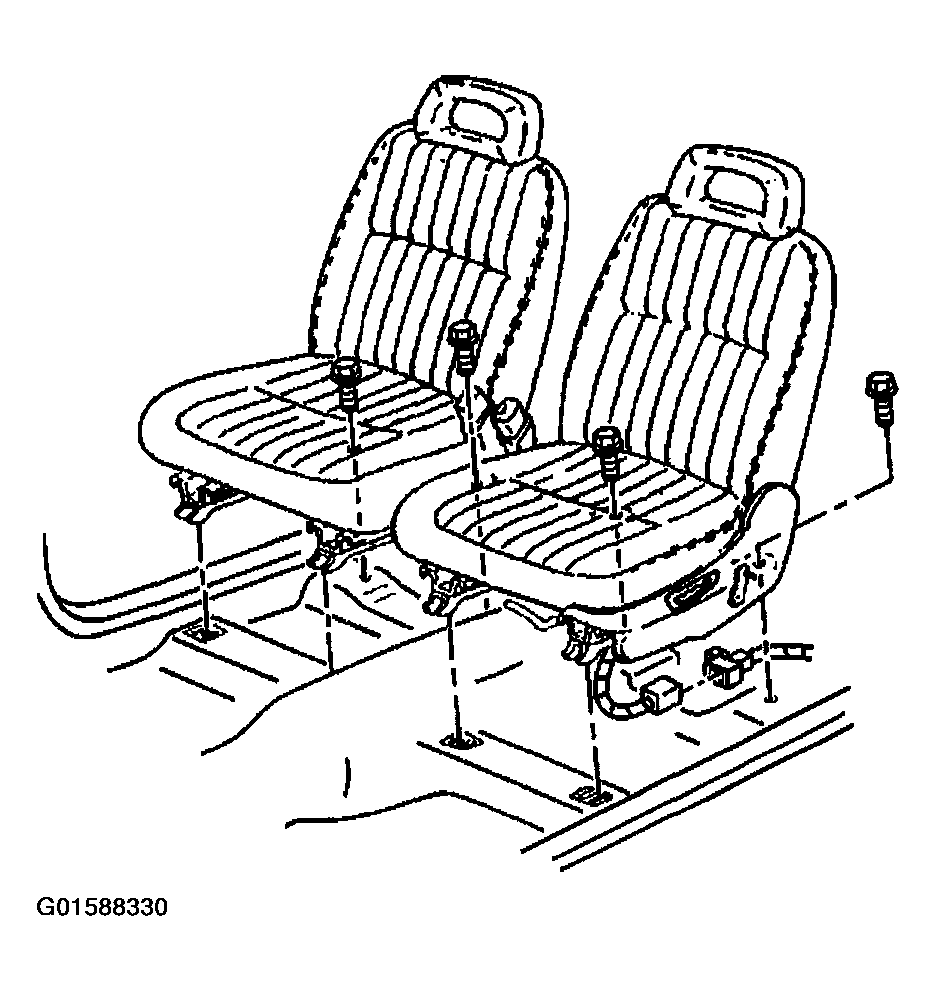

    7. Fig 2: Installing Bolts That Secure Adjuster To Floor Pan
    G01588330Courtesy of GENERAL MOTORS CORP.
