Power Seat Systems Connector End Views

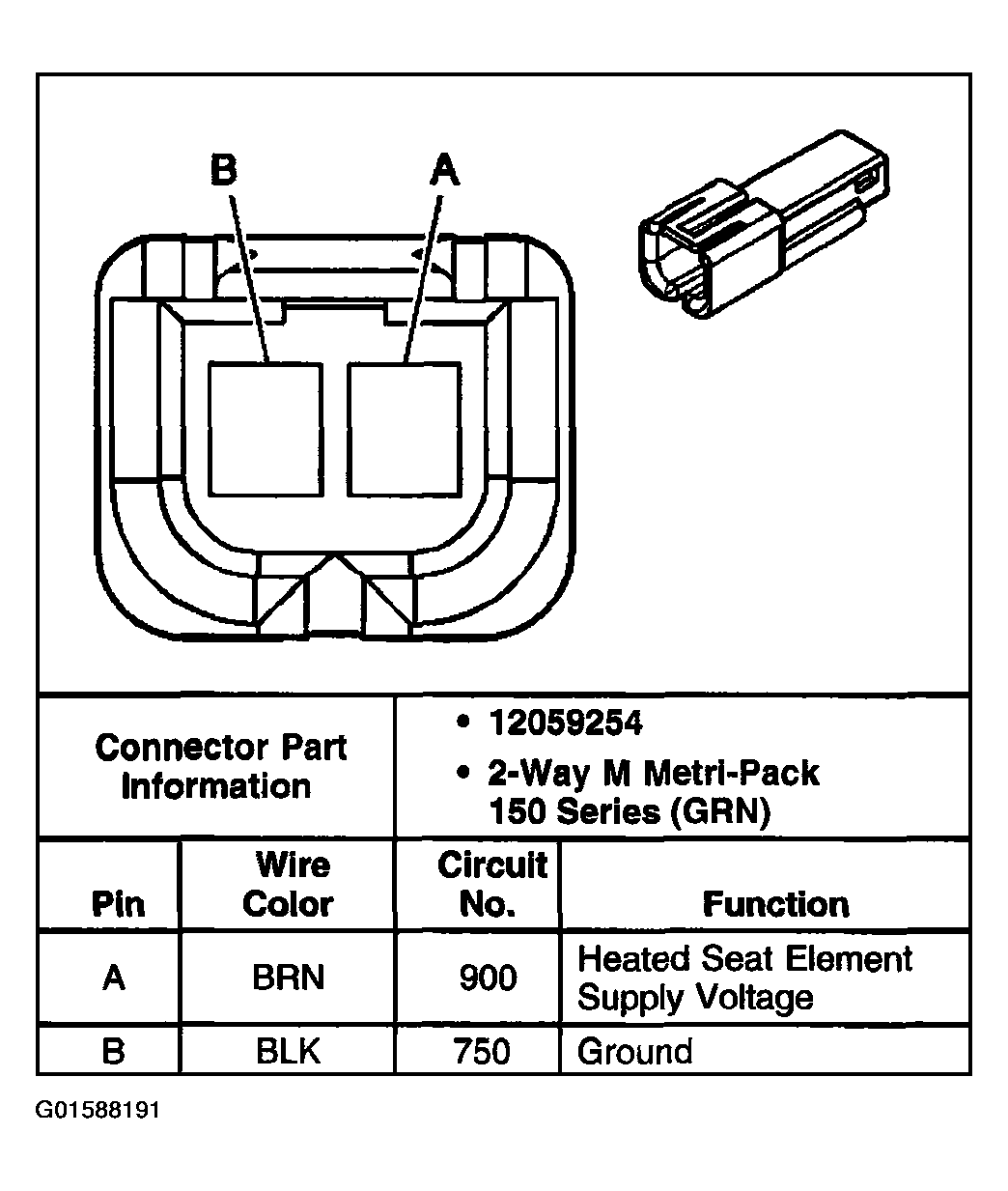

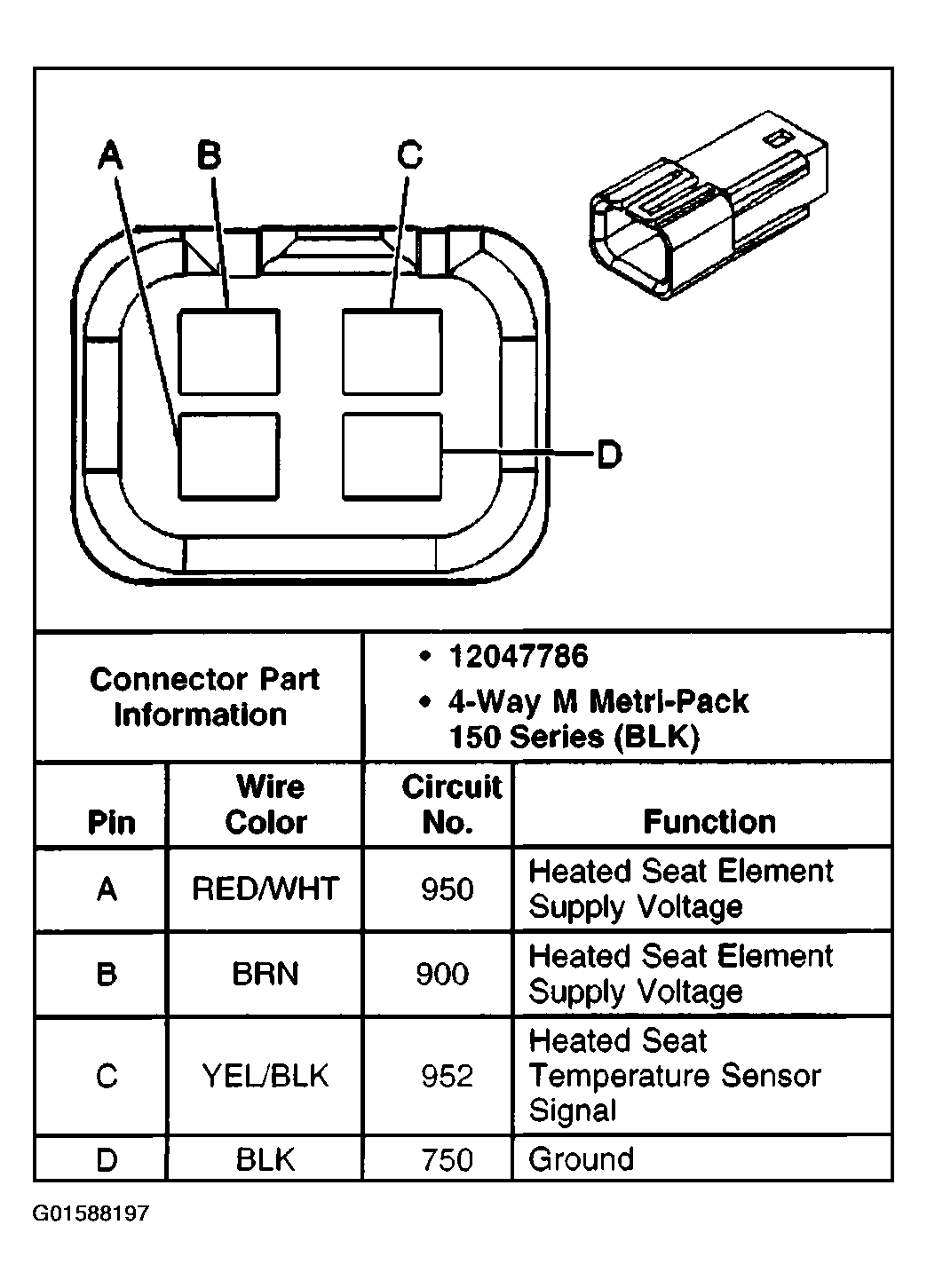

Fig 1: Heated Seat Back Element - Driver (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

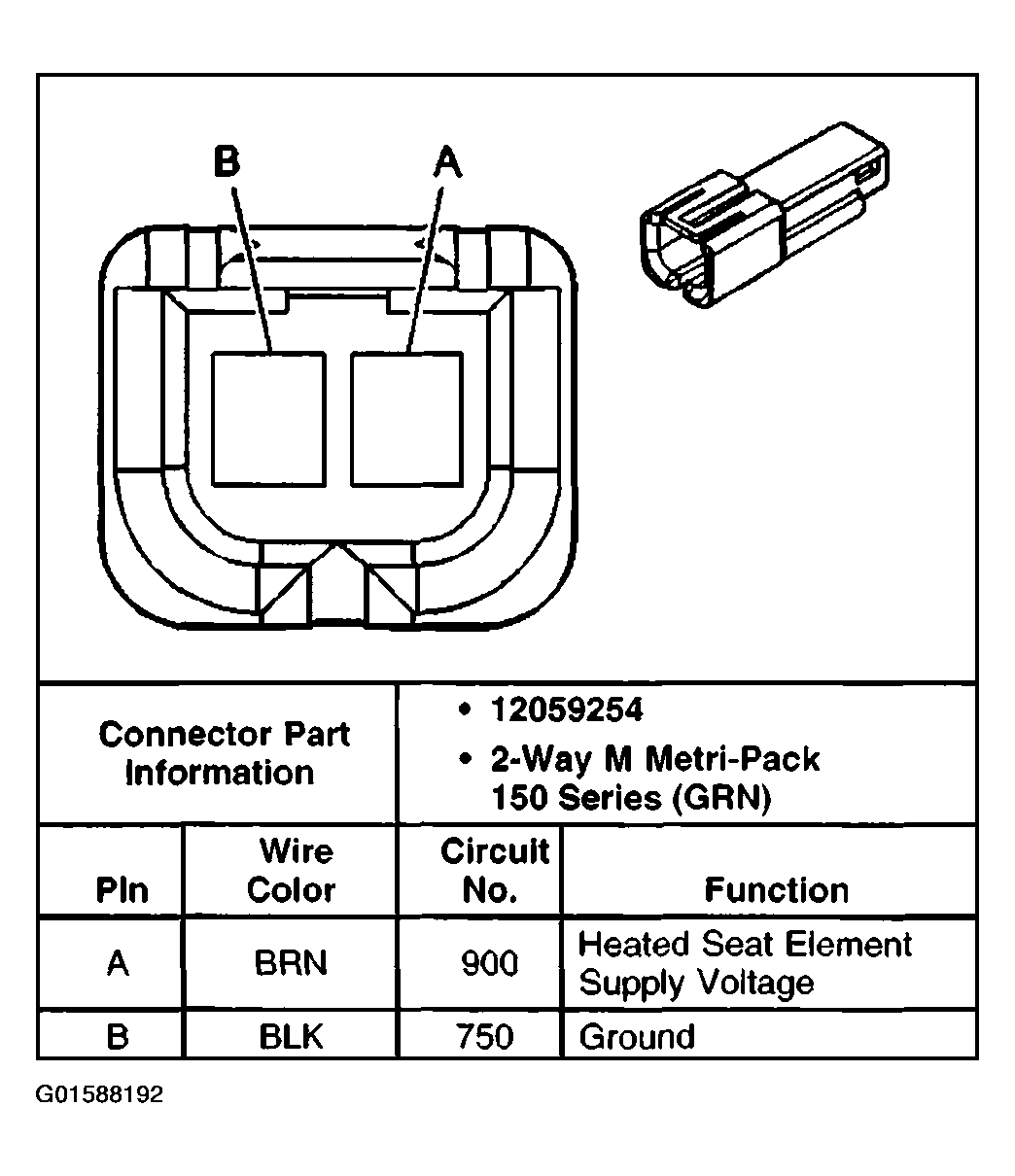

Fig 2: Heated Seat Back Element - Front Passenger (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

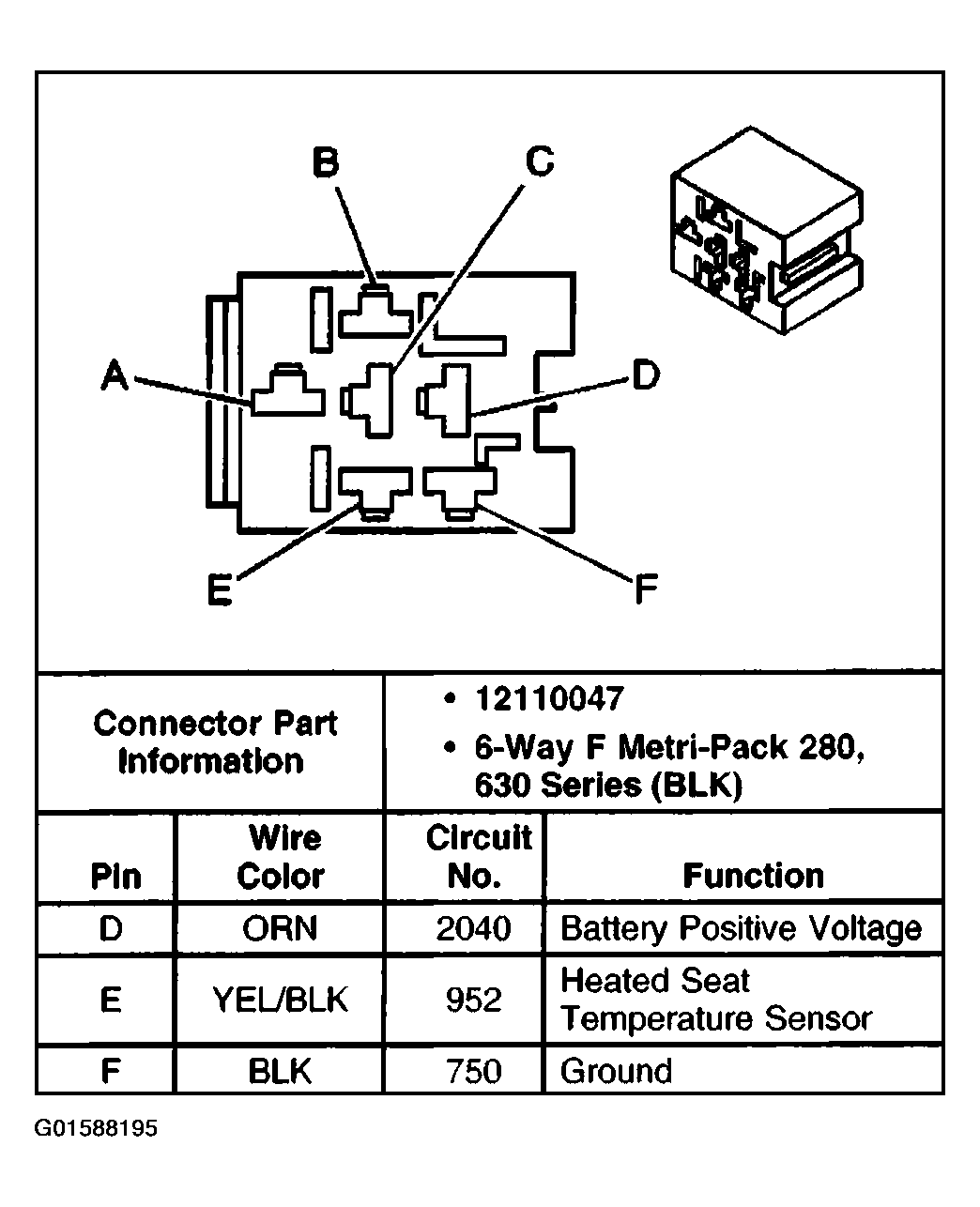

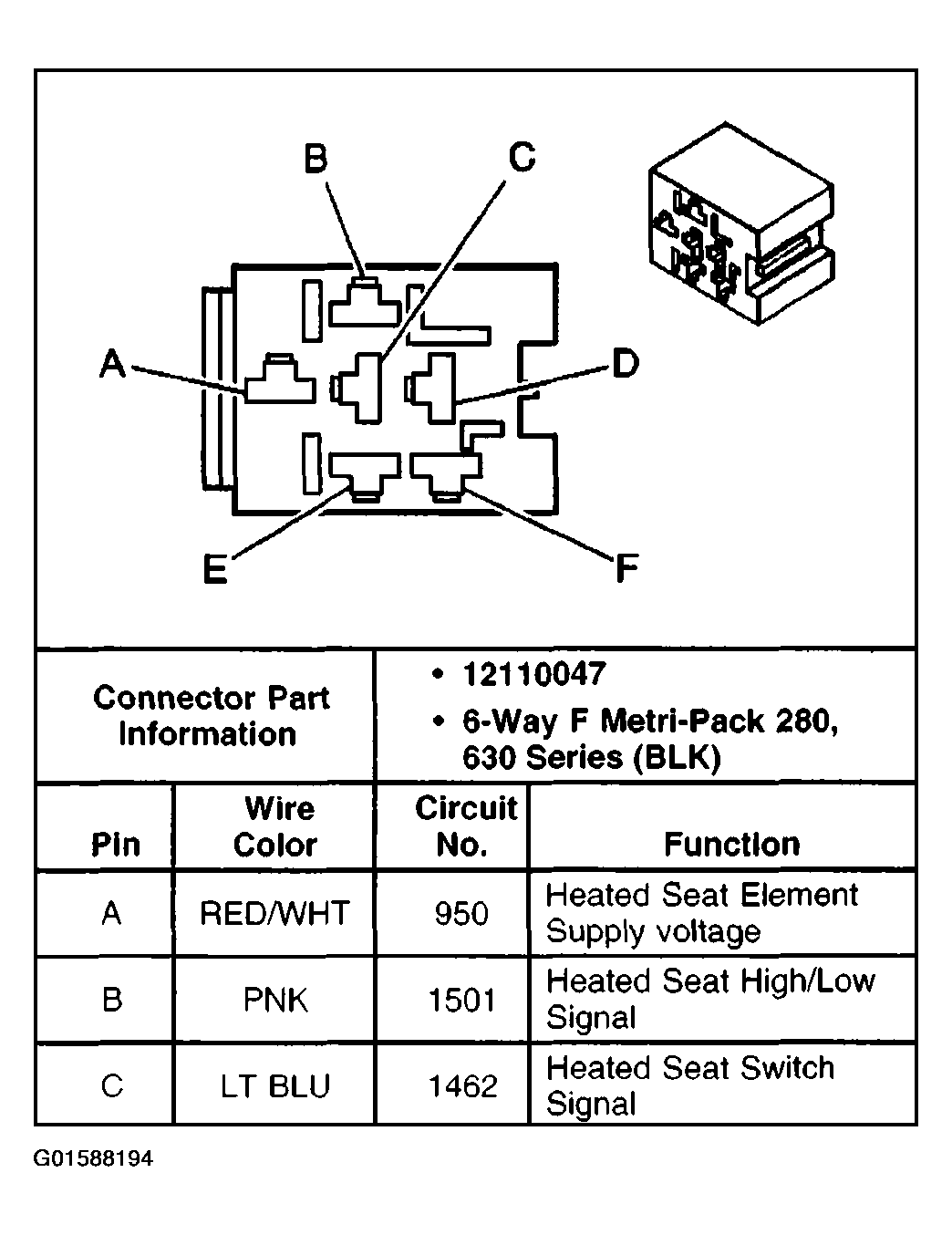

Fig 3: Heated Seat Control Module - Driver (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Heated Seat Control Module - Front Passenger (KA1) Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heated Seat Control Module - Front Passenger (KA1) Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

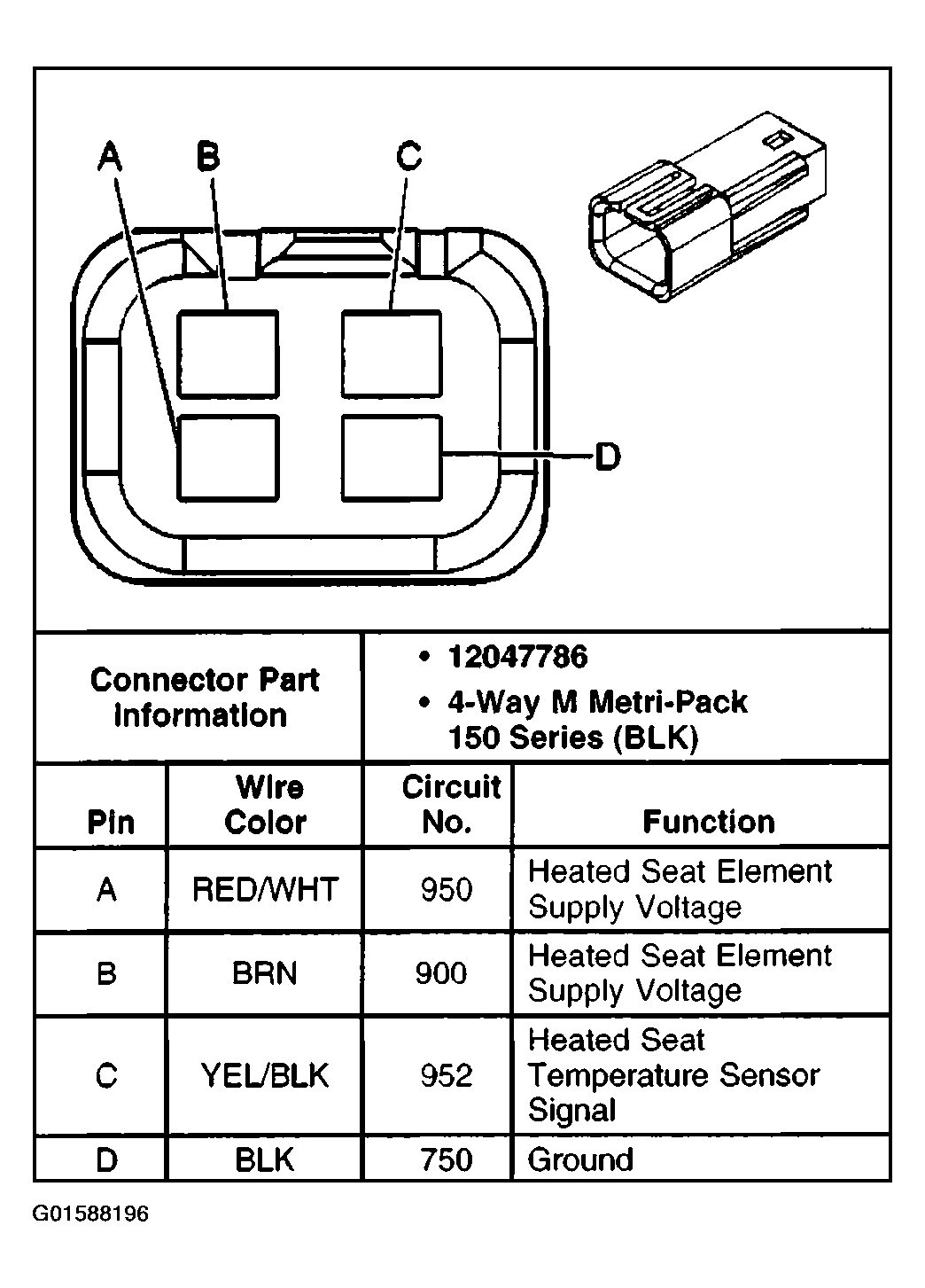

Fig 6: Heated Seat Cushion Cover - Driver (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 7: Heated Seat Cushion Cover - Front Passenger (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

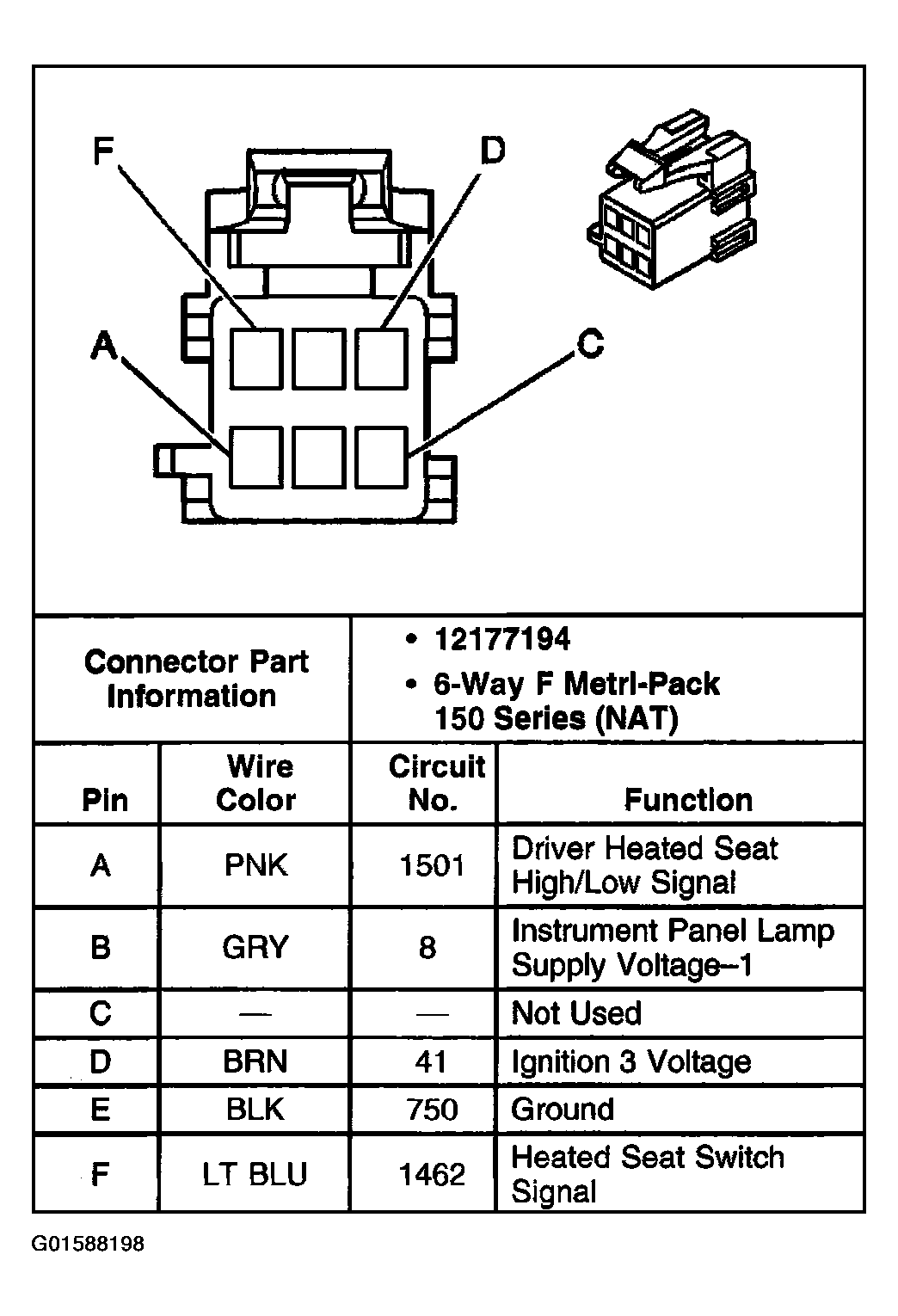

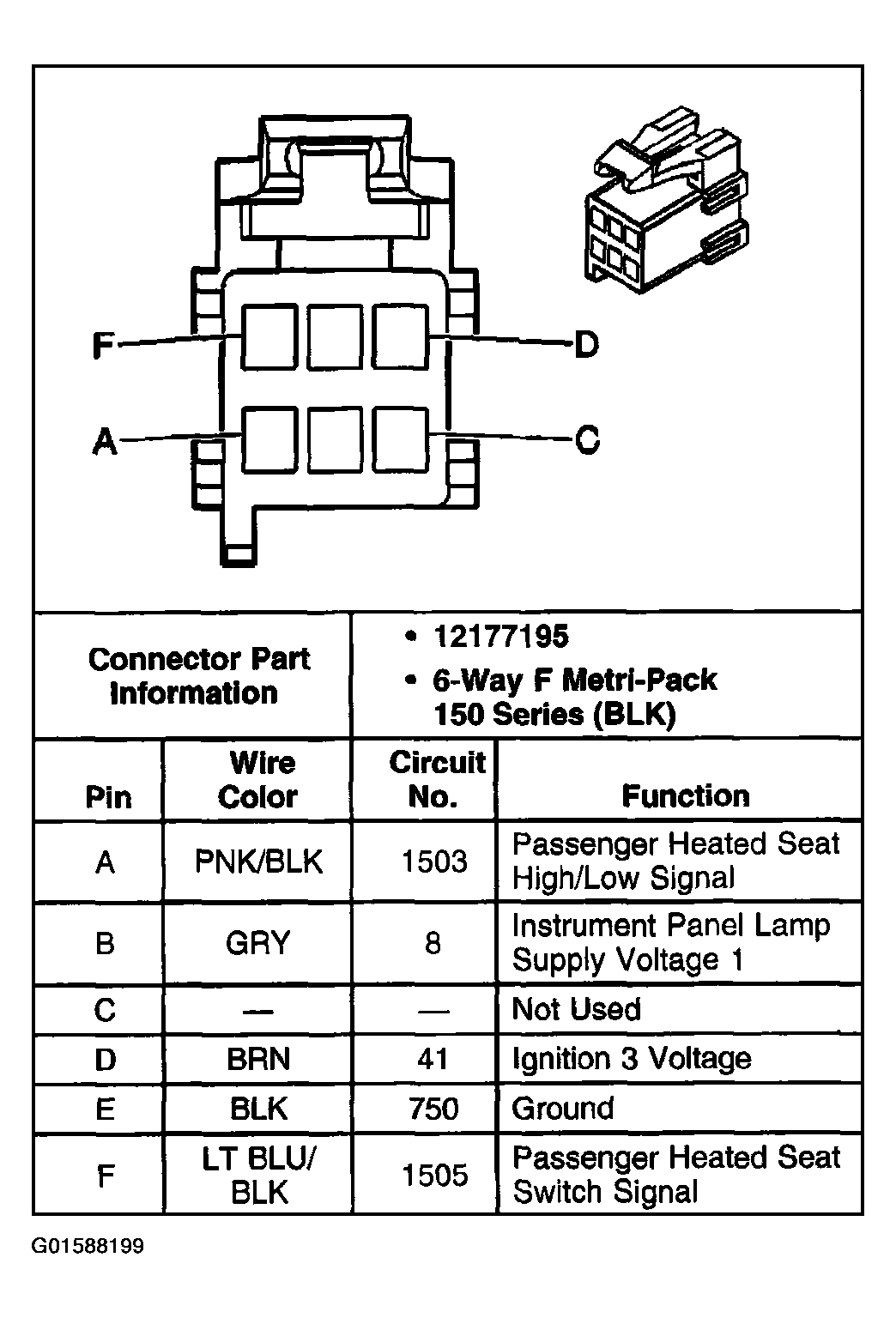

Fig 8: Heated Seat Switch - Driver (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 9: Heated Seat Switch - Front Passenger (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

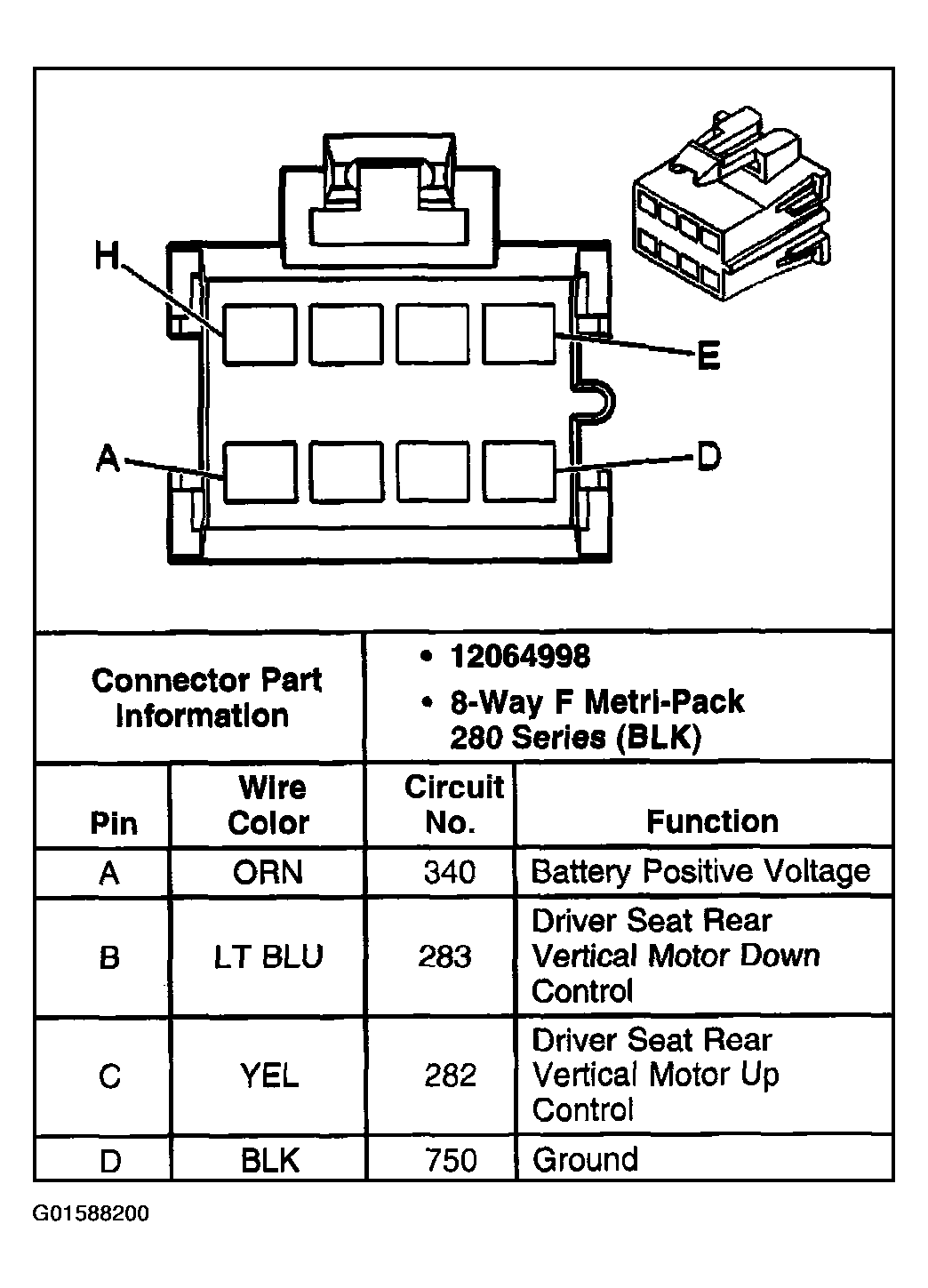

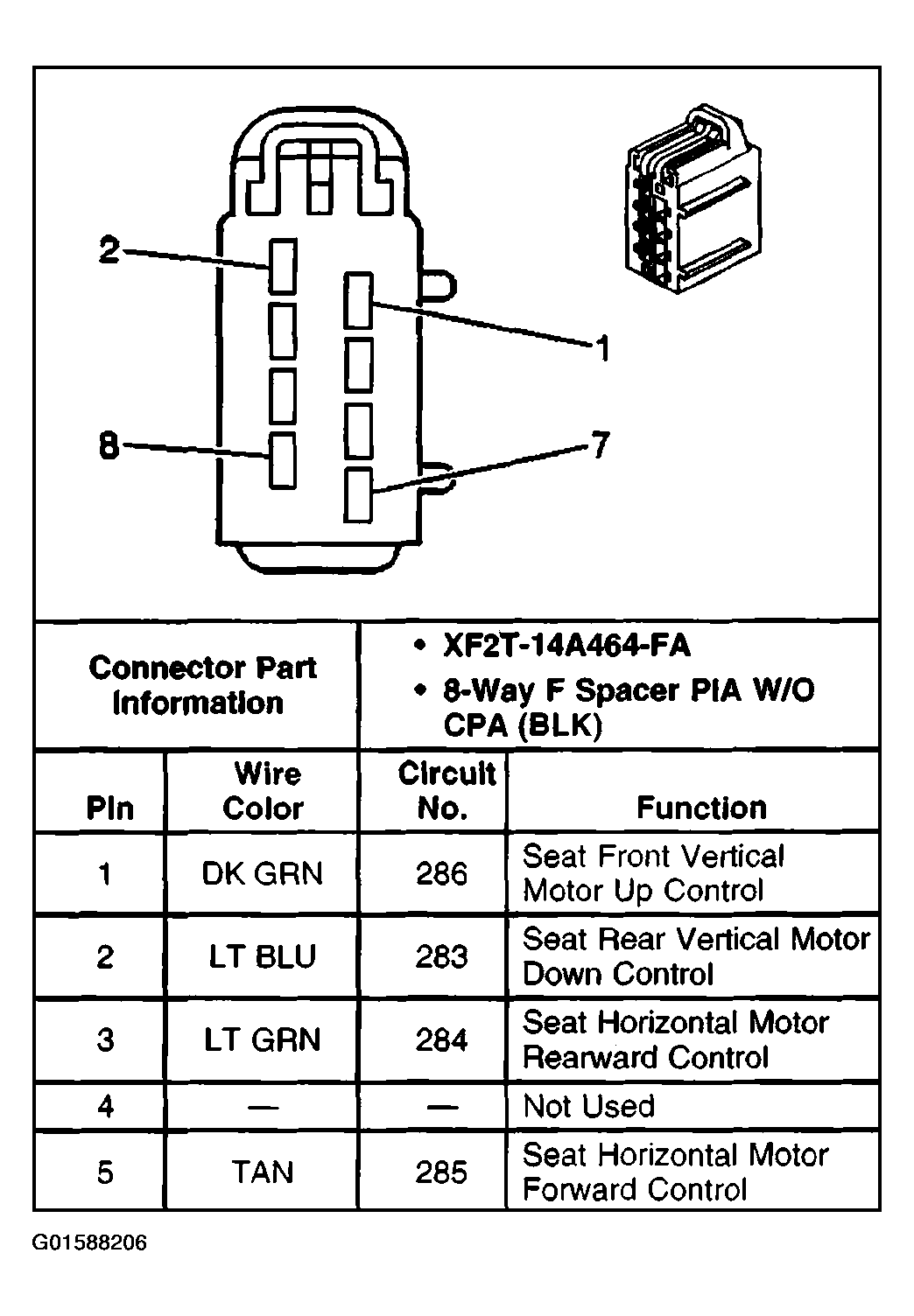

Fig 10: Seat Adjuster Switch - Driver Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

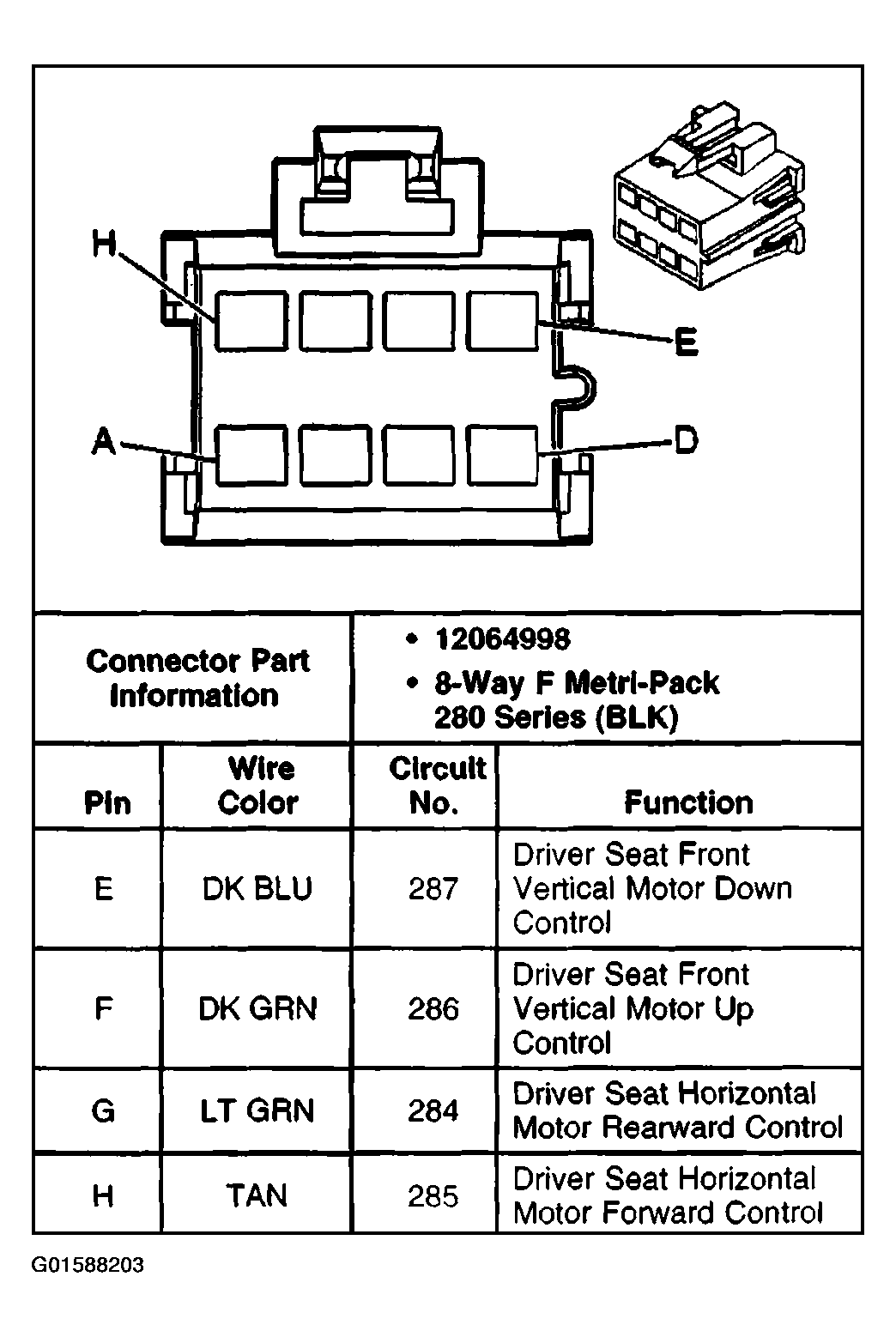

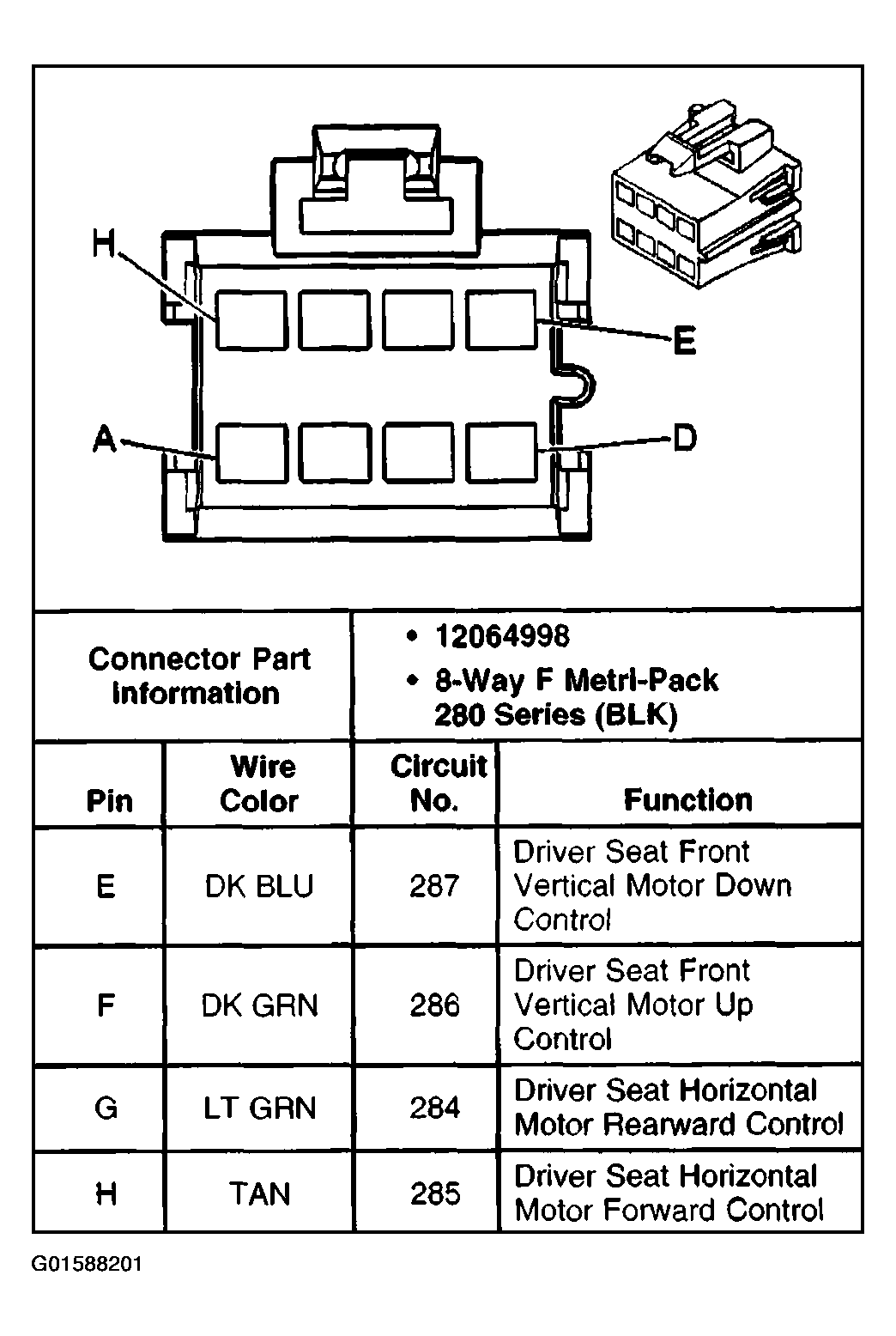

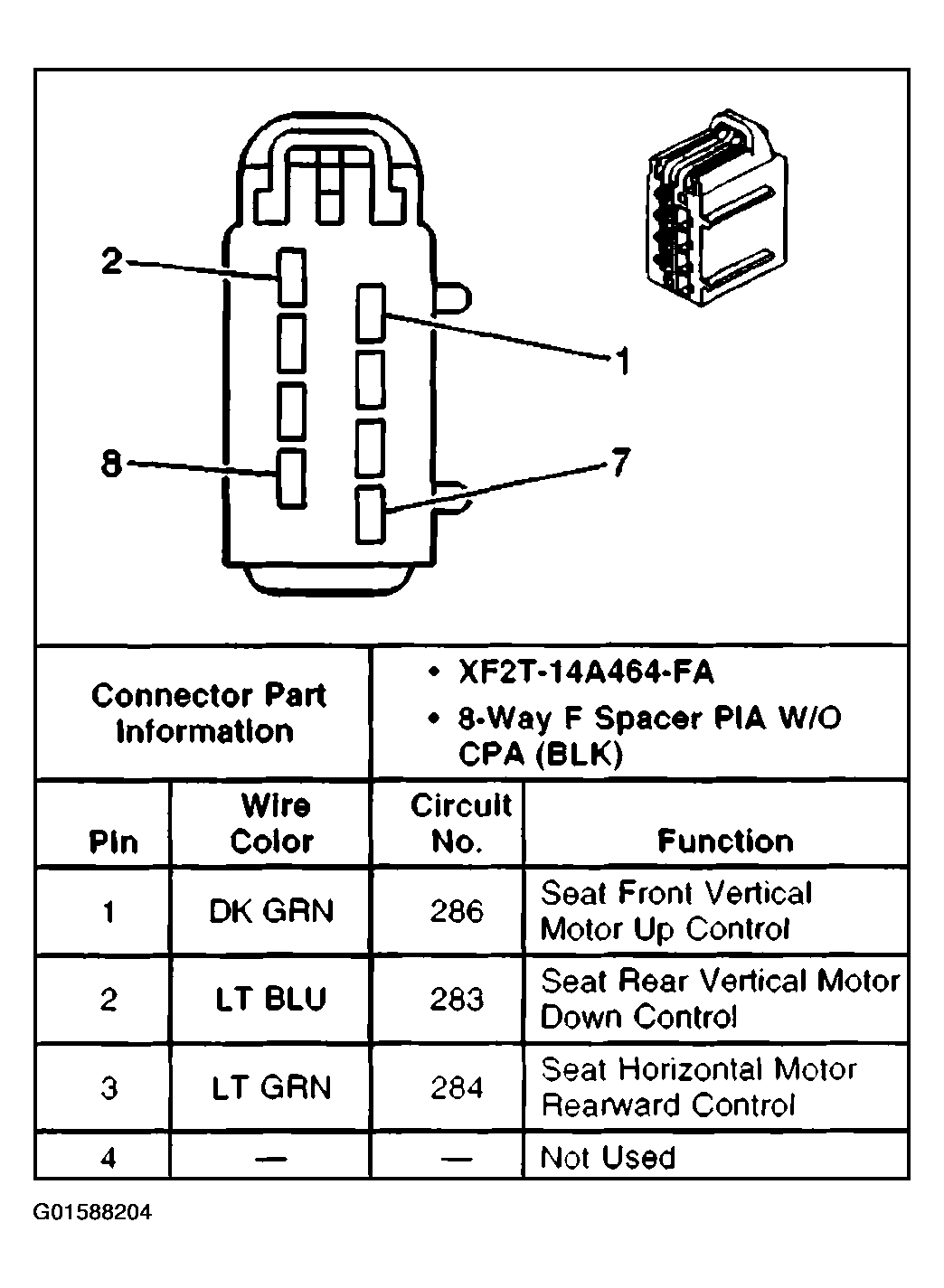

Fig 11: Seat Adjuster Switch - Driver Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

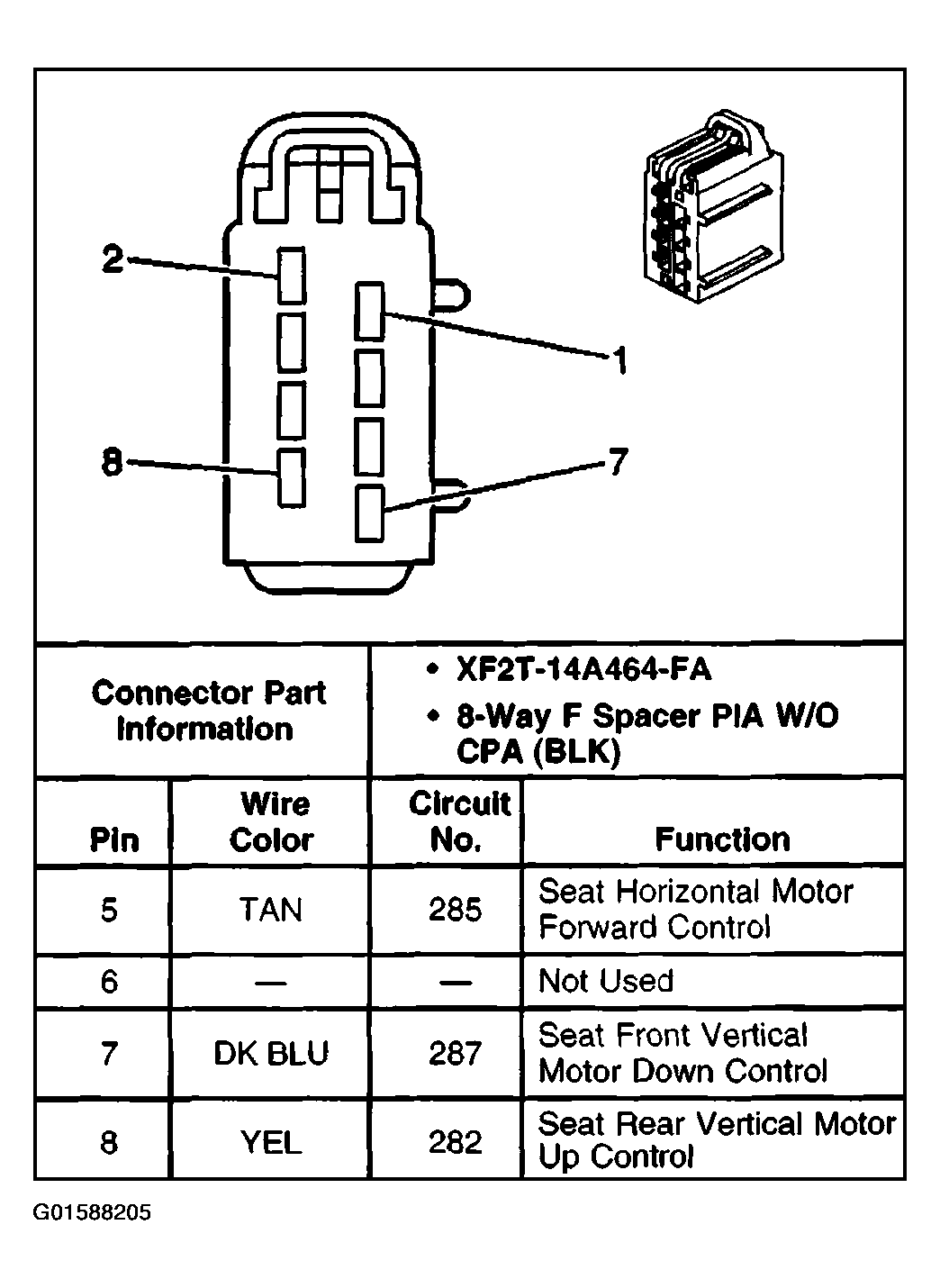

Fig 12: Seat Adjuster Switch - Front Passenger Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 13: Seat Adjuster Switch - Front Passenger Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

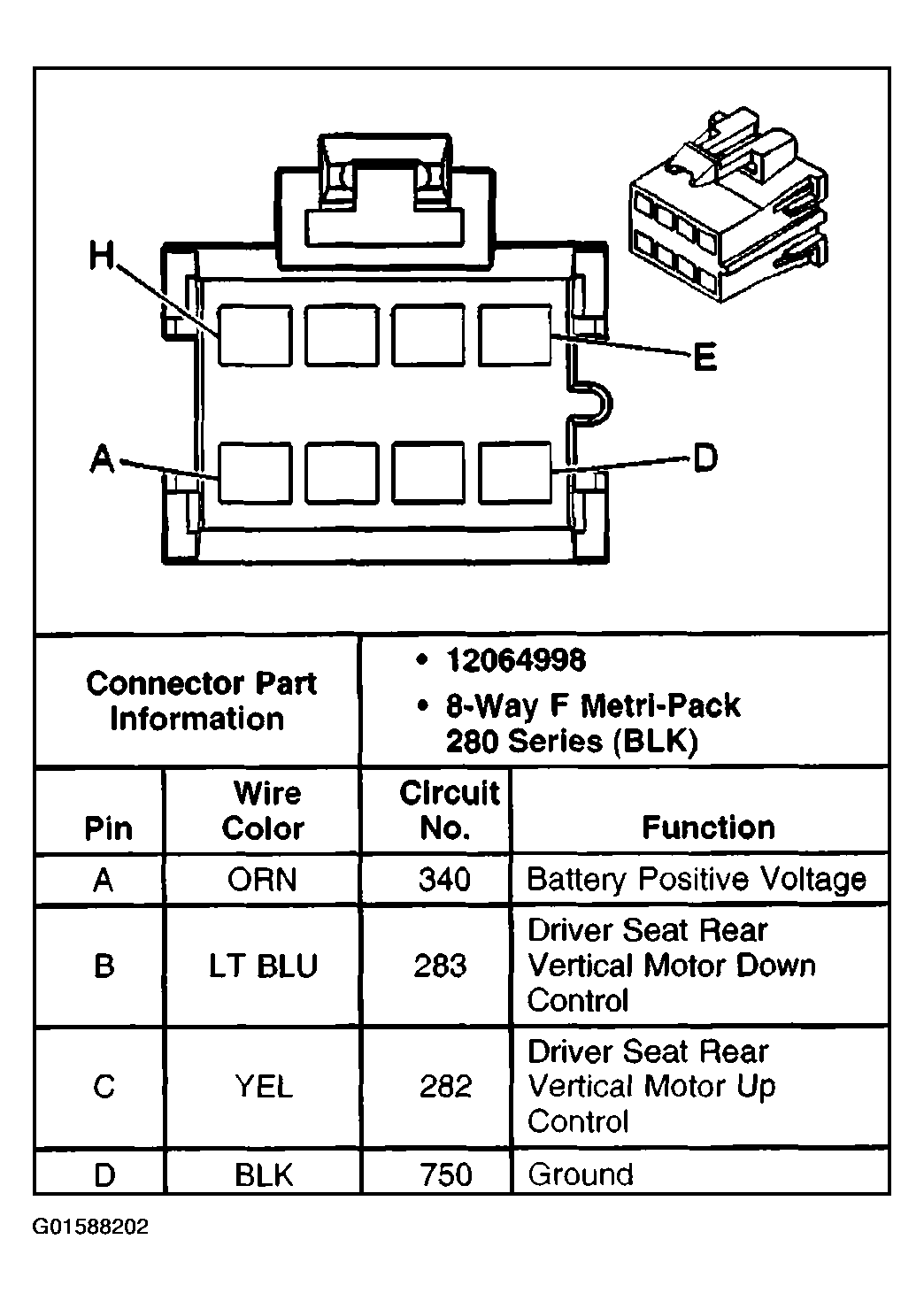

Fig 14: Seat Adjuster Motor Assembly - Driver Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Seat Adjuster Motor Assembly - Driver Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

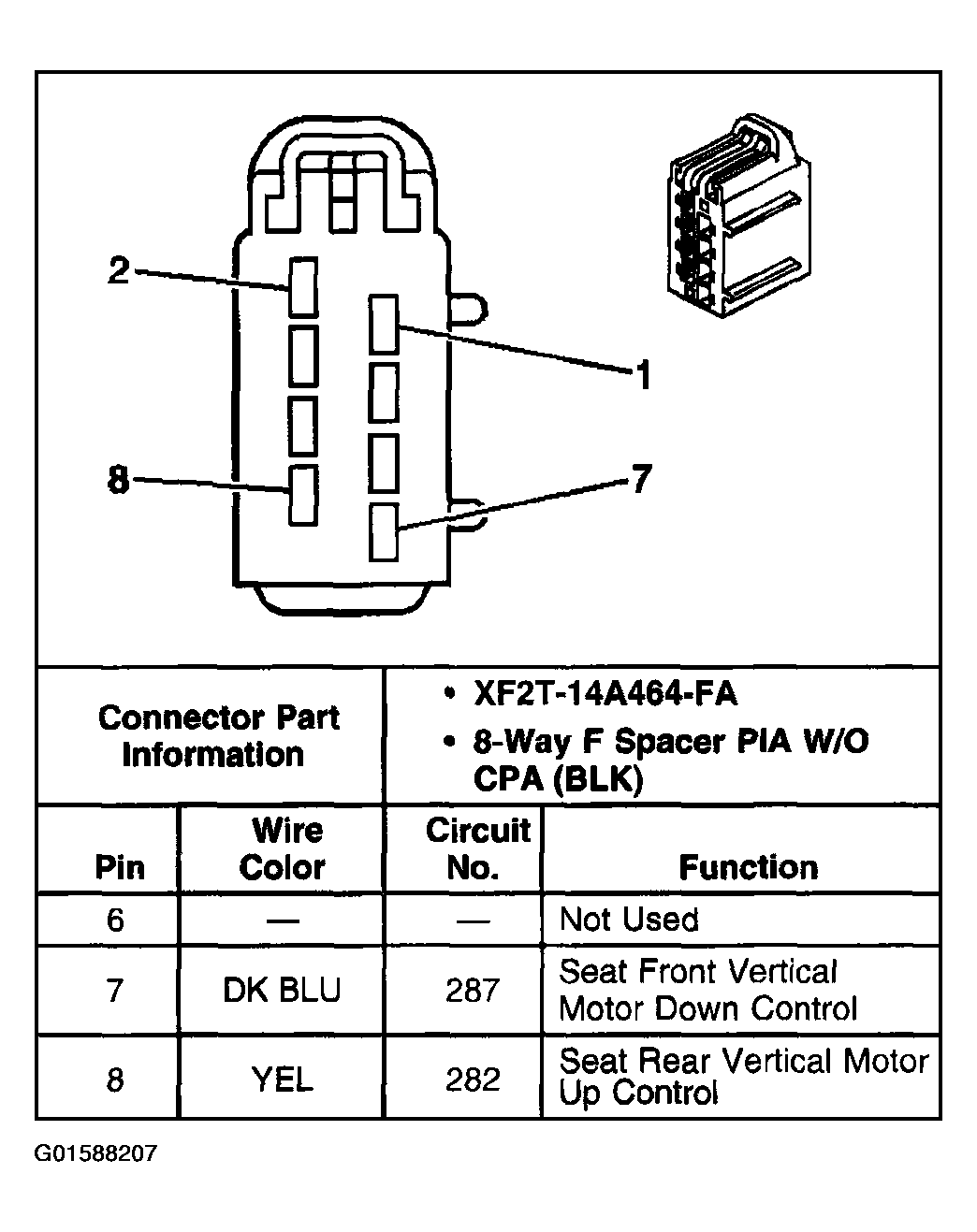

Fig 16: Seat Adjuster Motor Assembly - Front Passenger Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Seat Adjuster Motor Assembly - Front Passenger Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
