Removal Procedure

  1. Remove the rubber conduit. Refer to RUBBER CONDUIT REPLACEMENT - FRONT DOOR  .
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  4. Remove the rear door inner sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT INNER  .
  5. Remove the rear door outer sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  6. Remove the stationary window molding.
  7. Remove the rear door frame molding. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR FRAME  .
  8. Remove the window. Refer to WINDOW REPLACEMENT - REAR DOOR  .
  9. Remove the outside door handle. Refer to DOOR HANDLE REPLACEMENT - REAR OUTSIDE  .
  10. Remove the inside door handle. Refer to DOOR HANDLE REPLACEMENT - REAR INSIDE  .
  11. Remove the lock. Refer to LOCK REPLACEMENT - REAR DOOR  .
  12. Remove the door window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW  .
  13. Remove the window regulator. Refer to WINDOW REGULATOR REPLACEMENT - REAR DOOR  .
  14. Disconnect the wiring harness.
  15. Support the door.
  16. Remove the intermediate door hinge bolts (1).

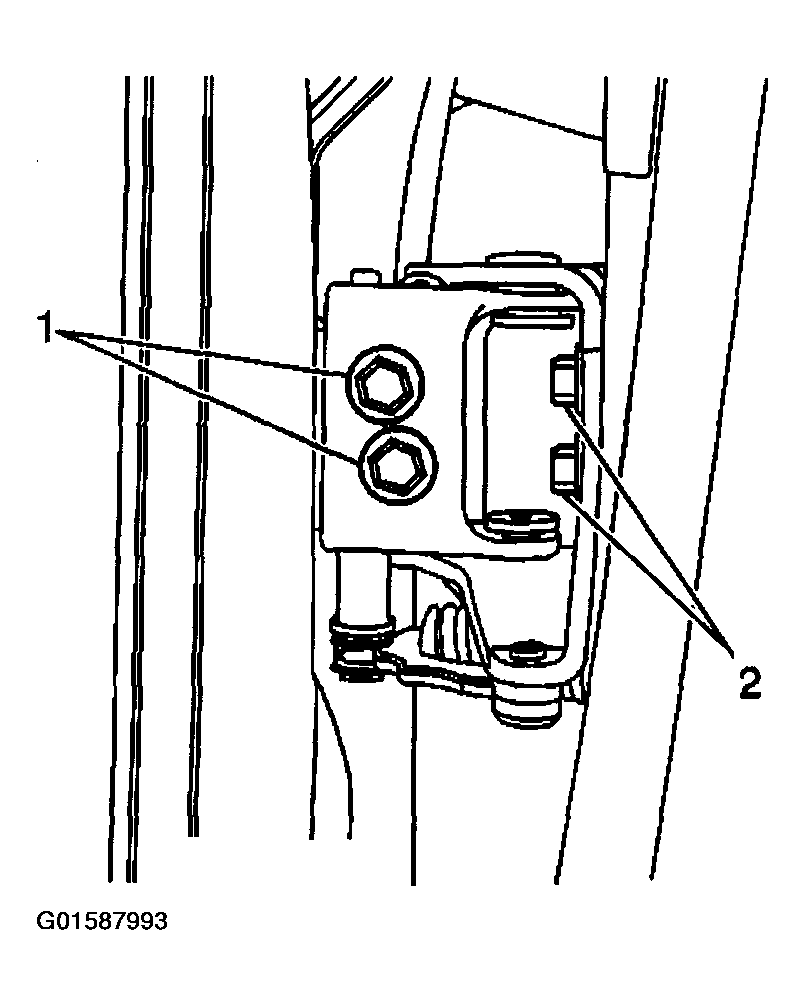

    17. Fig 1: Removing Intermediate Door Hinge Bolts
    G01587993Courtesy of GENERAL MOTORS CORP.
  17. Remove the door.
