Installation Procedure

Connect the electrical connector and the coaxial cable connector to the radio.
Install the radio to the I/P.

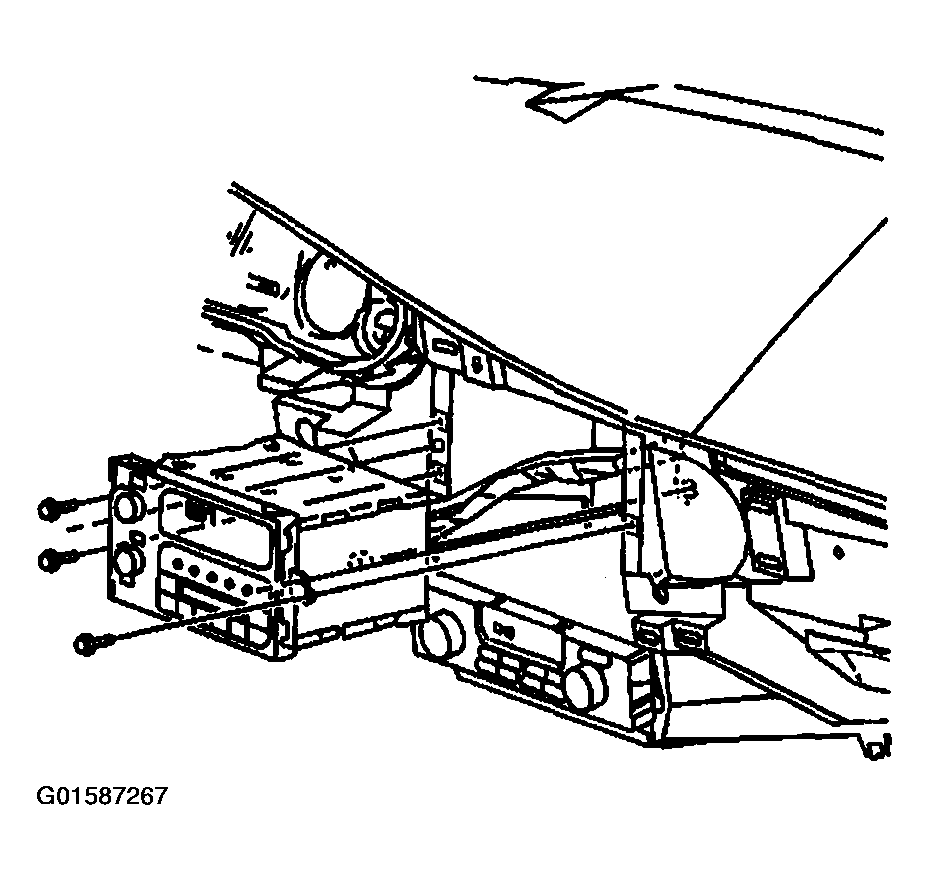

Fig 1: Installing Radio & Retaining Screws
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the radio screws.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.
