Cruise Control Connector End Views

Fig 1: Cruise Control Module (CCM) Connector End View
G01587624Courtesy of GENERAL MOTORS CORP.

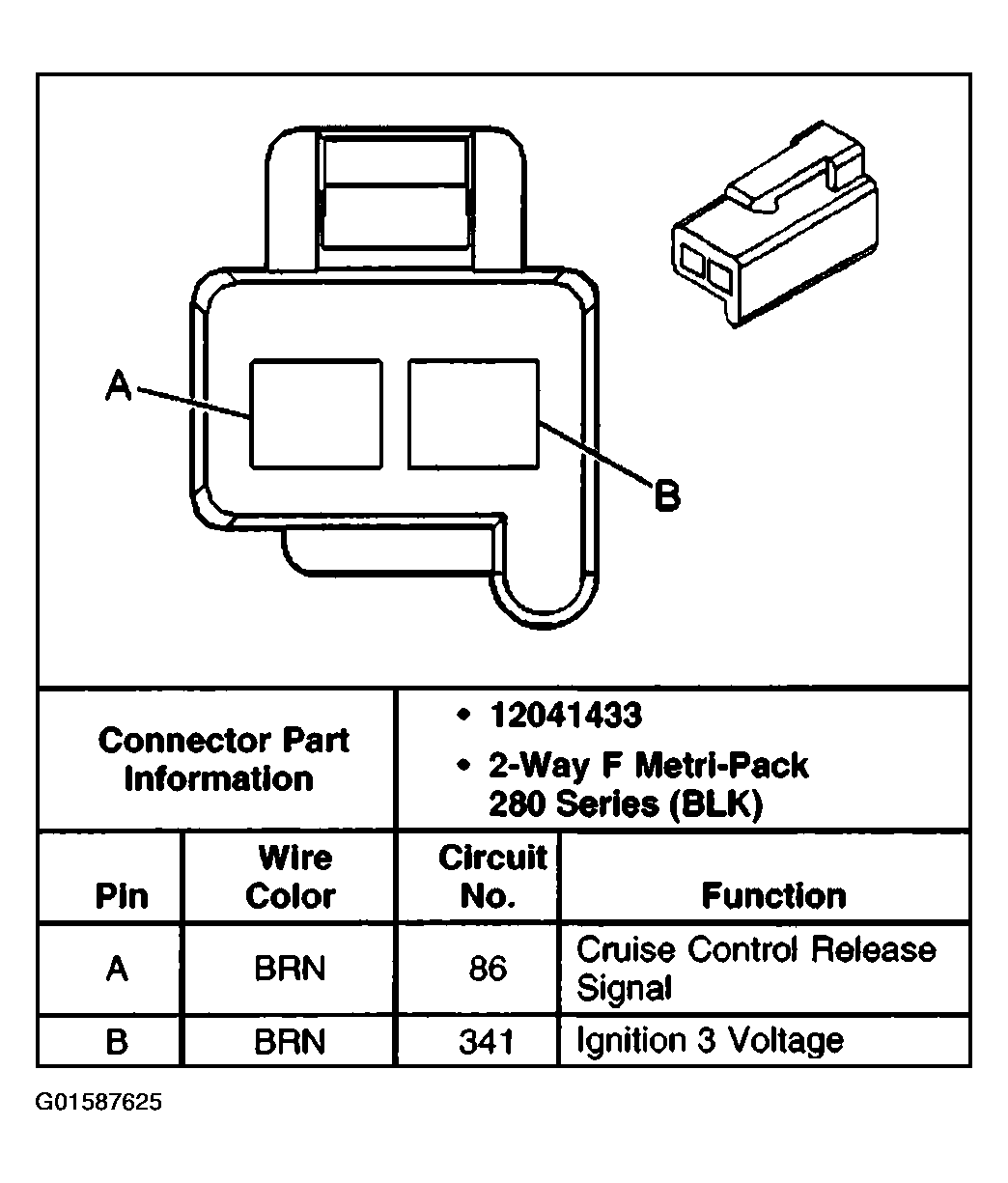

Fig 2: Cruise Control Release Switch Connector End View
G01587625Courtesy of GENERAL MOTORS CORP.
