Schematic and Routing Diagrams

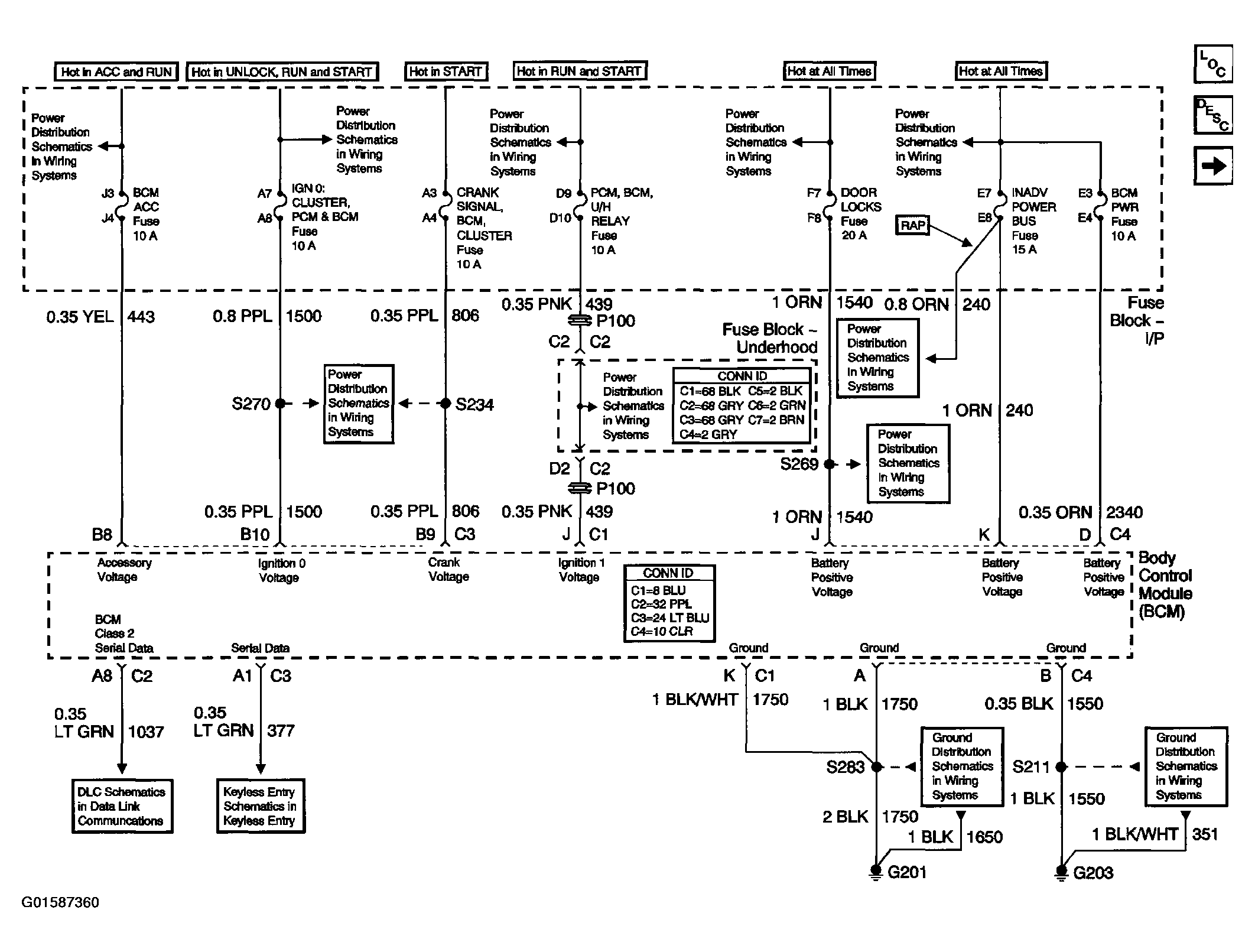

Fig 1: Body Control System Schematics (Power, Ground, And DLC)
G01587360Courtesy of GENERAL MOTORS CORP.
Fig 2: Body Control System Schematics (1 Of 2)
G01587361Courtesy of GENERAL MOTORS CORP.

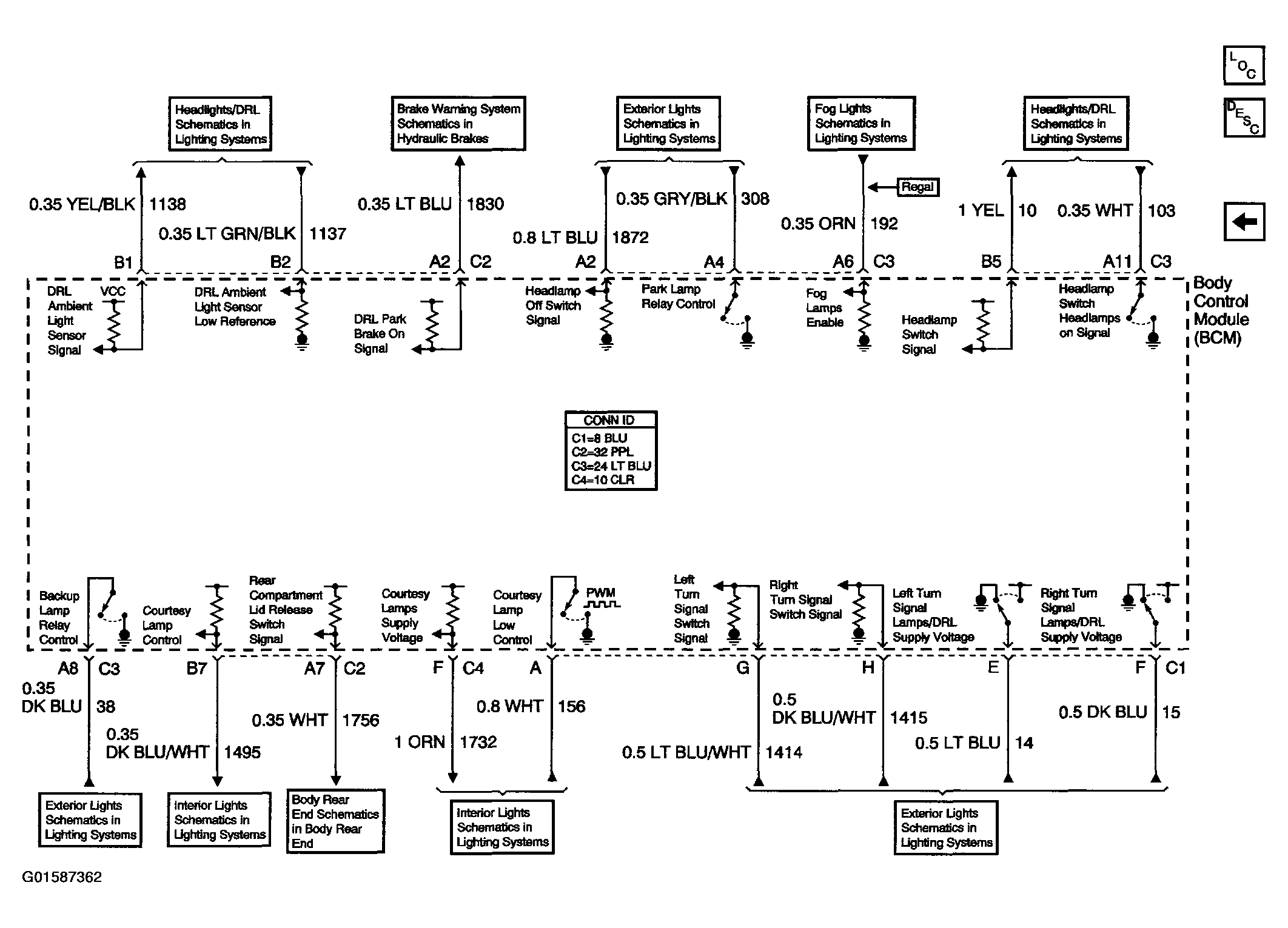

Fig 3: Body Control System Schematics (2 Of 2)
G01587362Courtesy of GENERAL MOTORS CORP.
