Vacuum Control Assembly Connector End View Terminal

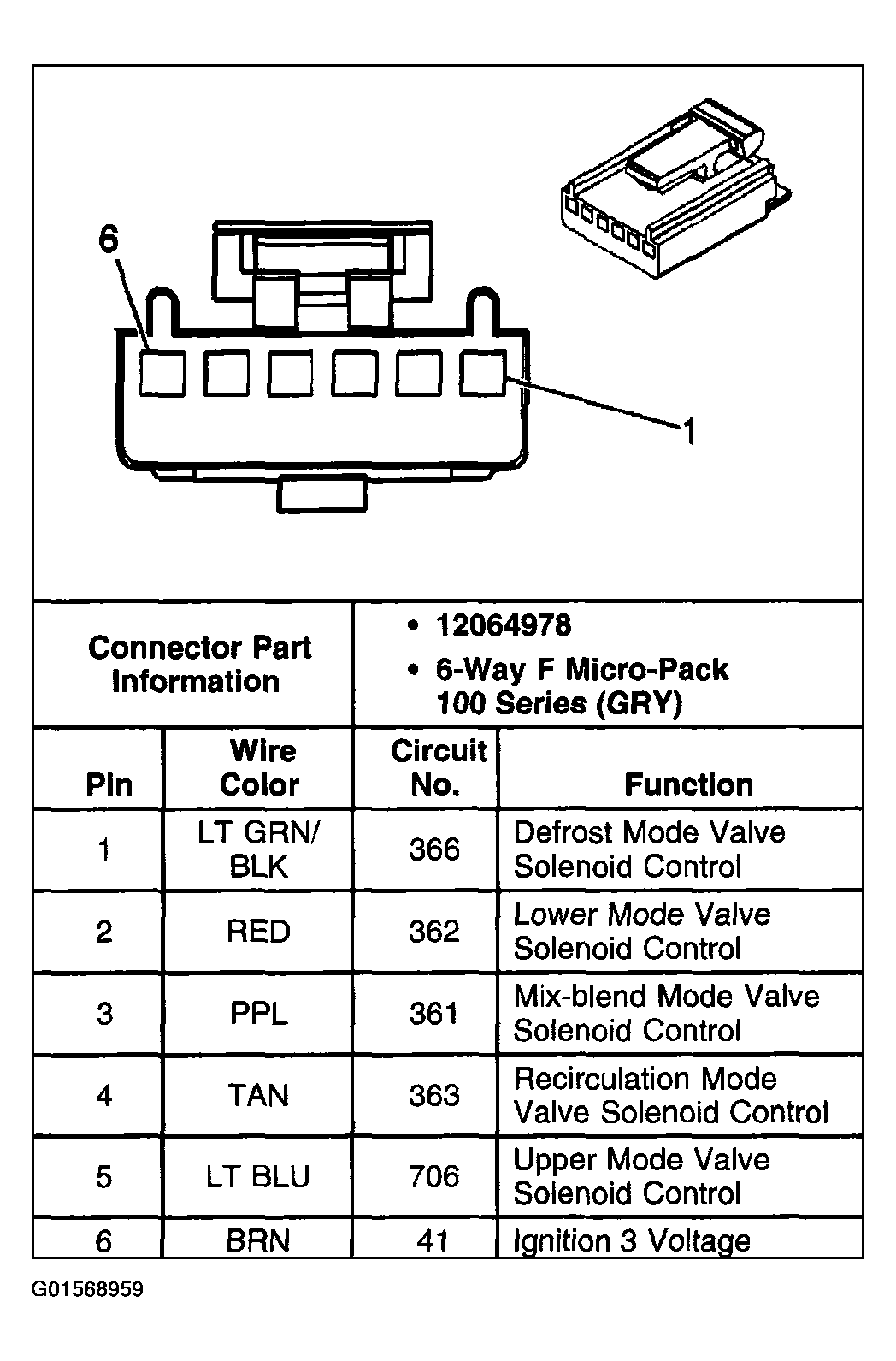

Fig 1: Vacuum Control Assembly Connector End View Terminal

G01568959

Courtesy of GENERAL MOTORS CORP.
