Identifying Input Speed Sensor Connector End View (Wiring Harness Side)

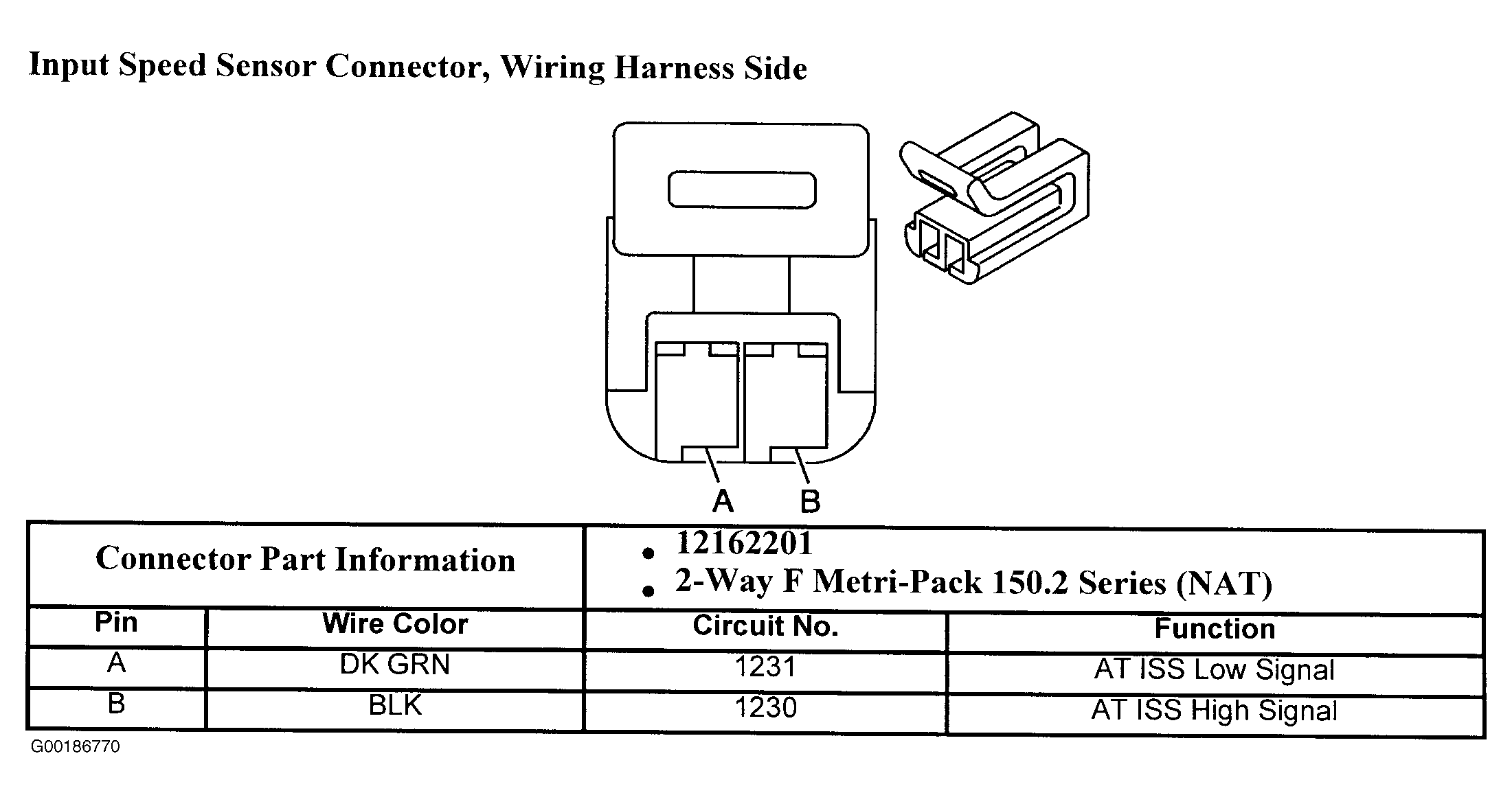

Fig 1: Identifying Input Speed Sensor Connector End View (Wiring Harness Side)

G00186770

Courtesy of GENERAL MOTORS CORP.
