HVAC Control Module, C1 Connector End View Terminal

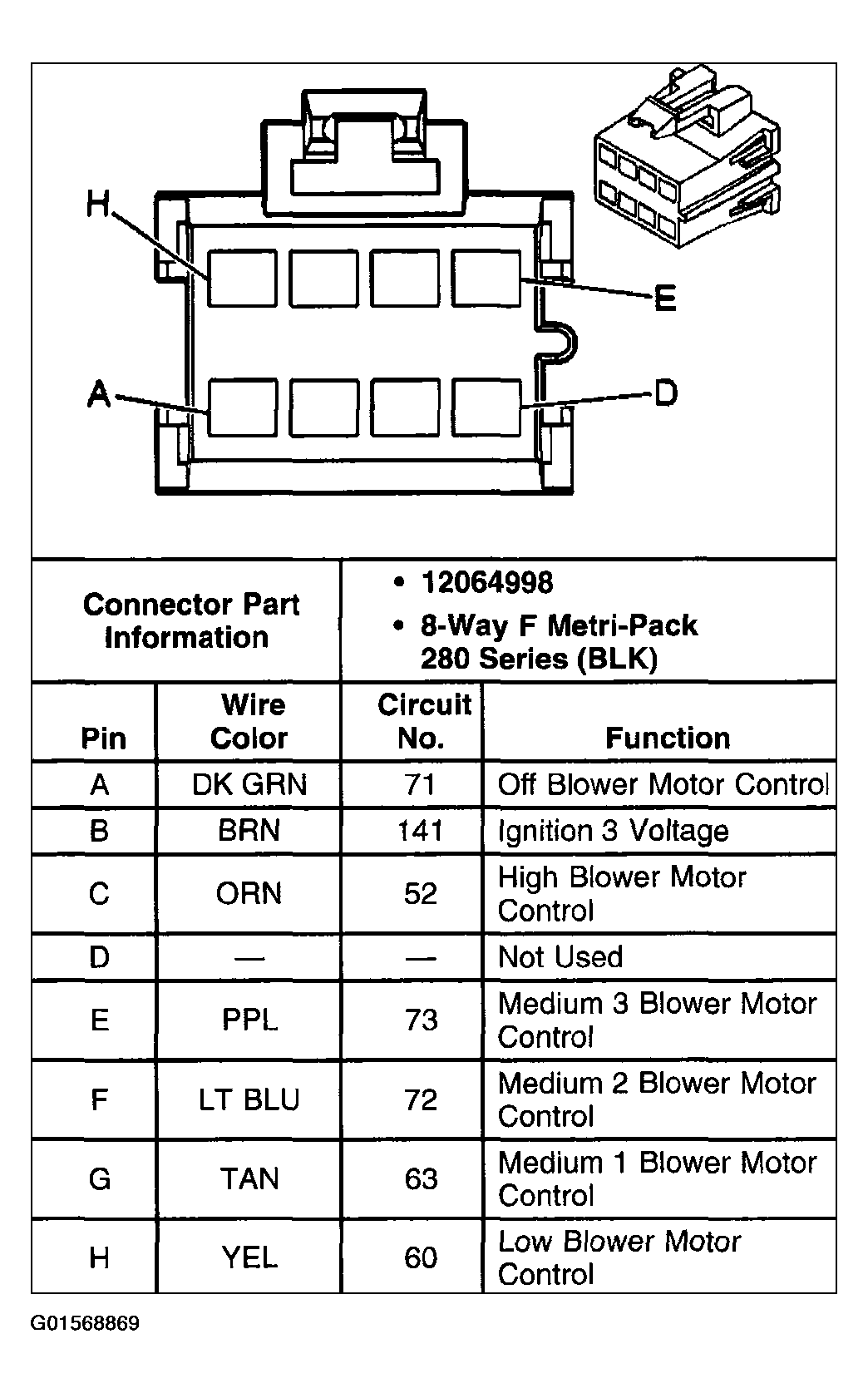

Fig 1: HVAC Control Module, C1 Connector End View Terminal

G01568869

Courtesy of GENERAL MOTORS CORP.
