HVAC Control Module Connector End View Terminal (2 Of 2)

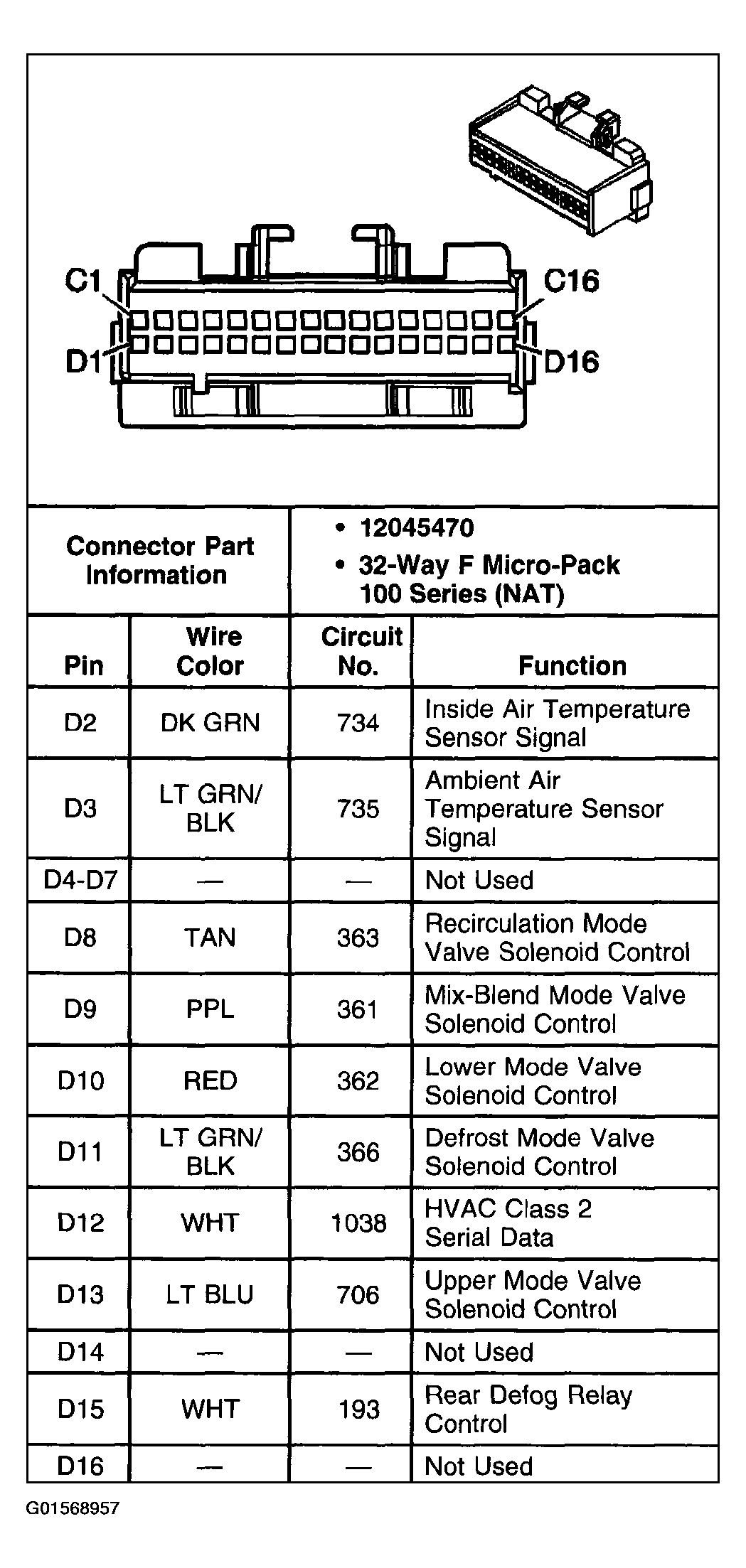

Fig 1: HVAC Control Module Connector End View Terminal (2 Of 2)

G01568957

Courtesy of GENERAL MOTORS CORP.
