Body Control Module Connector End View (BCM) C4

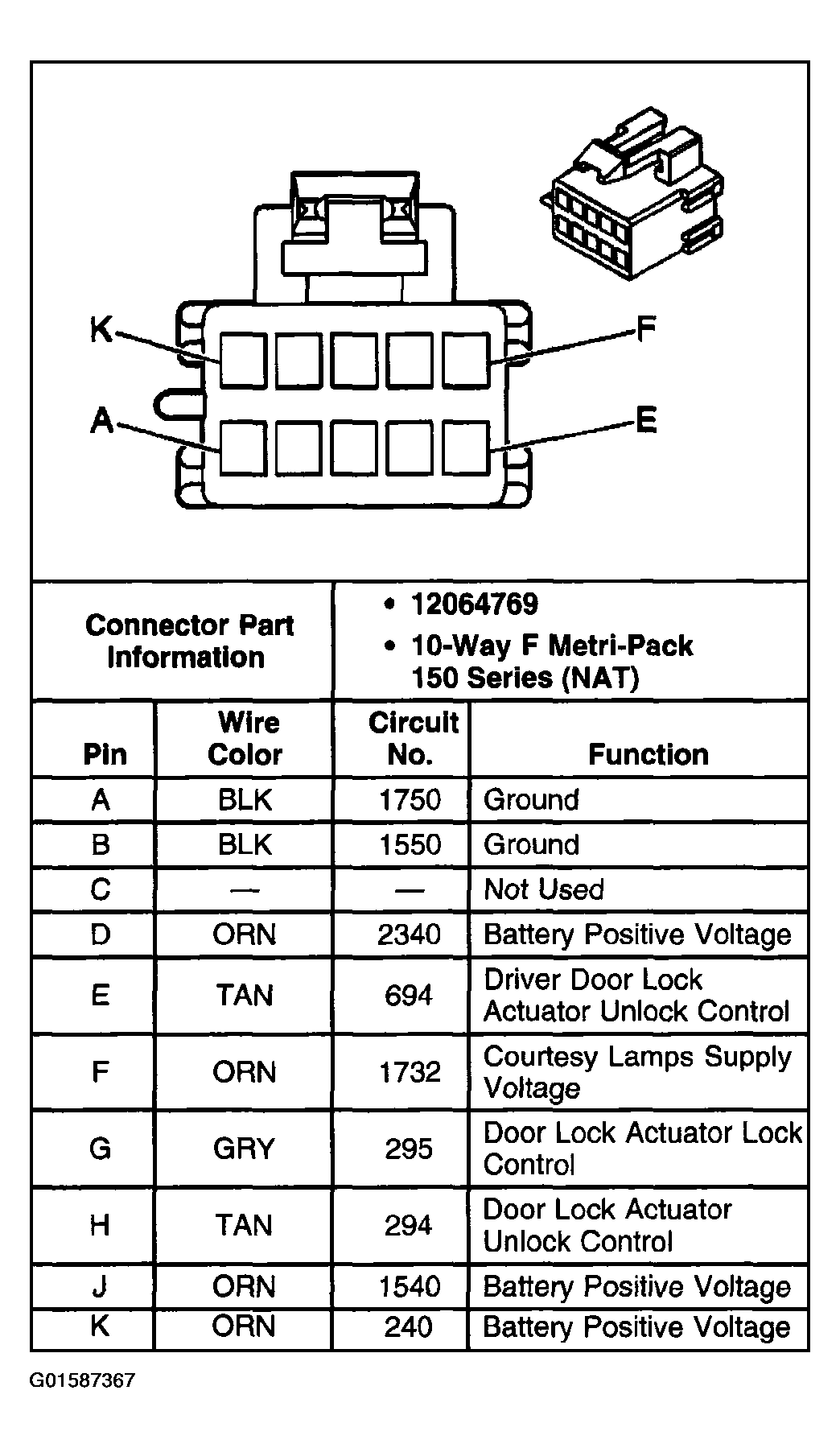

Fig 1: Body Control Module Connector End View (BCM) C4

G01587367

Courtesy of GENERAL MOTORS CORP.
