Body Control Module Connector End View (BCM) C3

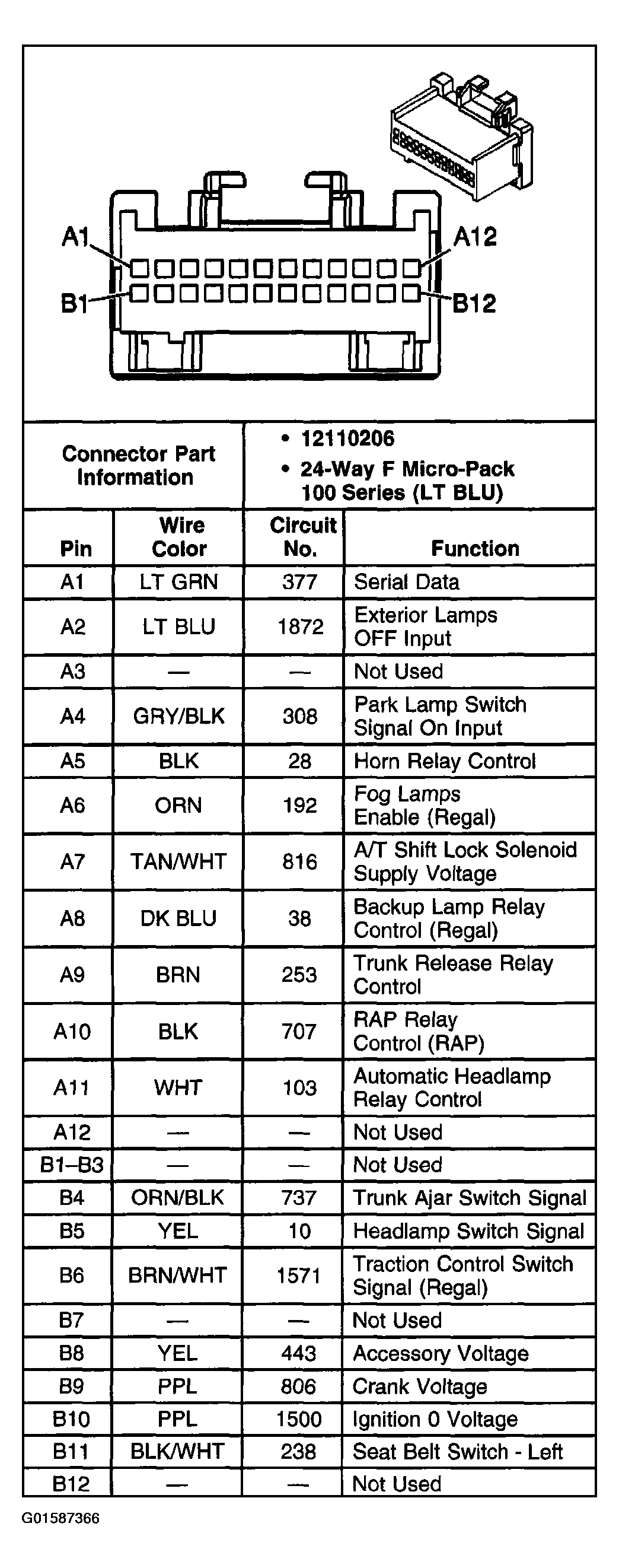

Fig 1: Body Control Module Connector End View (BCM) C3

G01587366

Courtesy of GENERAL MOTORS CORP.
