Home >> Buick >> 2003 >> Century Base >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Identification (3.1L) >> Body Control Module Connector End View (BCM) C2

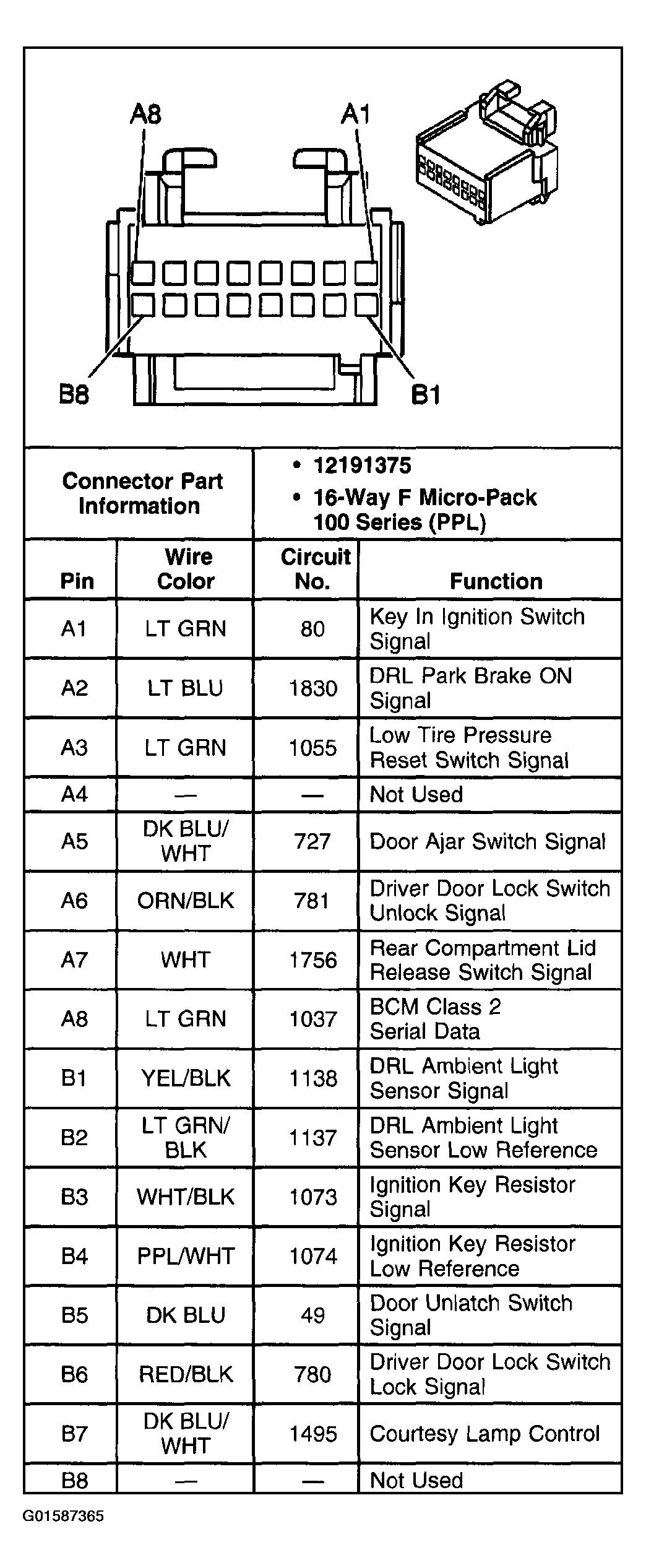

Body Control Module Connector End View (BCM) C2

Fig 1: Body Control Module Connector End View (BCM) C2

G01587365

Courtesy of GENERAL MOTORS CORP.
