Body Control Module Connector End View (BCM) C1

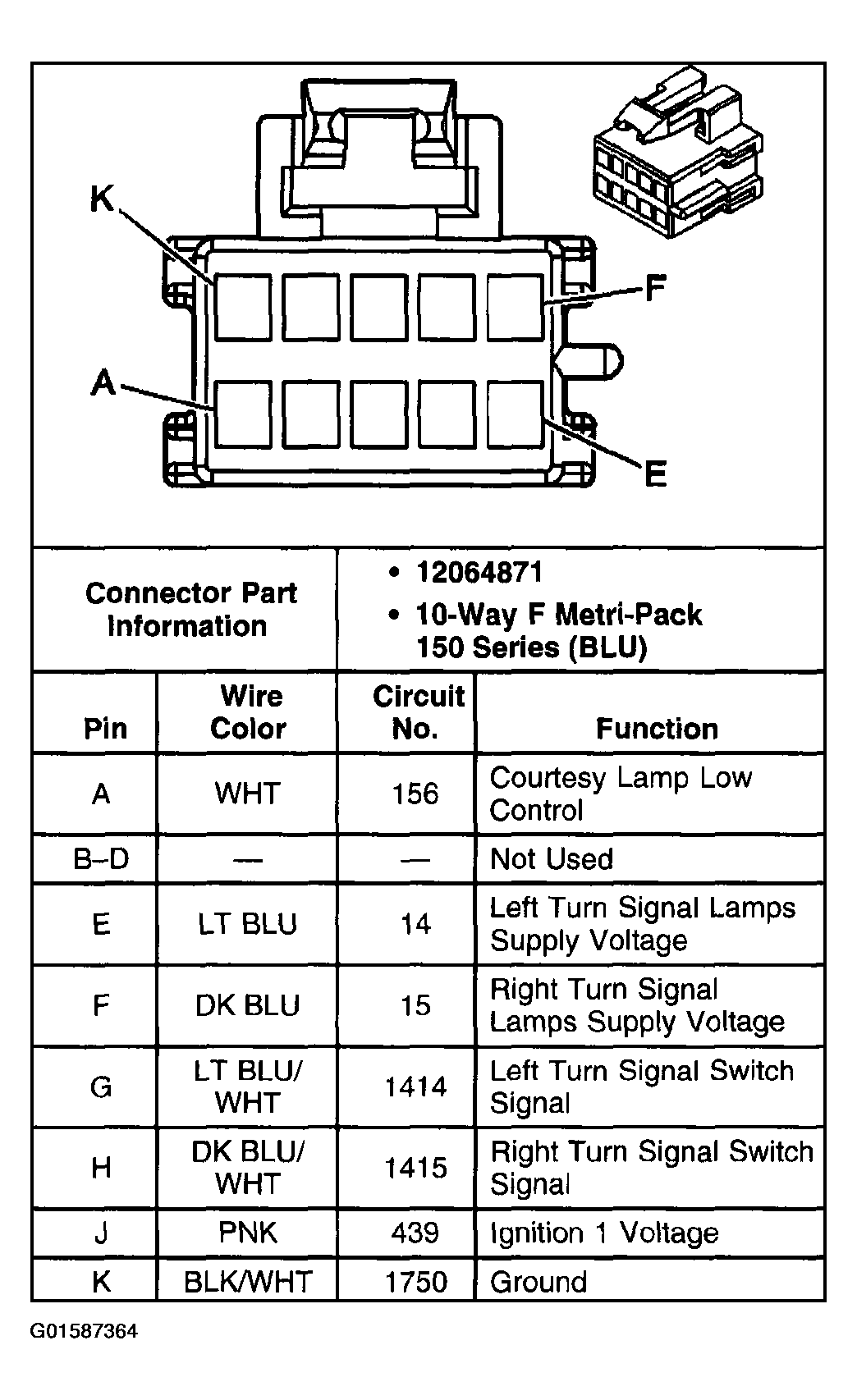

Fig 1: Body Control Module Connector End View (BCM) C1

G01587364

Courtesy of GENERAL MOTORS CORP.
