Vehicle Communications Interface Module C1 Connector End View

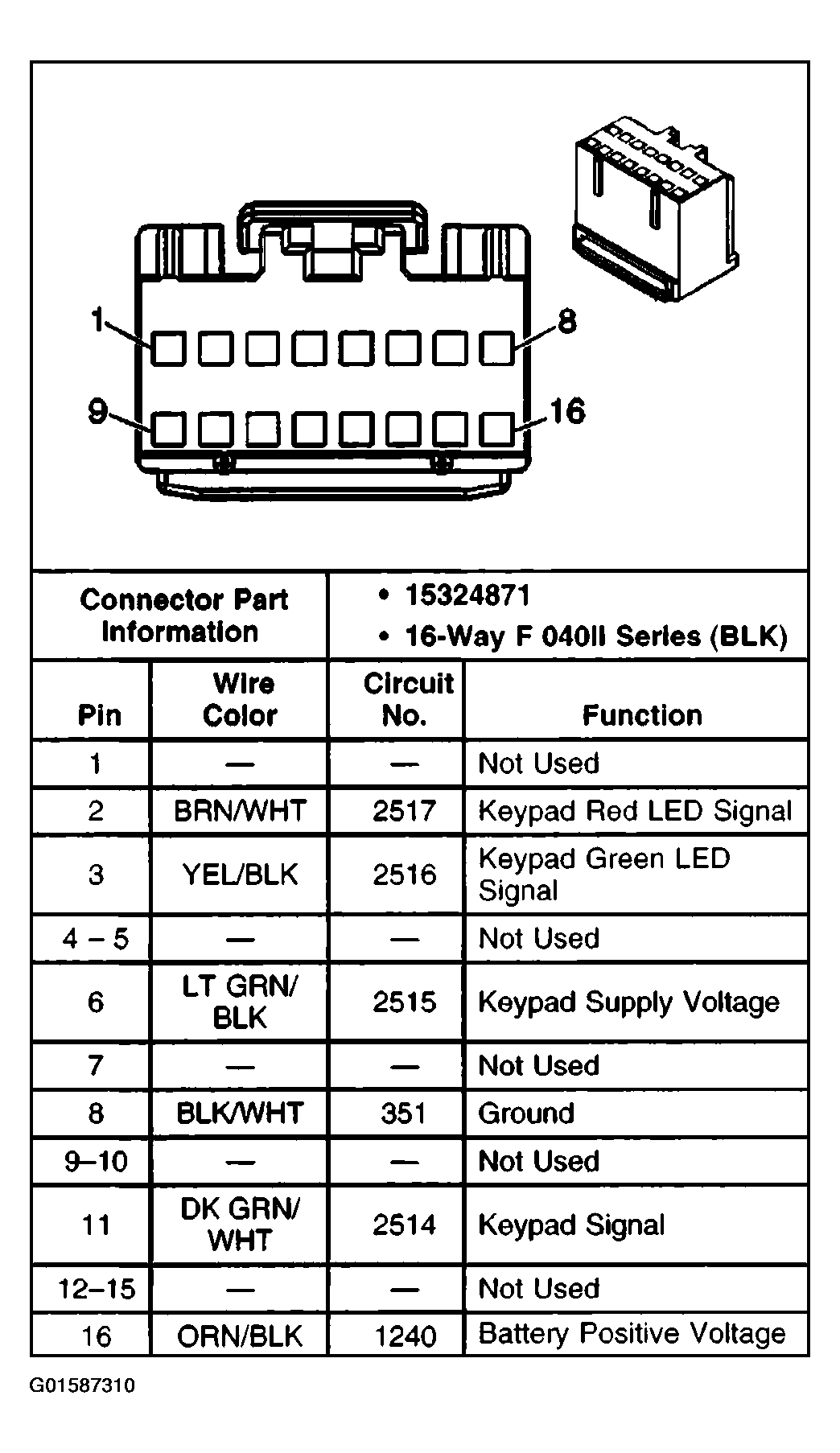

Fig 1: Vehicle Communications Interface Module C1 Connector End View

G01587310

Courtesy of GENERAL MOTORS CORP.
