Heated Seat Control Module - Driver (KA1) Connector End View

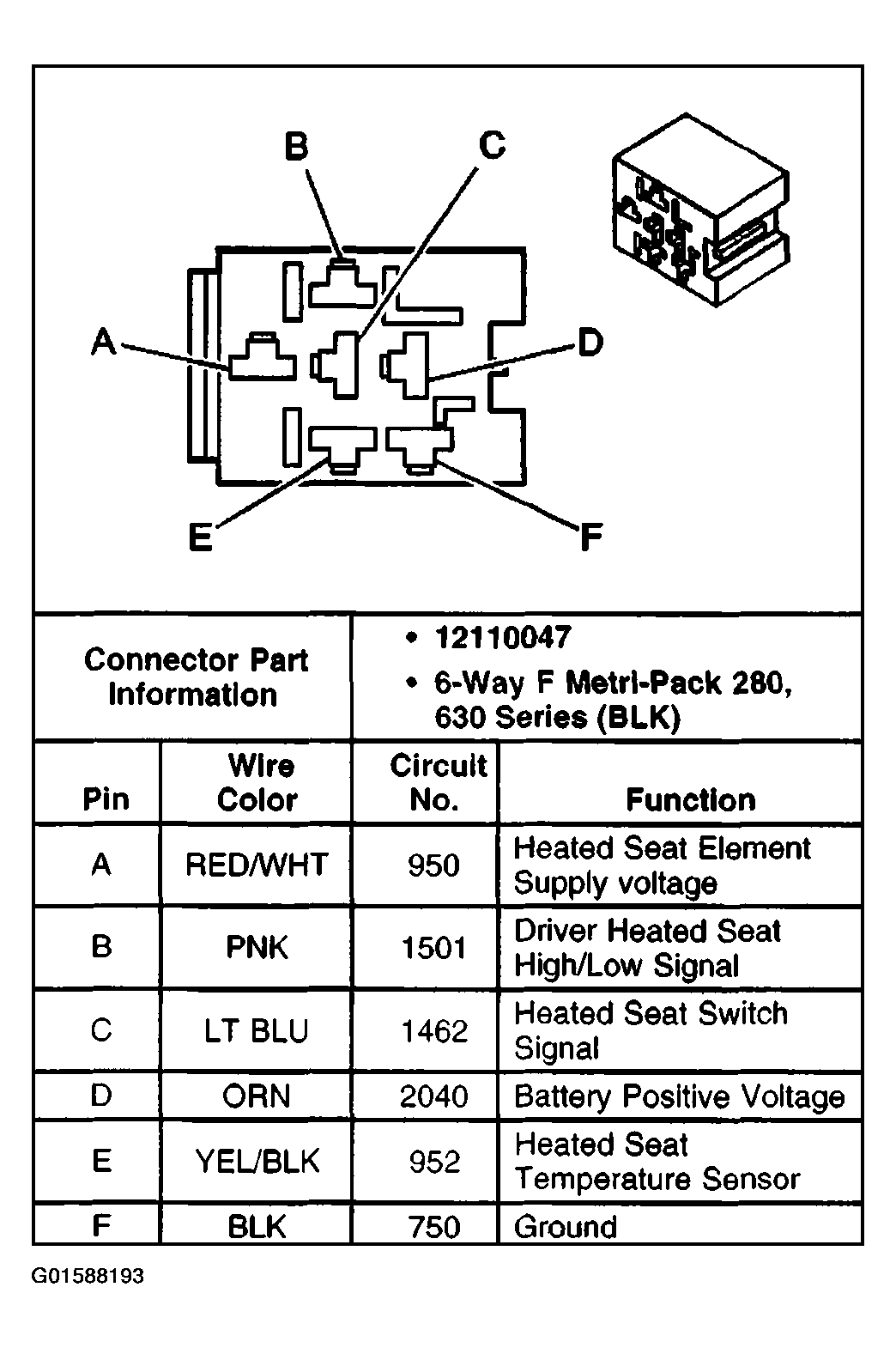

Fig 1: Heated Seat Control Module - Driver (KA1) Connector End View

G01588193

Courtesy of GENERAL MOTORS CORP.
