Powertrain Control Module: Removal

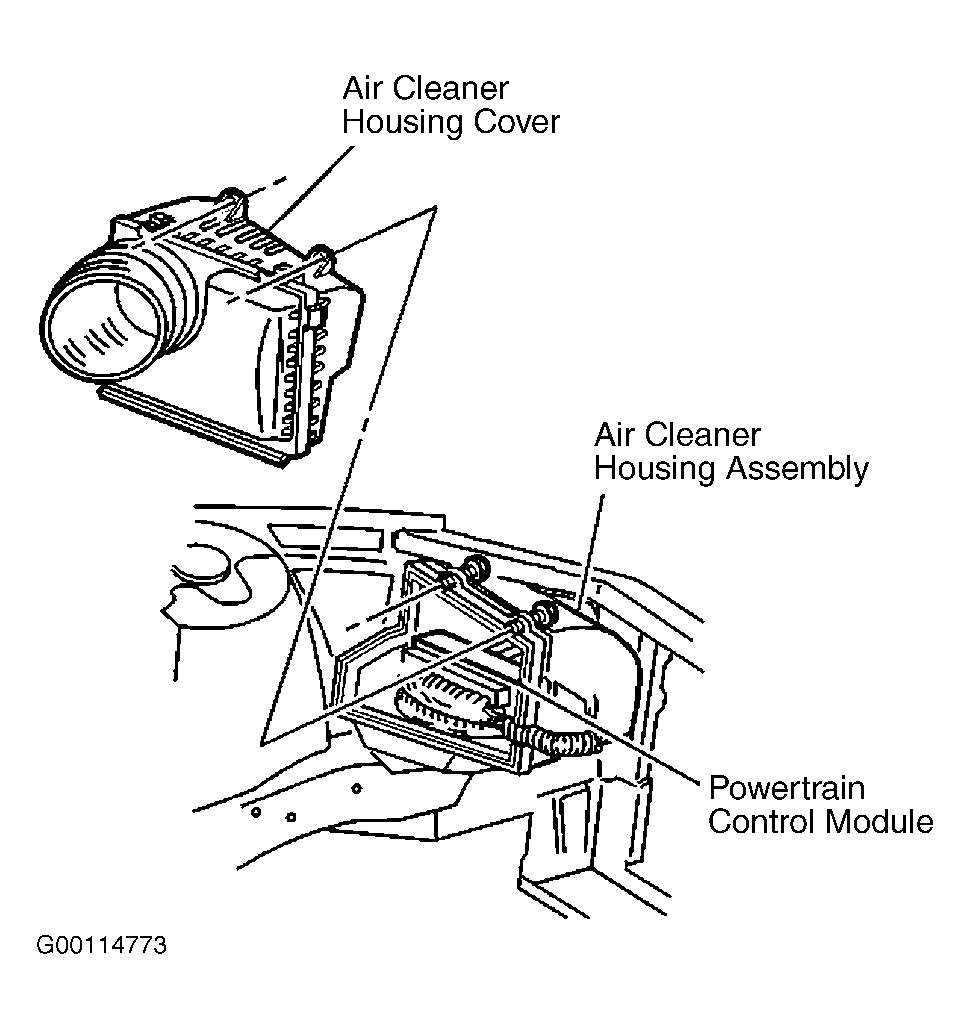

PCM is located inside air cleaner housing assembly. See Figure. Disconnect the negative battery cable. Remove the screws from the air cleaner top cover. Remove the air cleaner top cover. Disconnect the harness connectors from the PCM. Remove the PCM.
