Identifying Ignition Control Module Harness Connector End View C1 Terminals - Century

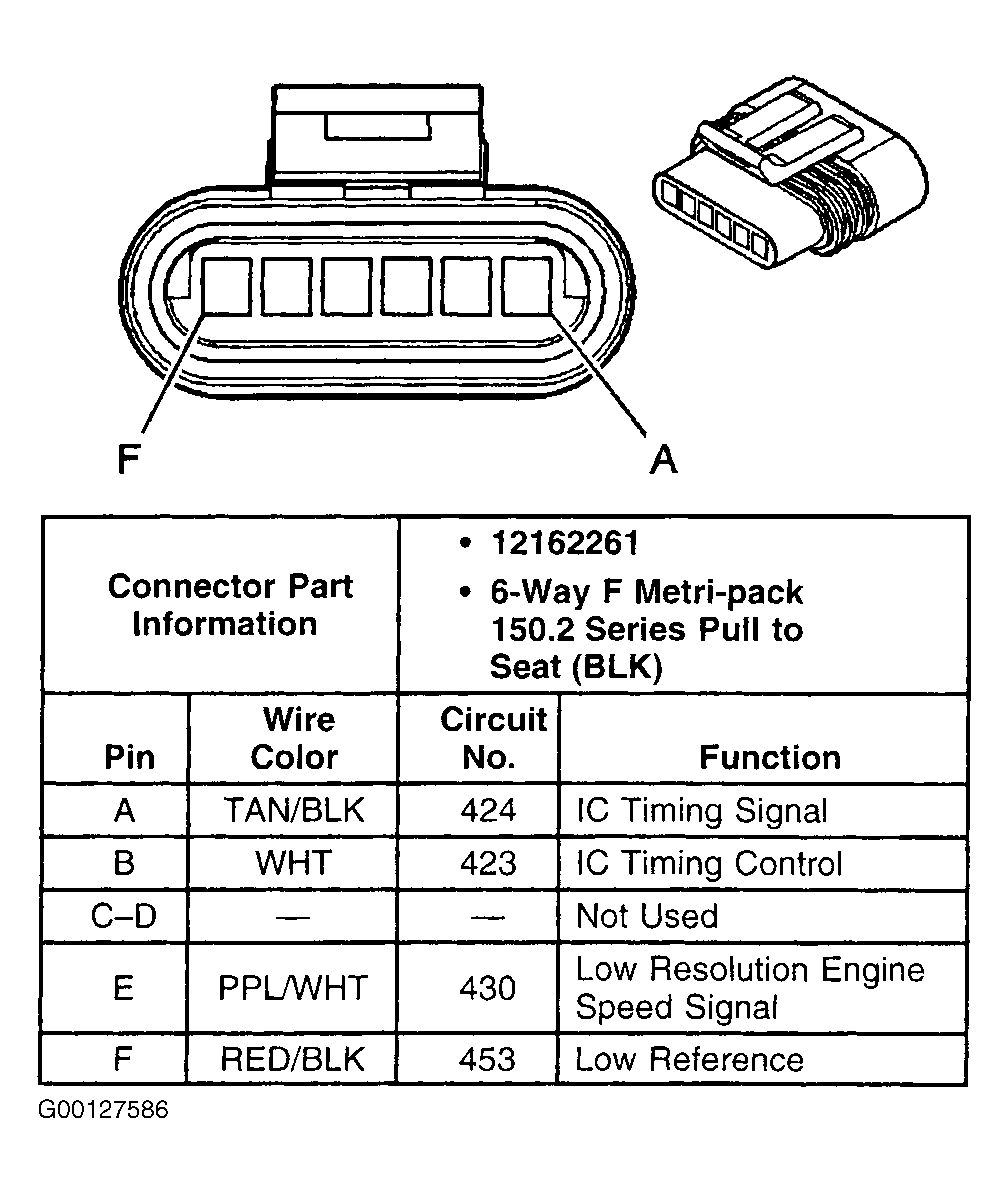

Fig 1: Identifying Ignition Control Module Harness Connector End View C1 Terminals - Century
G00127586Courtesy of GENERAL MOTORS CORP.
