Steering Wheel and Column Connector End Views

Fig 1: A/T Shift Lock Control Switch (Regal) Connector End View
G01569208Courtesy of GENERAL MOTORS CORP.

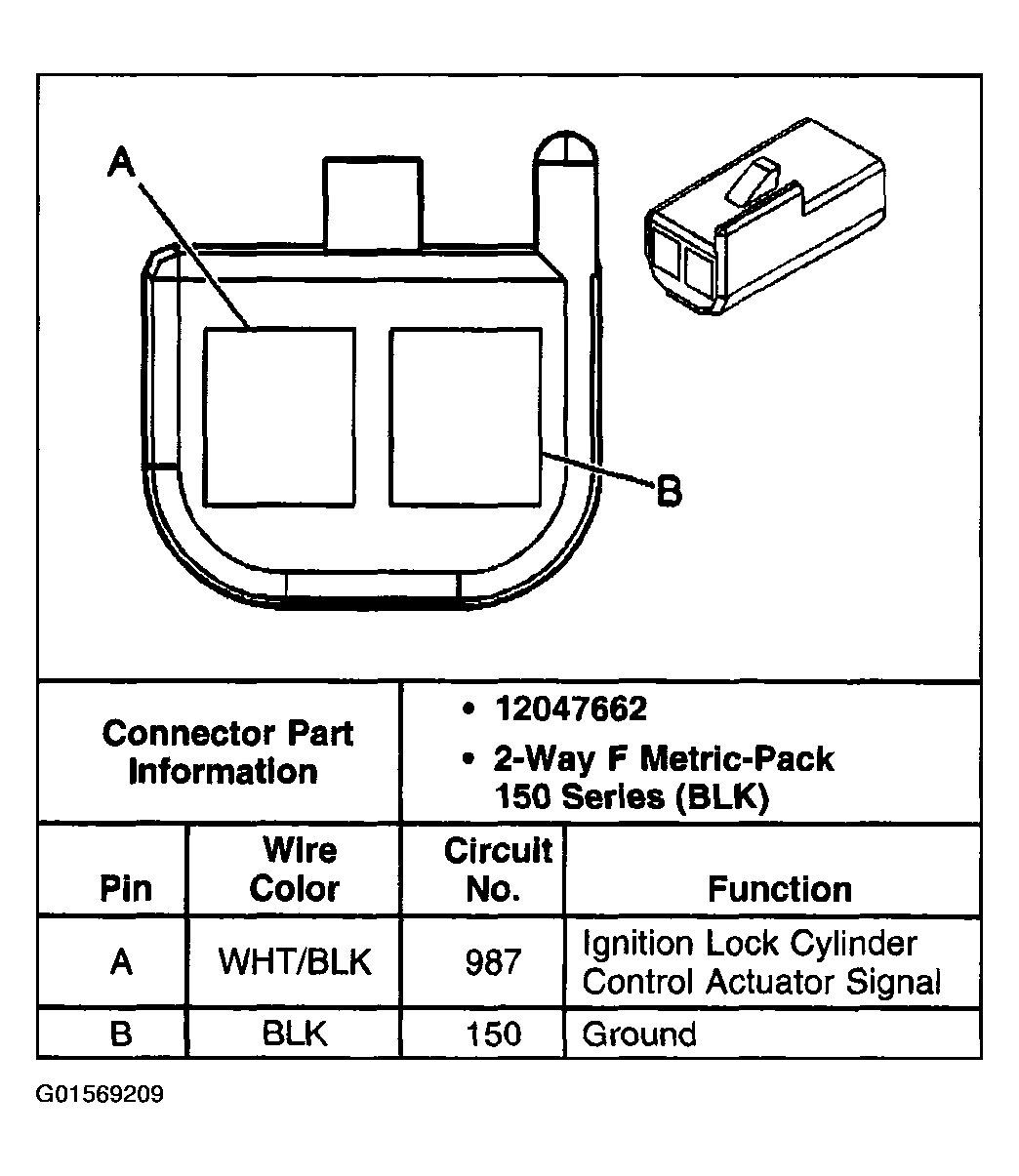

Fig 2: Ignition Lock Cylinder Control Actuator (Regal) Connector End View
G01569209Courtesy of GENERAL MOTORS CORP.
