Steering Wheel and Column Component Views

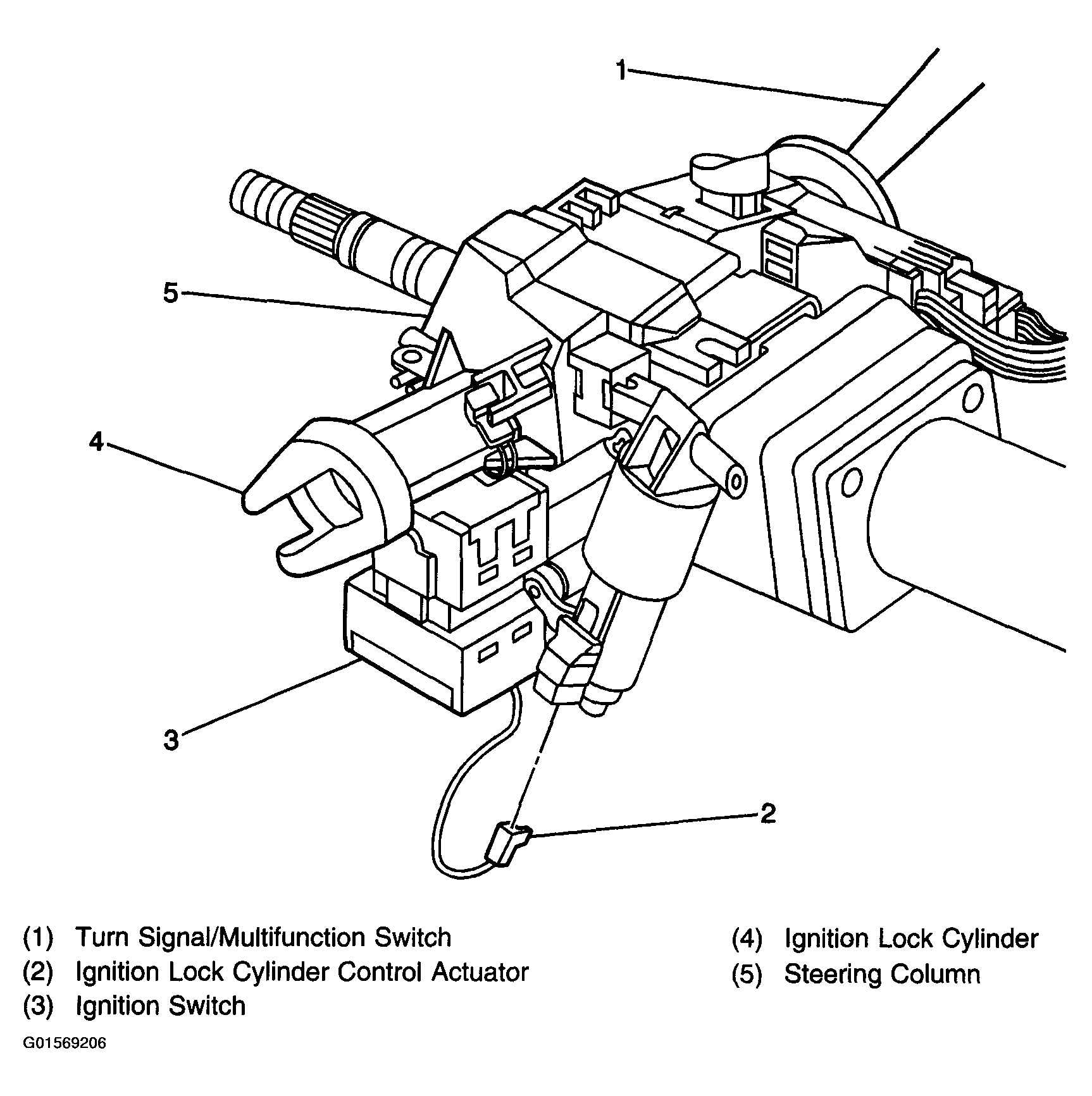

Fig 1: Steering Column Component View (Regal)

G01569206

Courtesy of GENERAL MOTORS CORP.

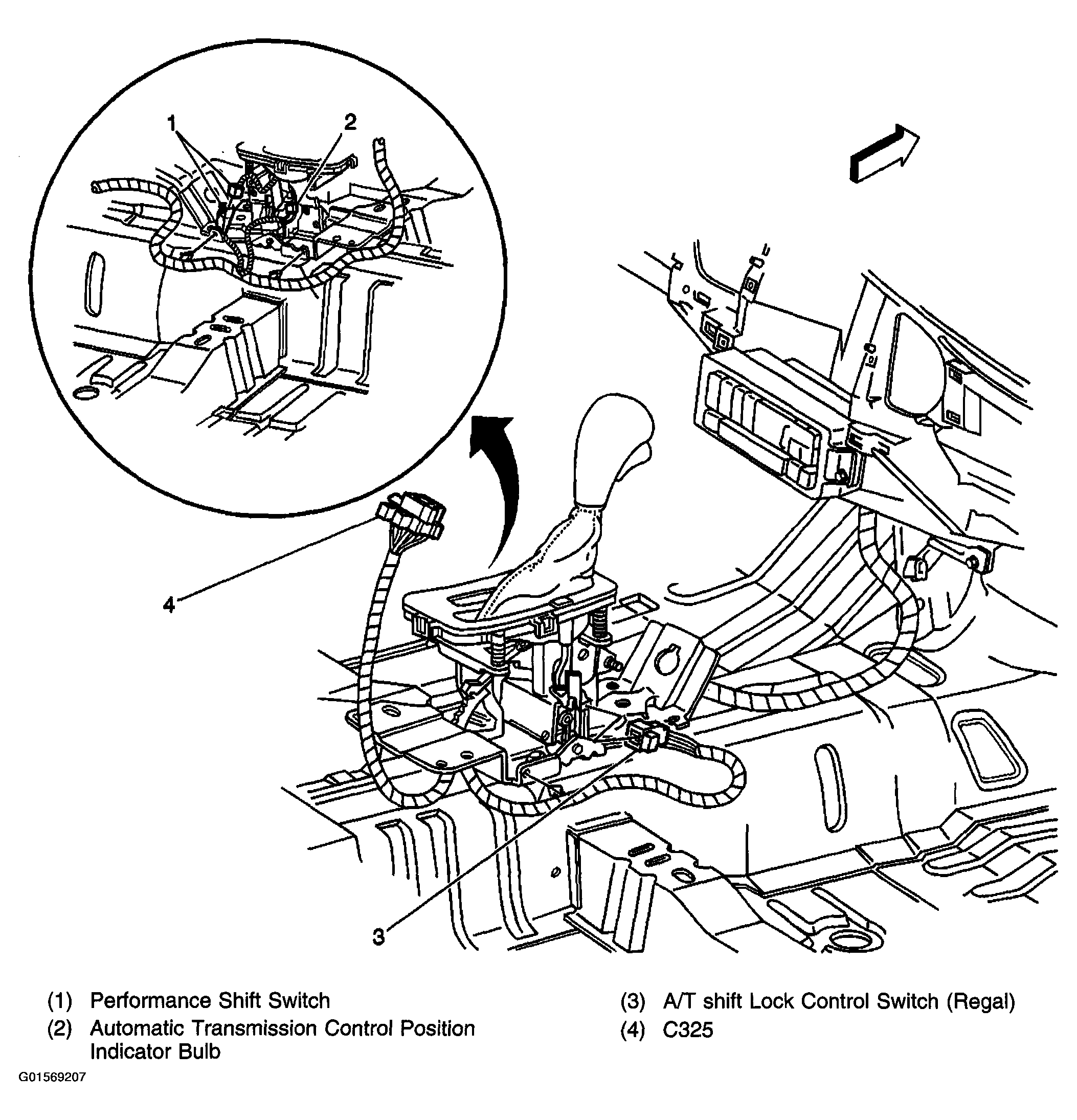

Fig 2: Center of Floor Console Component View

G01569207

Courtesy of GENERAL MOTORS CORP.
