Steering Column Disassembled View (Column Shift)

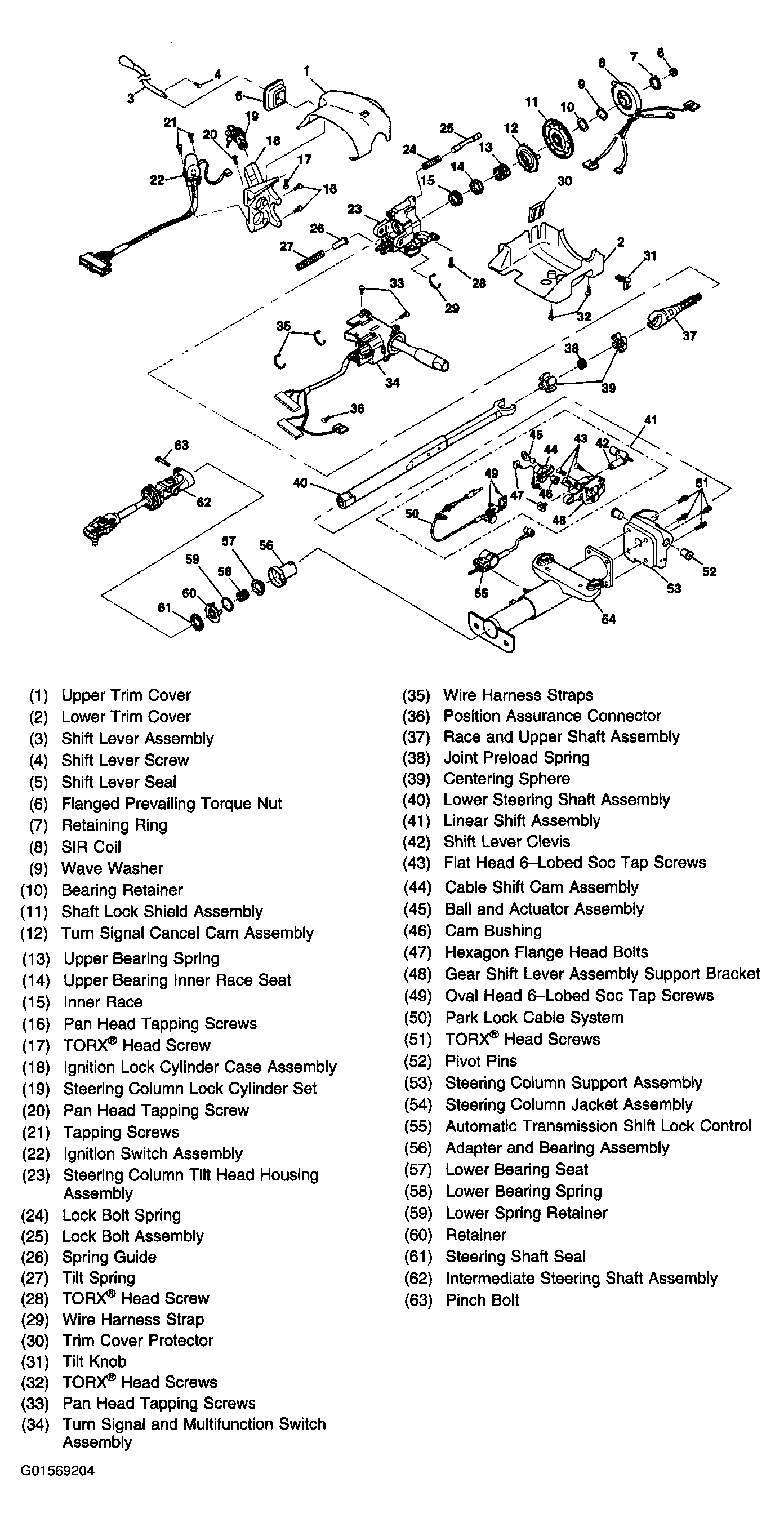

Fig 1: Exploded View Of Tilt Steering Column, Column Shift

G01569204

Courtesy of GENERAL MOTORS CORP.
