Installation Procedure

  1. Position the wiper drive system module to the vehicle.
  2. Connect the wiper motor electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper drive system screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

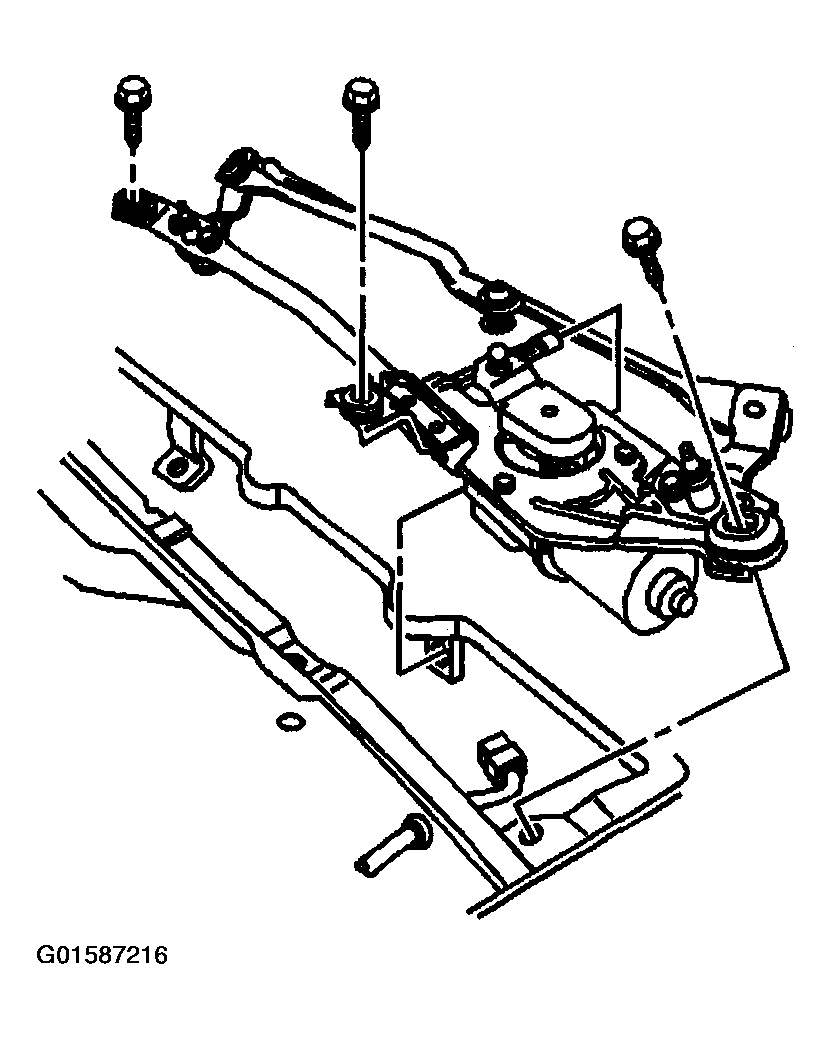

    Fig 1: Installing Wiper Drive System Module & Screws
    G01587216Courtesy of GENERAL MOTORS CORP.
  4. Using the J 39529,  Install the wiper transmission to the wiper motor crank arm.
  5. Install the wiper motor water deflector. Refer to WIPER MOTOR WATER DEFLECTOR REPLACEMENT  .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  7. Inspect the wipers for proper operation.
