Wiper/Washer System Connector End Views

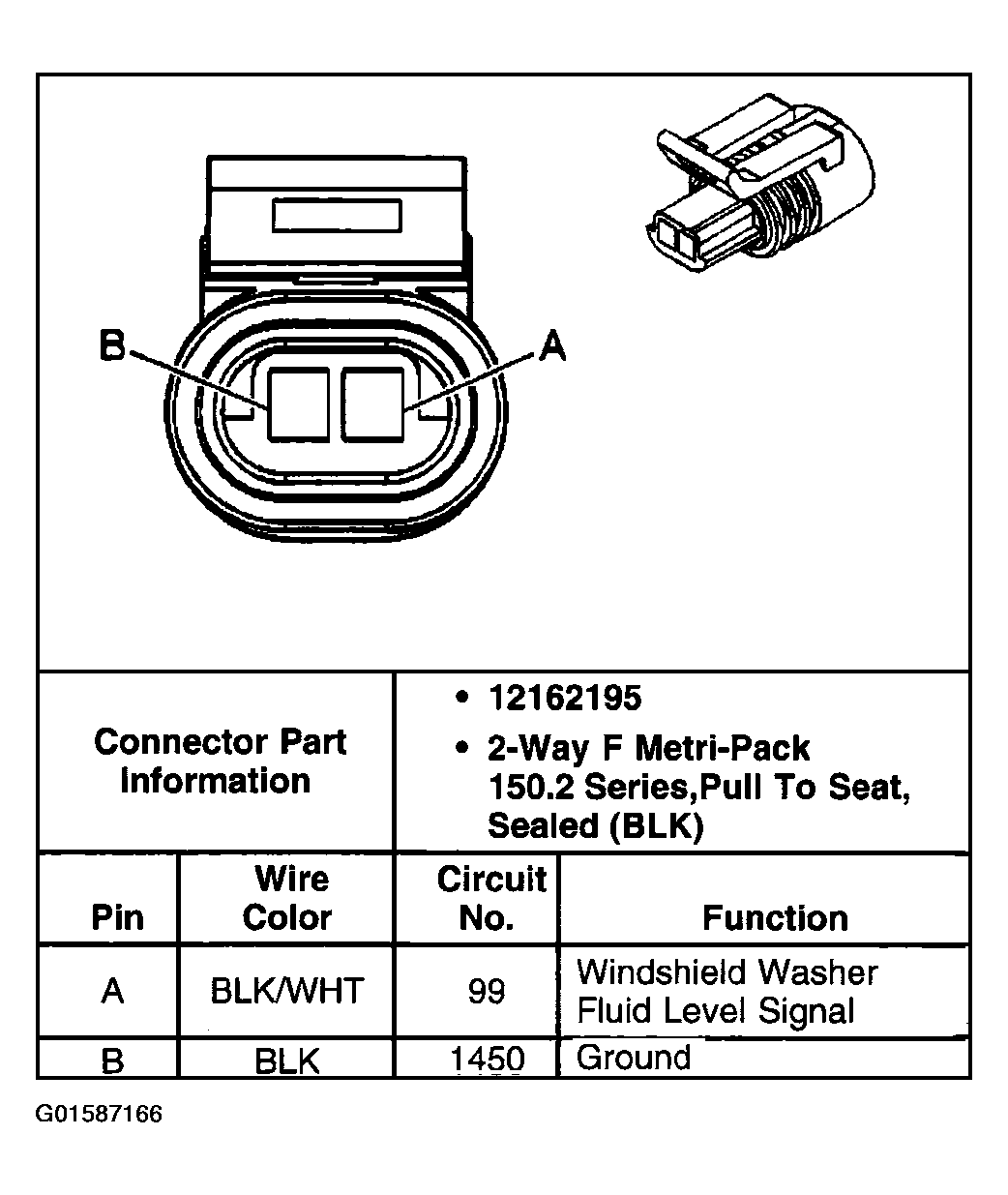

Fig 1: Windshield Washer Fluid Level Switch Connector

Courtesy of GENERAL MOTORS CORP.

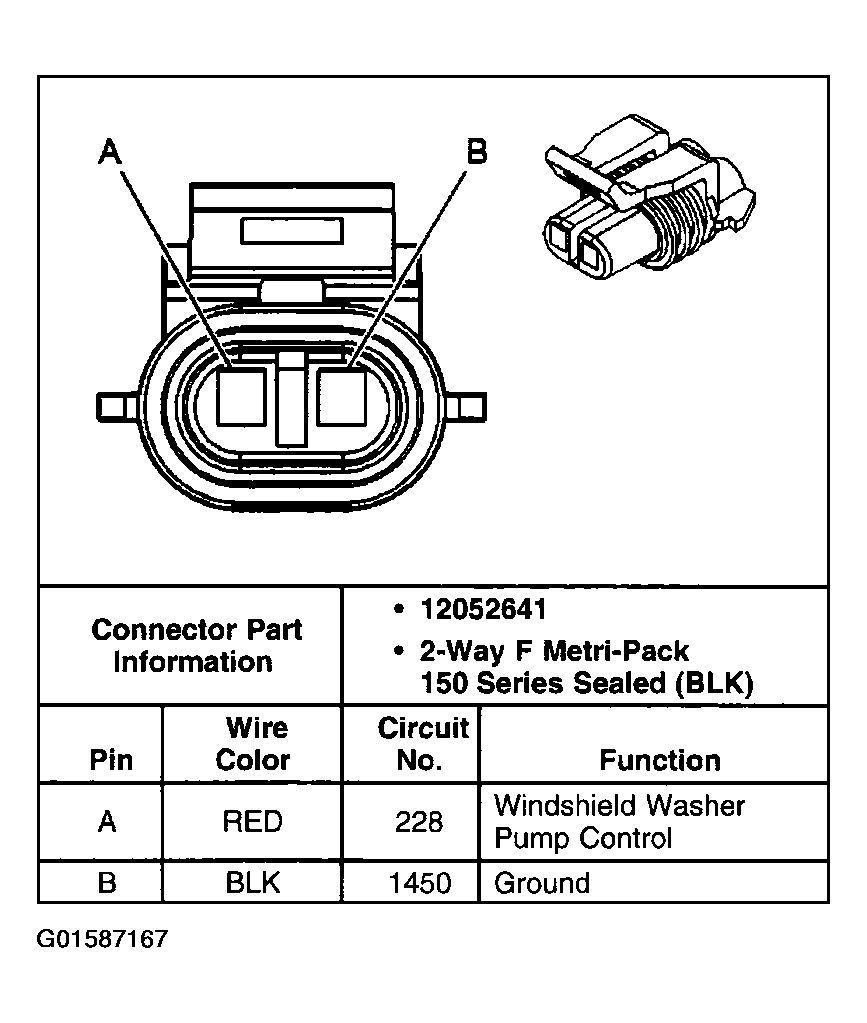

Fig 2: Windshield Washer Fluid Pump Connector

Courtesy of GENERAL MOTORS CORP.

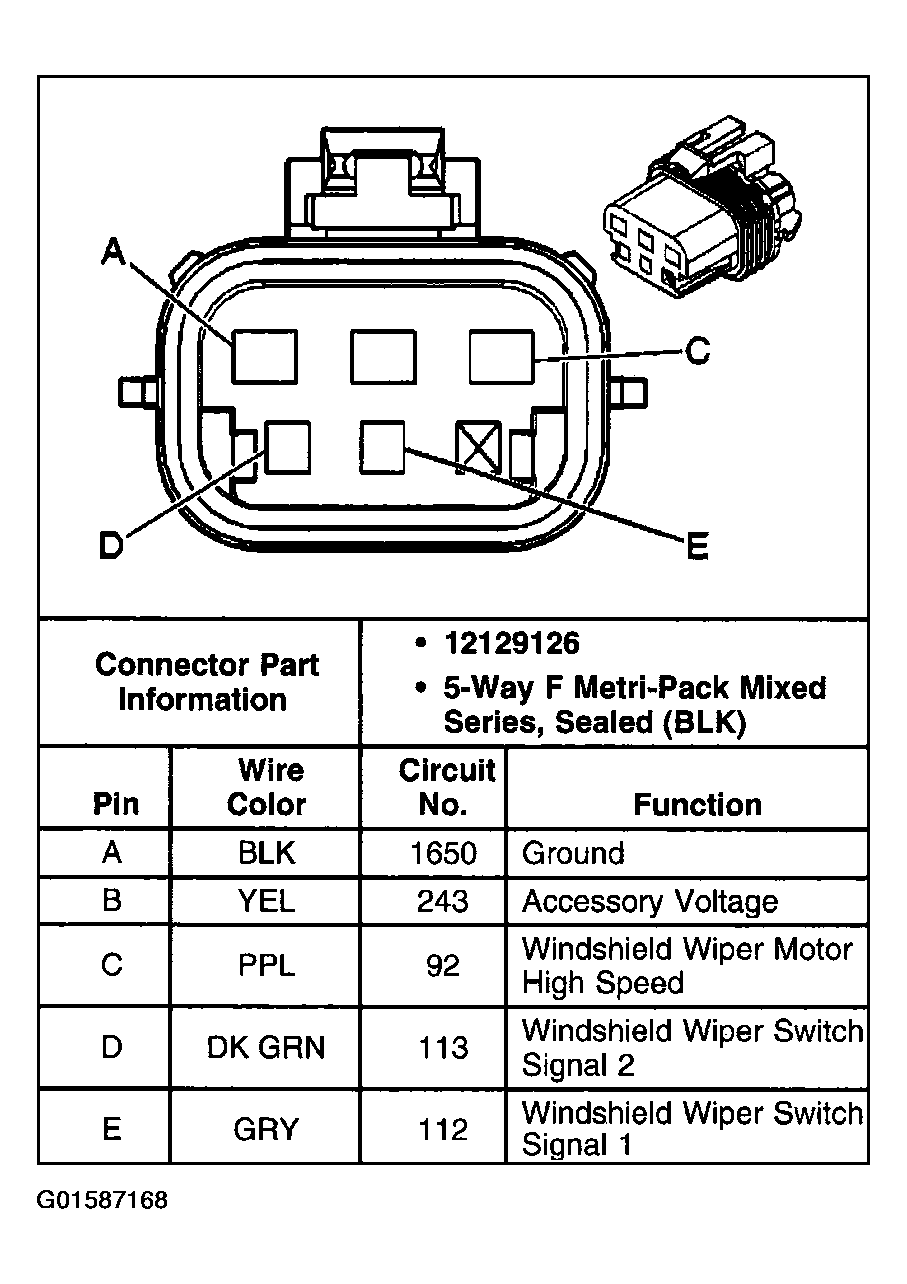

Fig 3: Windshield Wiper Motor Connector

Courtesy of GENERAL MOTORS CORP.
