Wiper/Washer System Component Views

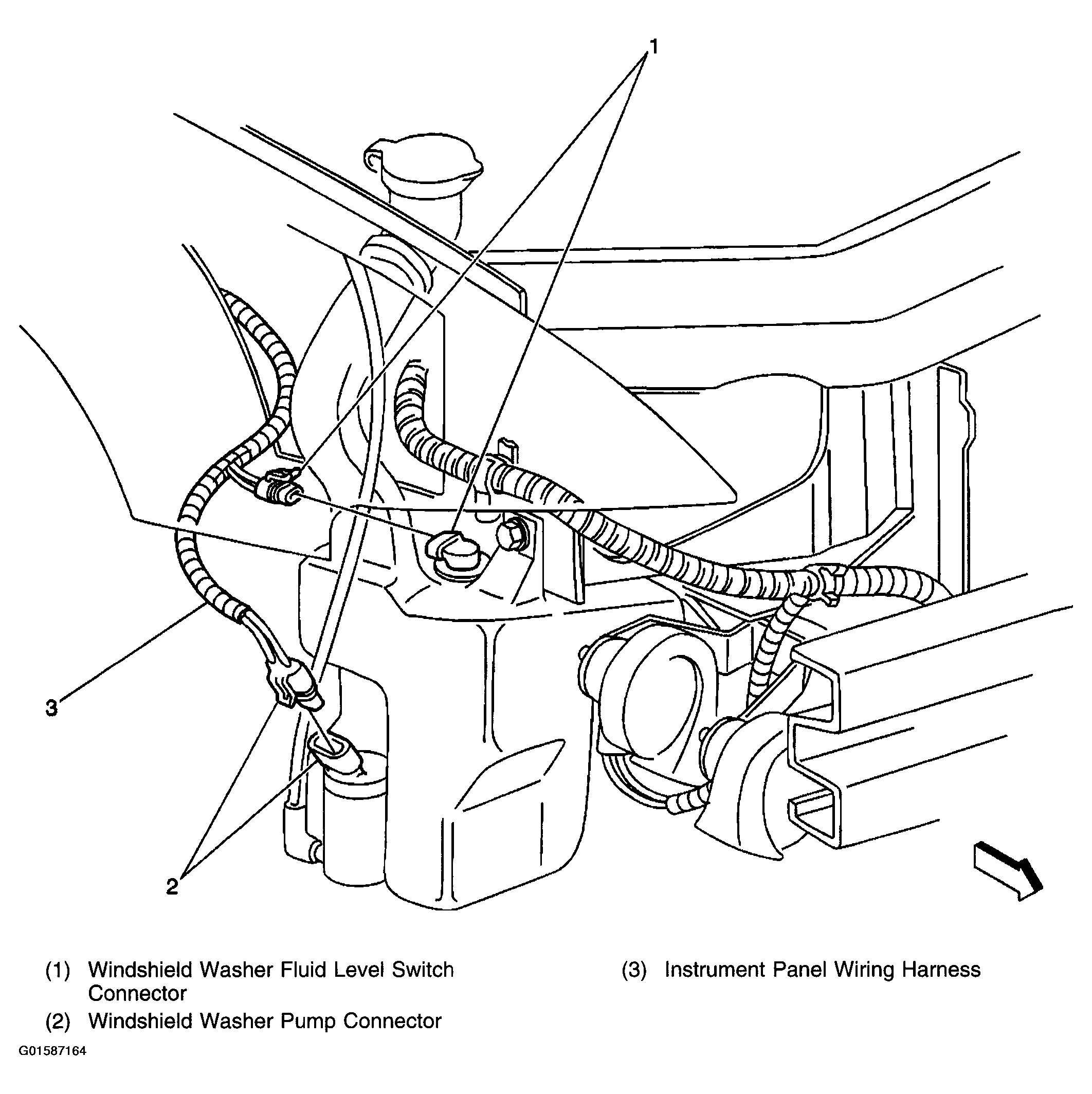

Fig 1: Component Windshield Washer Components - Inside Right Front Fender Liner
G01587164Courtesy of GENERAL MOTORS CORP.

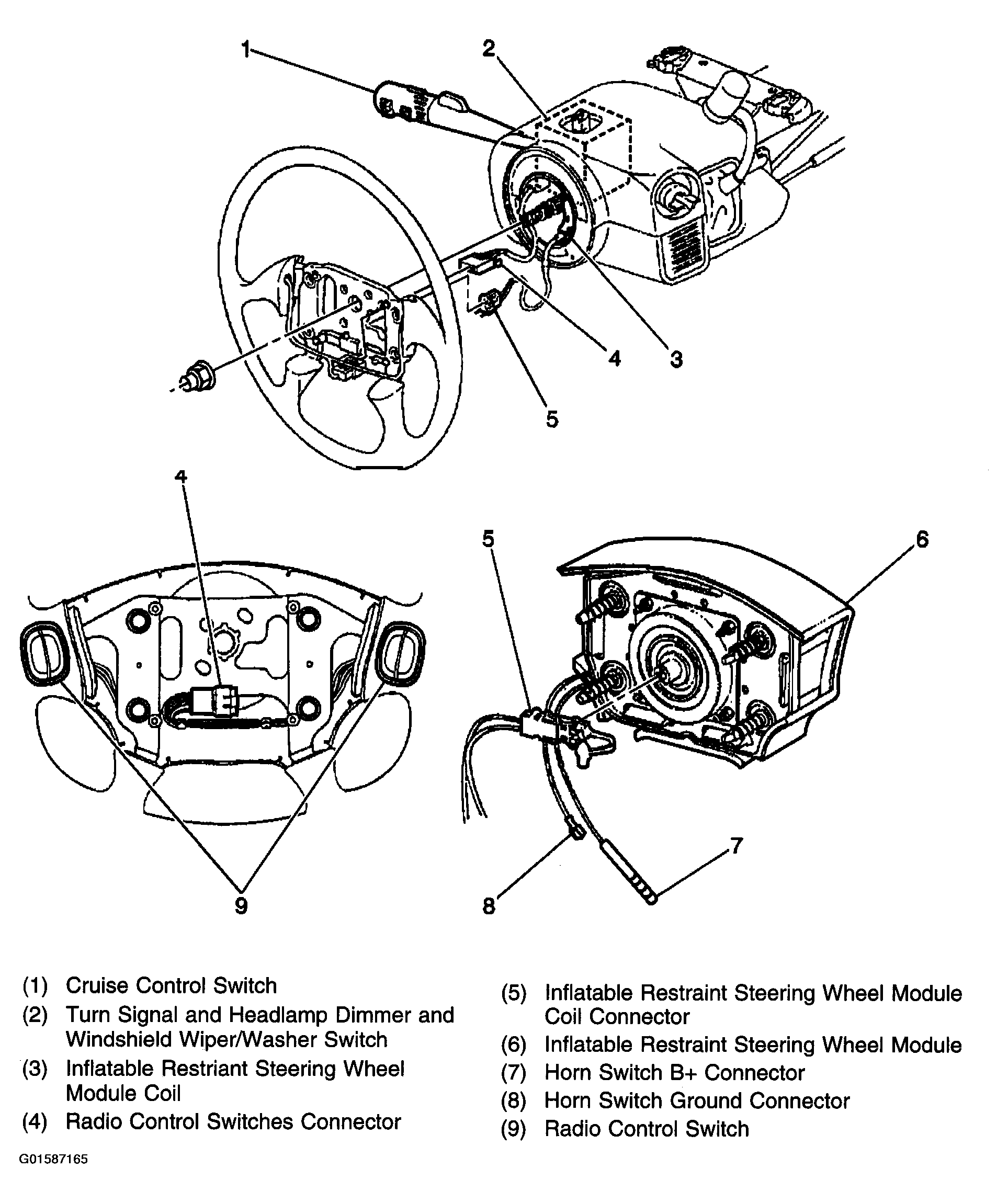

Fig 2: Steering Wheel Components
G01587165Courtesy of GENERAL MOTORS CORP.
